Operation
Use with AllSync ® Masters

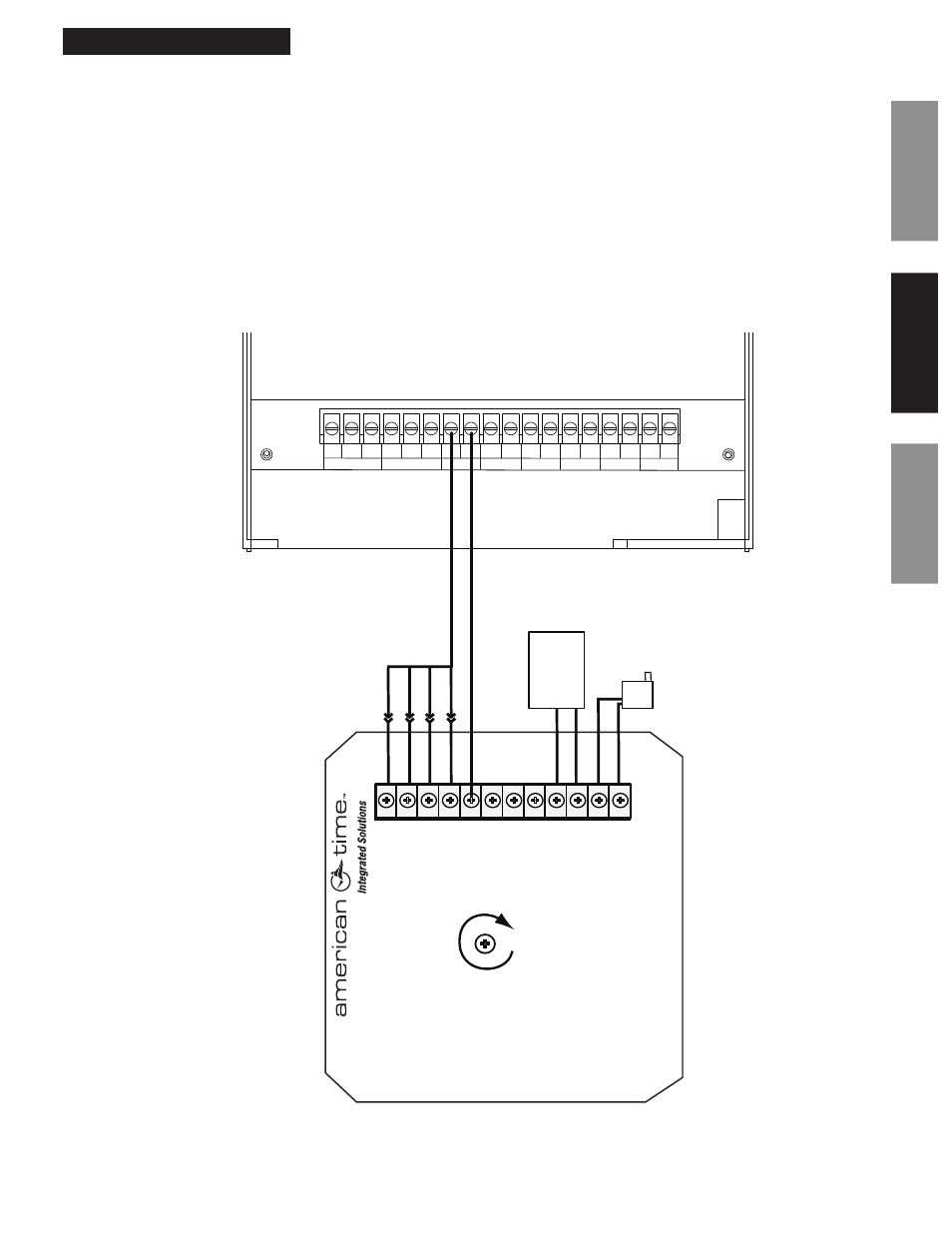

The tone generator can be easily triggered by an AllSync Master. The figure below shows one way of
wiring the tone generator to the master.
n
Note: See the AllSync Installation Manual before installation. Also, verify that the master you have
has the bell circuit option.
Bottom of the AllSync Master
NO
CLOCK 1 CLOCK 2 BELL 1 BELL 2 BELL 3 BELL 4 BELL 5 BELL 6
C NC NO C NC NO C NO C NO C NO C NO C NO C
GAIN
T1 T2 T3 T4
PA/AMP
IN COM
Red (+) Blk (-)
COM COM
SPKR SPKR
AUDIO IN
AUDIO OUT
(+) (-)
12VDC
Multi-T
one Generator
(500 mA max)
