ENVISION LOW SILL CONSOLE INSTALLATION MANUAL

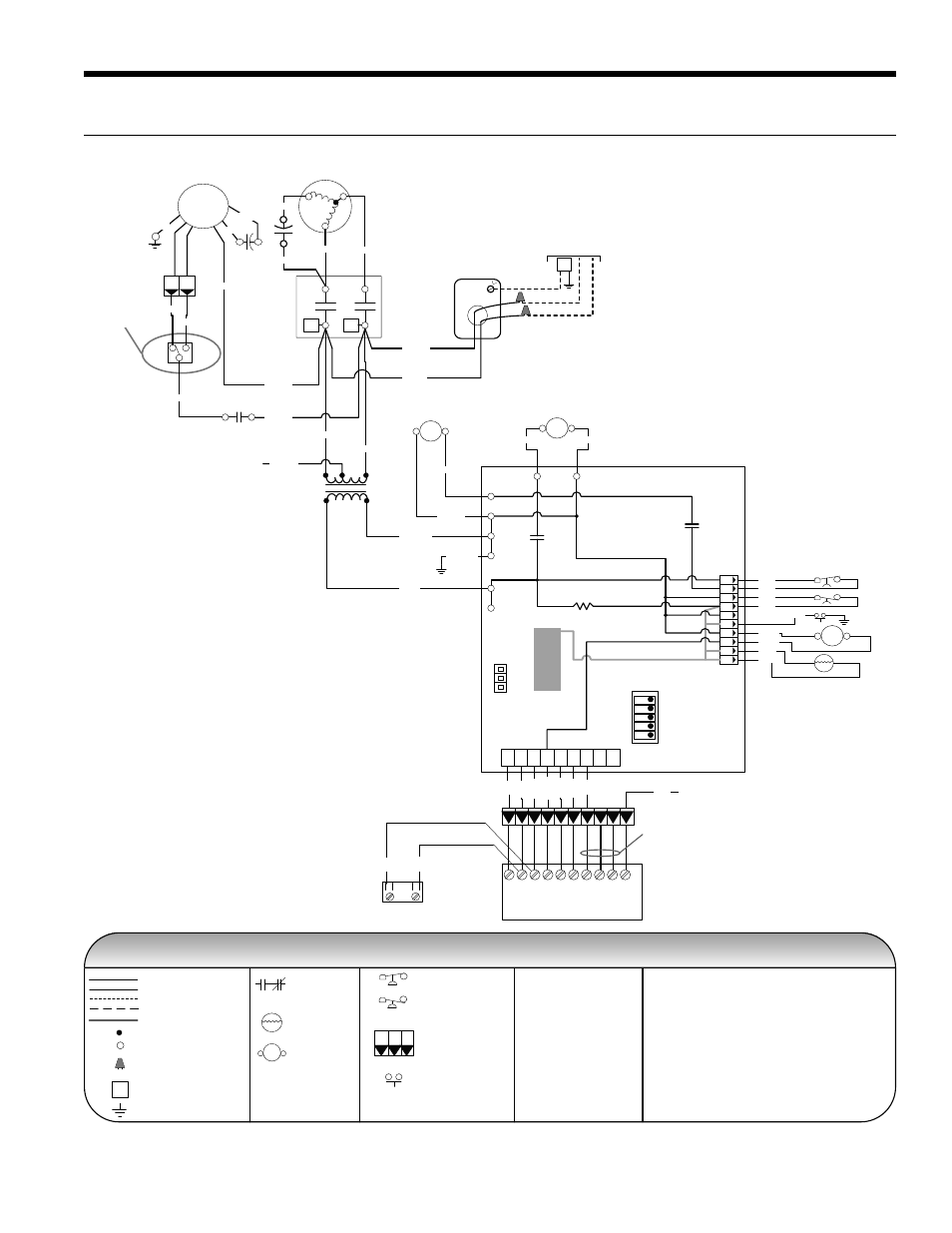

Wiring Schematics cont.
Versatec with Remote Thermostat - 208-230-265/60/1
Compressor
Relay Contacts-
N.O., N.C.
Thermistor
Relay coil
Switch - High pressure
Switch - Low pressure
Polarized connector
Condensate Overflow
Factory low voltage wiring
Factory line voltage wiring
Field low voltage wiring
Field line voltage wiring
Internal junction
Quick connect terminal
Wire nut
Field wire lug
Ground L1
Legend
T
1 3 2
P
Notes:
1 - Requires common connection or 24 VAC for activation.
2 - When field installed 24VAC motorized valve is used,
connect to C and Y.
3 - Switch blue and red wires for 208V operation.
DC voltage PCB traces
MV
C R Y1 O G L S
Terminal Board
X2 X1 W1
Red Black Yellow Oran
ge
Brown Green Blue
Black/
White
Black/
White
White
Legend
CC – Compressor Contactor
CO – Condensate Overflow
DT – Damper Terminal Block
ES – Emergency Shutdown
FS – Freeze Sensing Device
HP – High Pressure Switch
LP – Low Pressure Switch
MV – Motorized Valve
RB – Blower Power Relay
RV – Reversing Valve Coil
SW1 – DIP Switch #1
HP
LP
CO
T
Yellow
RV
FS
Yellow
Orange
Orange
Brown
Black
Black
Blue
Blue
R
P1 ES LO G O Y C R
9 8 7 6 5 4 3 2 1
On Off
Test / Normal
Loop / Well
SW1
Com T-Stat / Normal
Inputs / Normal
1
2
3
4
5
Split Mode / Normal
P3
P2
1
6
2
7
3
8
10
5
9
4
CPU
R
C
C
CCG
CC
Fan Fan COM
Cap
H L
PSC
Blower
Motor
Grn
Brn
Brn/Wht
C
R
S
CC
L1 L2
T1 T2
24V
Transformer
Handi - Box
Ground
Lug
Unit
Power Supply
208-230/60/1 or
265-277/60/1
G
Blue
Tan (36)
Red Black
97P828-01 6/24/11
Black (31)
Red (32)
High Low
Blower Speed
Switch
Black (29)
Red (30)
White (28)
RB 4 2
Black (25)
Black (27)
White (28)
Black
Blue 230V/265V
Red 208V
White (20)
CC
Brown (26)
Green (00)
3 1
Orange (21) Black (22)
RB
NOTE 3
NOTE 2
NOTE 1
Black/White
Yellow
Not Used
