17
ENVISION LOW SILL CONSOLE INSTALLATION MANUAL
Electrical Connections
General
Be sure the available power is the same voltage and phase as that shown on the unit serial plate. Line and low voltage
wiring must be done in accordance with local codes or the National Electric Code, whichever is applicable.
208 Volt Operation
All Envision Series 208/230 units are factory wired for 230 volt operation. For 208 volt operation, the red and blue
transformer wires must be switched.

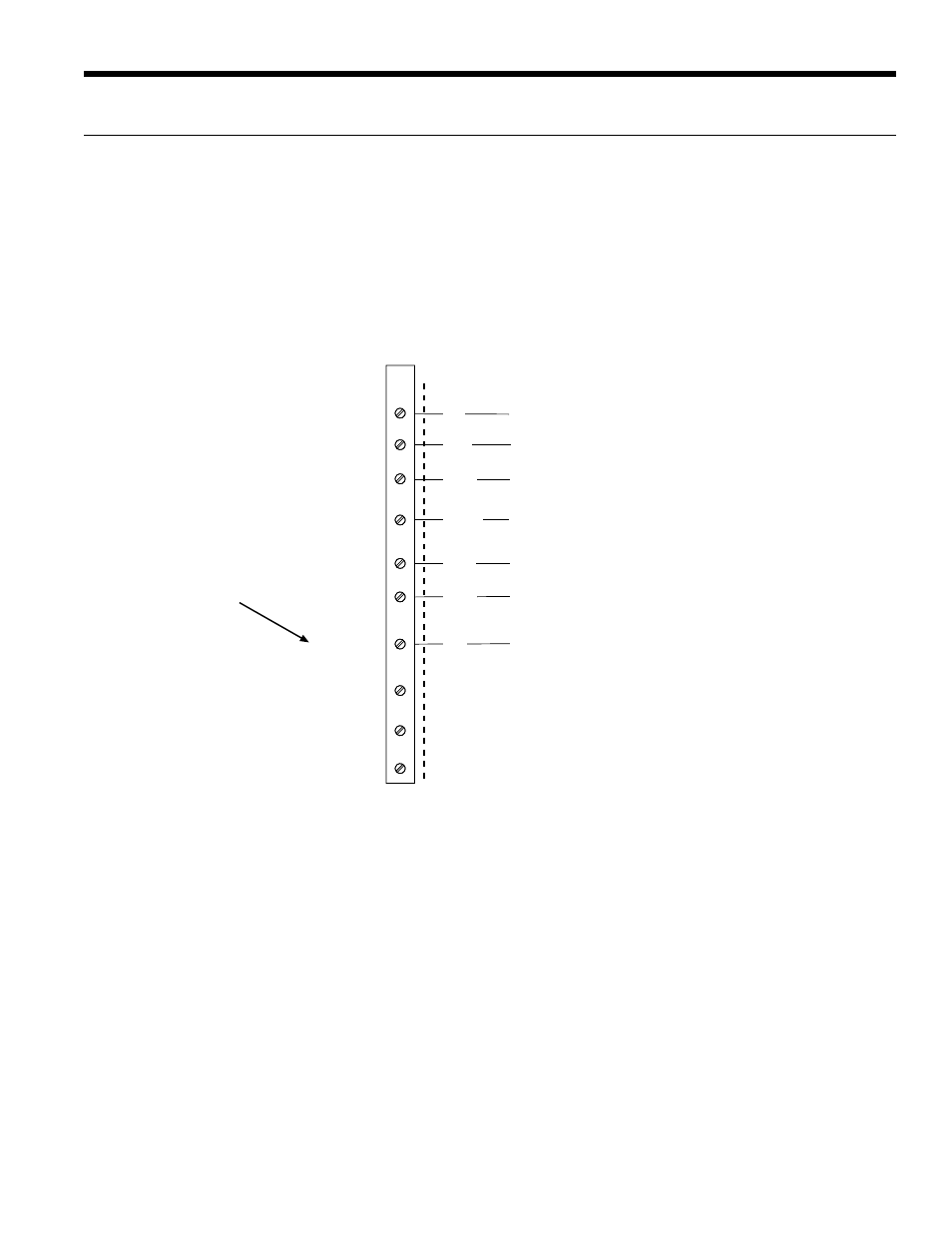

Microprocessor Remote Thermostat Wiring
TB
O
G
Y
C
R
L
S
X2
X1
W2
Field
Connections
Unit
Connections
24 VAC
COMMON
COMPRESSOR
REVERSING
VALVE
FAN
LOCKOUT
SIGNAL
SHUTDOWN
Requires common
connection or 24
VAC for activation
Red
Black
Yellow
Orange
Green
Brown
Blue
Figure 5
