Lingenfelter L8200xxxxx Lingenfelter Camaro Billet Pedal 2010-2012 v1.1 User Manual
Page 5
Page

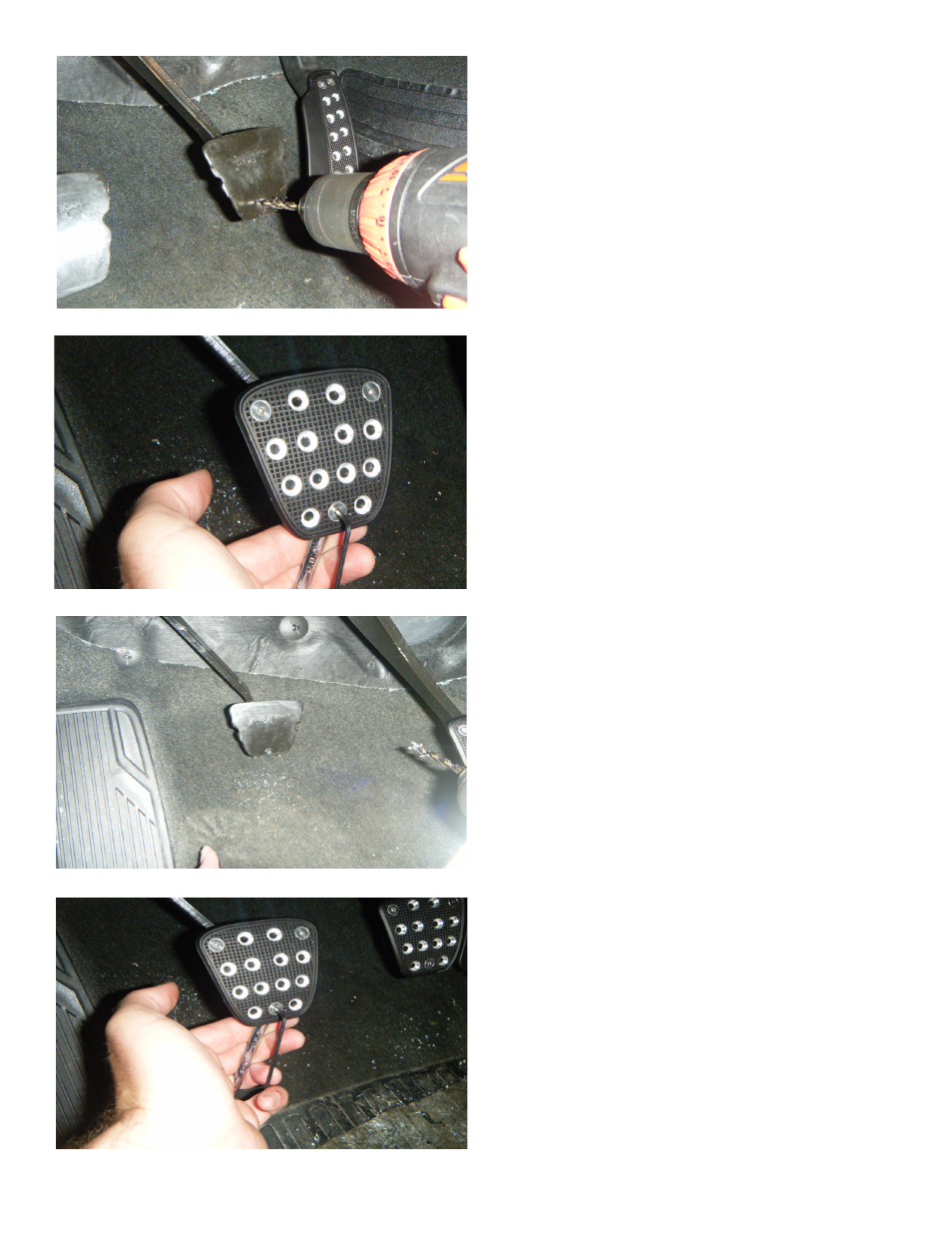

8. Using a 3/16” drill bit and drill, drill out the
three (3) pilot holes created in the previous step.
9. Using the supplied 3/32” Allen key and a 9
mm wrench to hold the locknuts in place, install
the three (3) bolts and the three (3) locking nuts
on the brake pedal.
10. For MT applications, repeat steps 5-9 to
install the clutch pedal cover.
11. This illustration shows the clutch pedal
cover being installed.
4.
