Page 3.

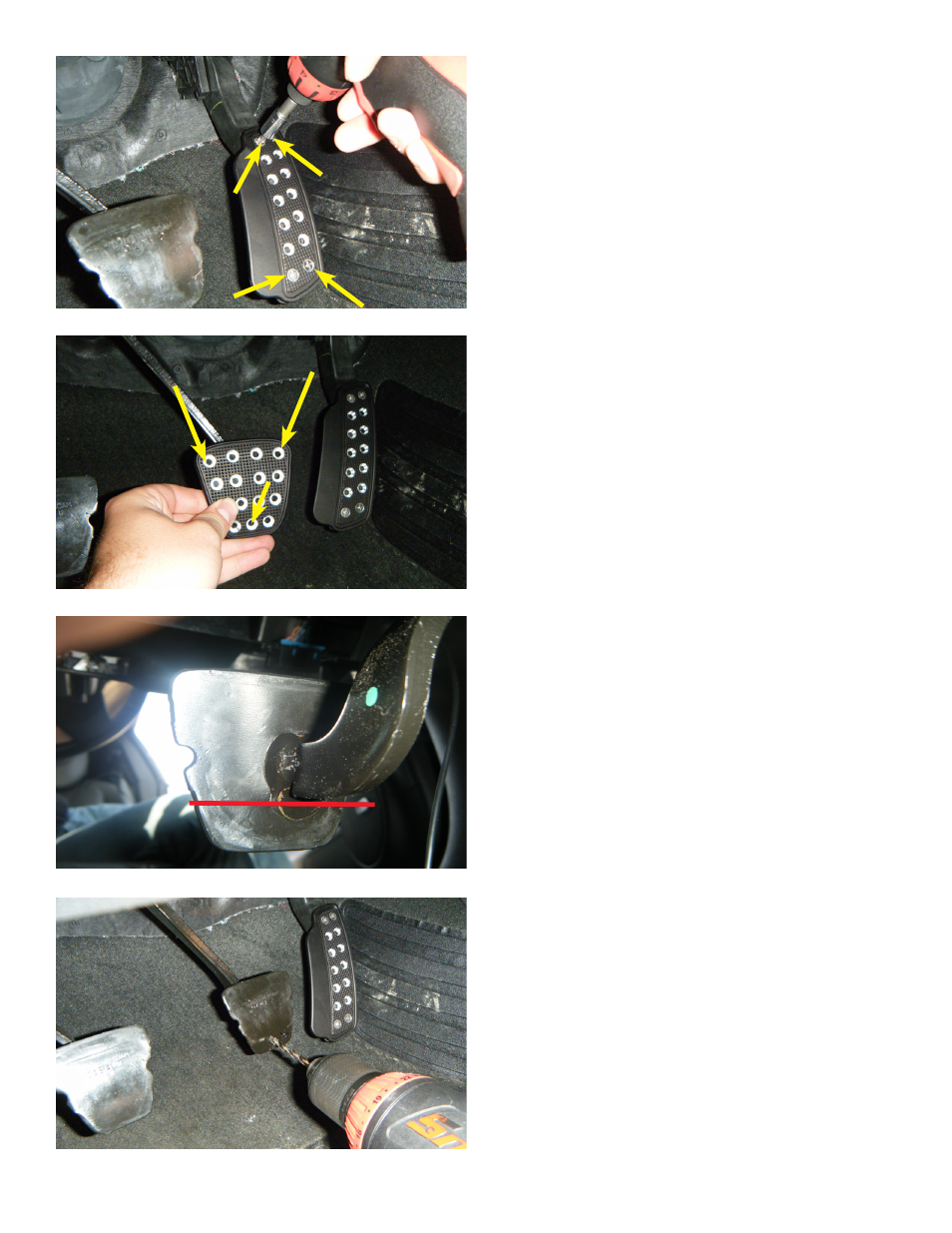

4. Install the four (4) self tapping screws into
the pedal cover holes as shown.
NOTE: The accelerator pedal is made of a hard
plastic. Take care not to overtighten the self
tapping screws.
5. Line up the pedal cover on the brake pedal
and, using a center punch, mark the location of
the three (3) holes indicated on your brake pedal.
NOTE: The brake pedal cover and clutch pedal
cover are dimensionally the same, so either one
can be installed on either pedal.
6. Make sure that the lower hole is below
the bottom of the pedal arm (shown by the red
line). The screws that will be used are only long
enough to secure the pedal cover to the pedal
plate.
7. Using a 1/8” drill bit and drill, drill the three
(3) pilot holes in the locations that you marked
with the center punch on your brake pedal.
