Page 3.

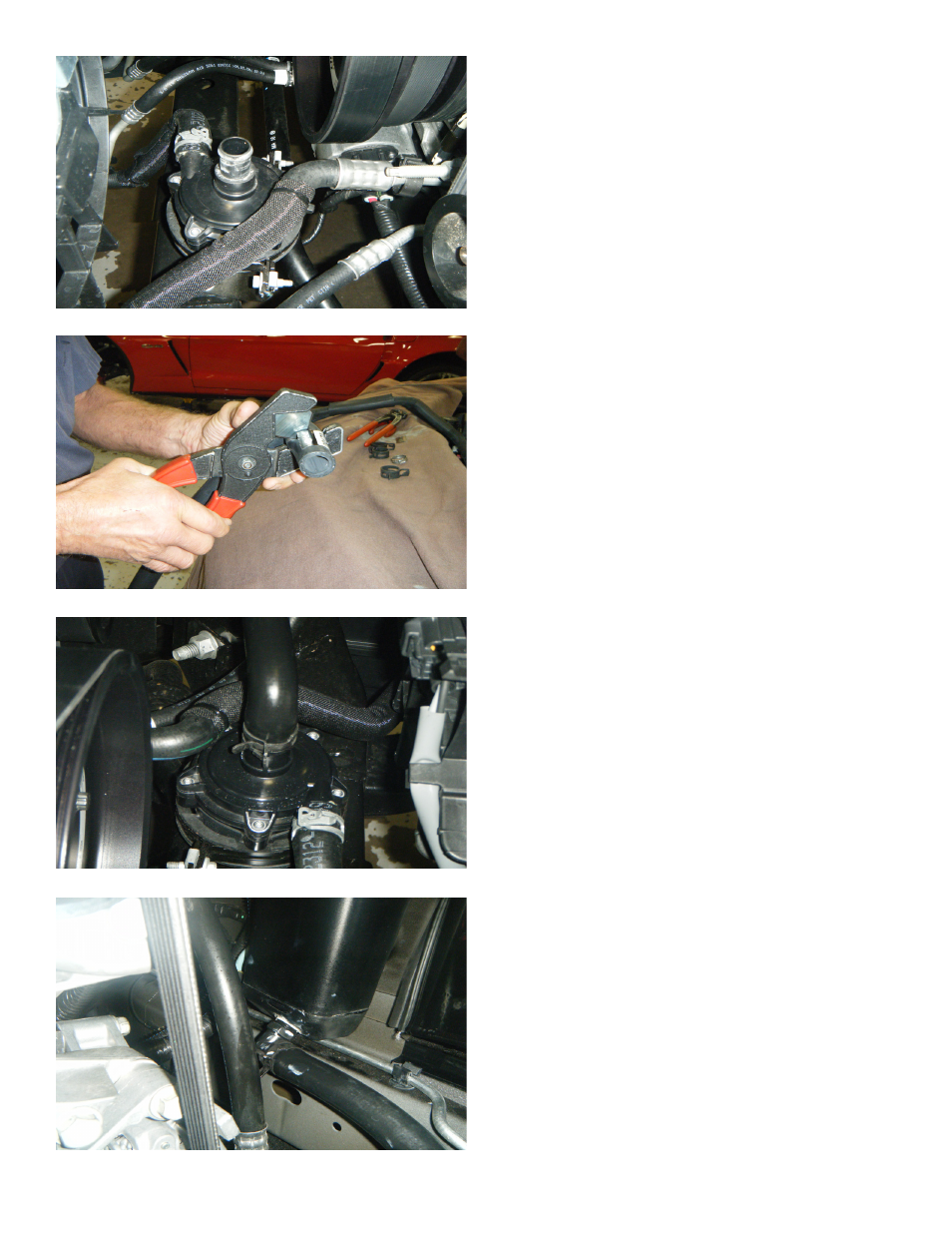

5. Locate the supercharger coolant pump,
which can be found just below and in front of
the damper. This pump will be connected to
the coolant reservoir in the following steps.
6. Before the LPE supplied 90 degree hose can
be installed, the short part of the hose after
the 90 degree bend must be cut down so that
it is just long enough for the constant tension
clamp to secure the hose to the pump. Use
a hose cutter to cut the hose.
7. Slide the constant tension clamp onto the
long end of the 90 degree hose, just before
the bend. Next, use silicone lubricant on
both the inside and outside on the short end
of the 90 degree hose. This allows the hose
to slide onto the pump fitting and for the
constant tension clamp to slide around the 90
degree bend on the hose and into position.
Finally, use a set of constant tension clamp
pliers (or equivalent) to loosen the clamp so
that it can be positioned to secure the hose
to the pump.
8. Run the hose that was connected to the
coolant pump in the previous step to the
lower fitting on the coolant reservoir. Mark
the length required for the hose to reach
the lower coolant reservoir fitting while
maintaining a smooth arc in the hose to
prevent kinking. Cut the hose to length and
apply lubricant to both the inside and outside
of the hose. Finally, attach the hose to the
fitting and secure the hose with a constant
tension clamp using constant tension clamp
pliers (or equivalent).
