< 1.3 > IP dongle confi guration
P.5

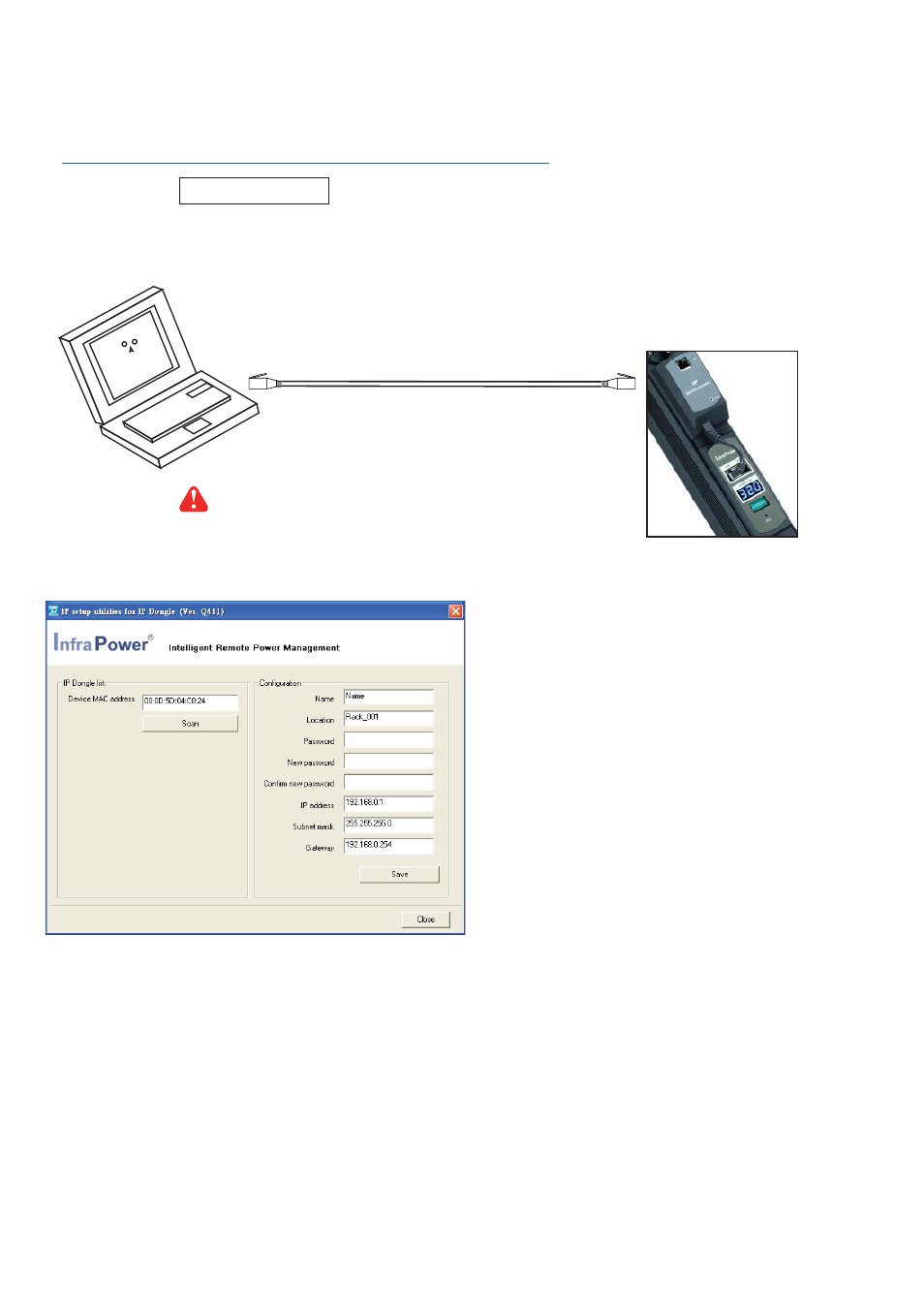

After the completion of IP dongle connection, please take the following steps to confi gure the IP dongle :
IP dongle on 1st level PDU
To IP dongle
LAN port
To notebook computer
LAN port
CAT. 5 / 6 cable
4. Click Scan to search the connected IP dongles
5. Enter the device name ( min. 4 char. / max. 16 char. ) in the device name fi eld. The default is Name.
6. Enter the location in the location fi eld ( min. 4 char. / max. 16 char. ). The default is Rack_001.
7. Enter the password for security in the password fi eld ( min. 8 char. / max. 16 char. ). The default is 00000000.
8. Re-enter the new password in the Confi rm new password fi eld.
9. Change the desired IP address / Subnet mask / Gateway, then click Save to confi rm the setting to IP dongle.
10. The default IP address is as below:
IP address : 192.168.0.1
Subnet mask : 255.255.255.0
Gateway : 192.168.0.254
Reconnect the IP dongle with the network device
( router or hub ), after fi nish IP dongle confi guration.
Ensure the PDU in
power ON status
1. Prepare a notebook computer to download the IP setup utilities from the link :
www.austin-hughes.com/support/utilities/infrapower/IPdongleSetup.msi
2. Double click the IPDongleSetup.msi and follow the instruction to complete the installation.
3. Go to each fi rst level PDU with the notebook computer & a piece of CAT. 5 / 6 cable to confi gure the IP dongle by IP
setup utilities as below. Please take the procedure for all IP dongles ONE BY ONE.
