Cascaded pdus setting, 1 > pdu meter setting & cascade – Austin Hughes PPS-01 User Manual
Page 5
www.austin-hughes.com
UM-PPS-01-Q212V9
Using the dip switch no. 1, 2, 3, 4 & 8 to setup each PDU level as below :
Cascaded PDUs
Dip switch no.
1
2
3
4
8
1st PDU
On
On
On
On
Off
2nd PDU
Off
On
On
On
Off
3rd PDU
On
Off
On
On
Off
4th PDU
Off
Off
On
On
Off
5th PDU
On
On
Off
On
Off
6th PDU
Off
On
Off
On
Off
7th PDU
On
Off
Off
On
Off
8th PDU
Off
Off
Off
On
Off
9th PDU
On
On
On
Off
Off
10th PDU
Off
On
On
Off
Off
11th PDU
On
Off
On
Off
Off
12th PDU
Off
Off
On
Off
Off
13th PDU
On
On
Off
Off
Off
14th PDU
Off
On
Off
Off
Off
15th PDU
On
Off
Off
Off
Off
16th PDU
Off
Off
Off
Off
Off
Cascaded PDUs setting
P.1

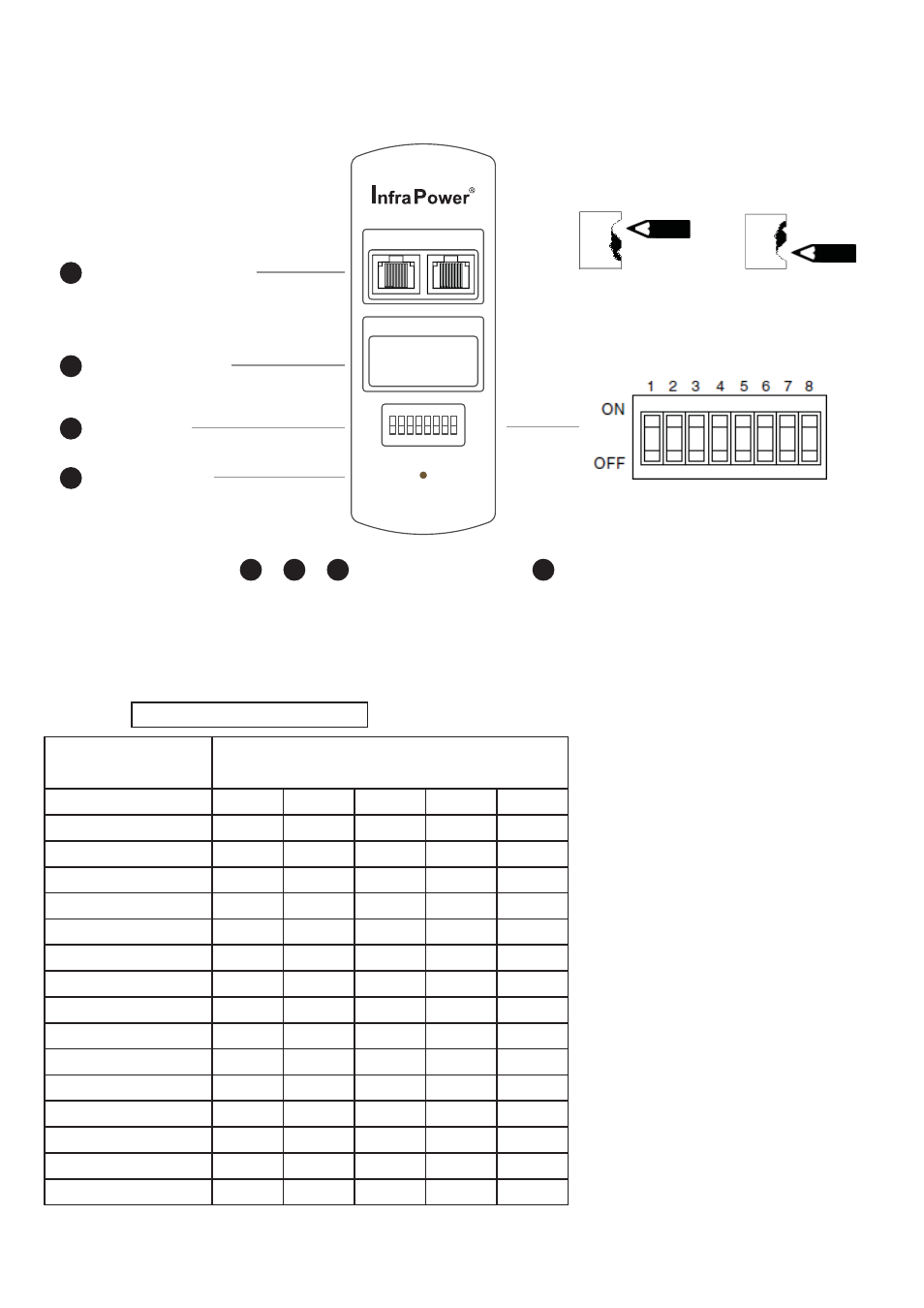

< 1.1 > PDU meter setting & cascade
PDU cascade port
DIP Switch
1
LINK
OUT
RESET
ON
DIP
1
8
7
6
5
4
3
2
CURRENT
(
A
)
225
Current display
2
Dip switch
3
Reset button
4
■
For rackmount PDU, on the front panel left , on the rear panel
2
3
4
1
DIP Switch
