IPD-H01 IP dongle for rackmount PDU

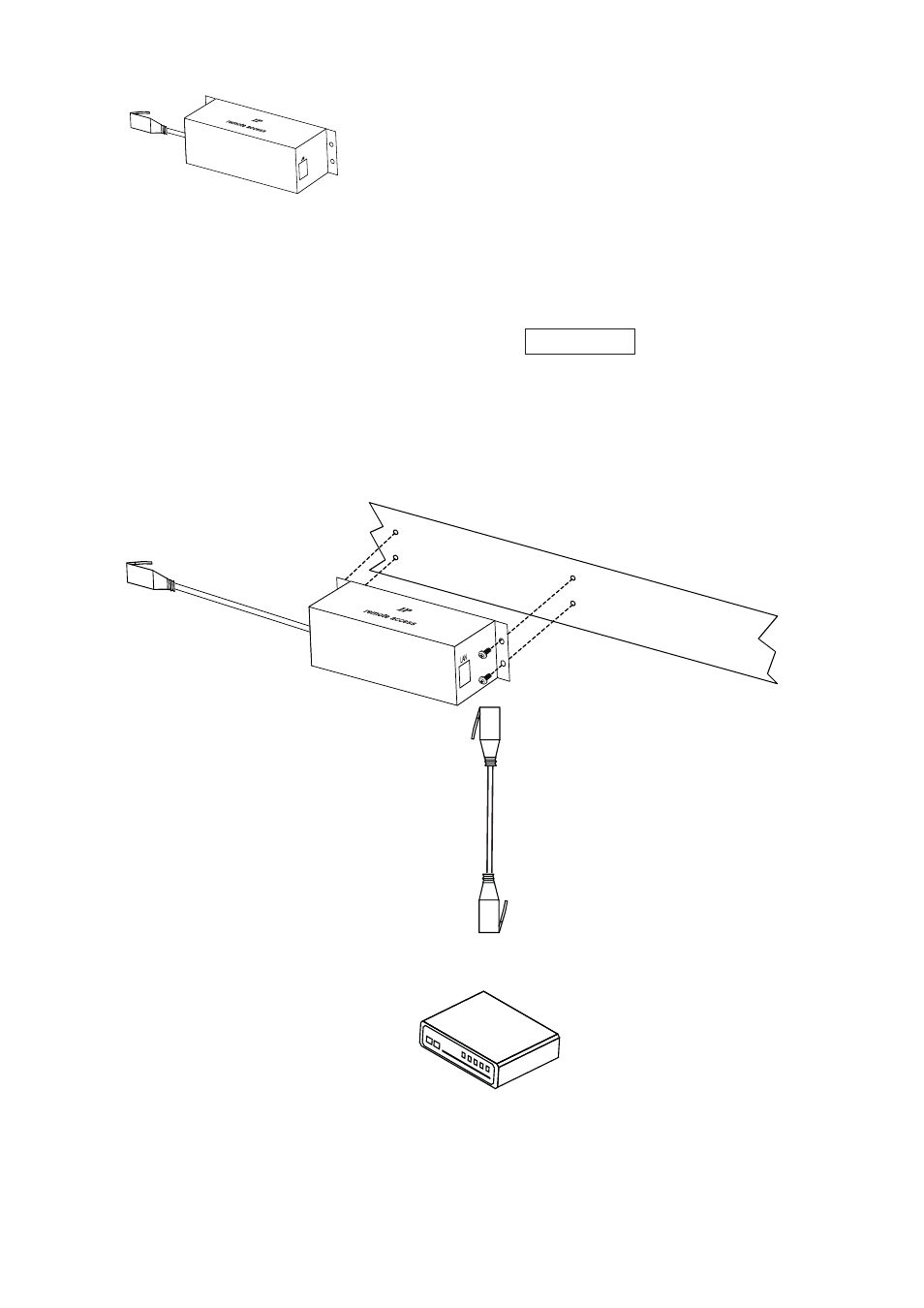

Horizontal IP dongle installation steps :
- fi x the IP dongle on the rear side of rackmount PDU with 4 screws
- plug the RJ-45 connector of IP dongle into the LINK port of the 1st level PDU meter
- use the CAT. 5 / 6 cable to connect IP dongle to network device
To LINK port of the 1st PDU
Customer’s network device
( router or hub )
Rear side of rackmount PDU
IP dongle
To LAN port
