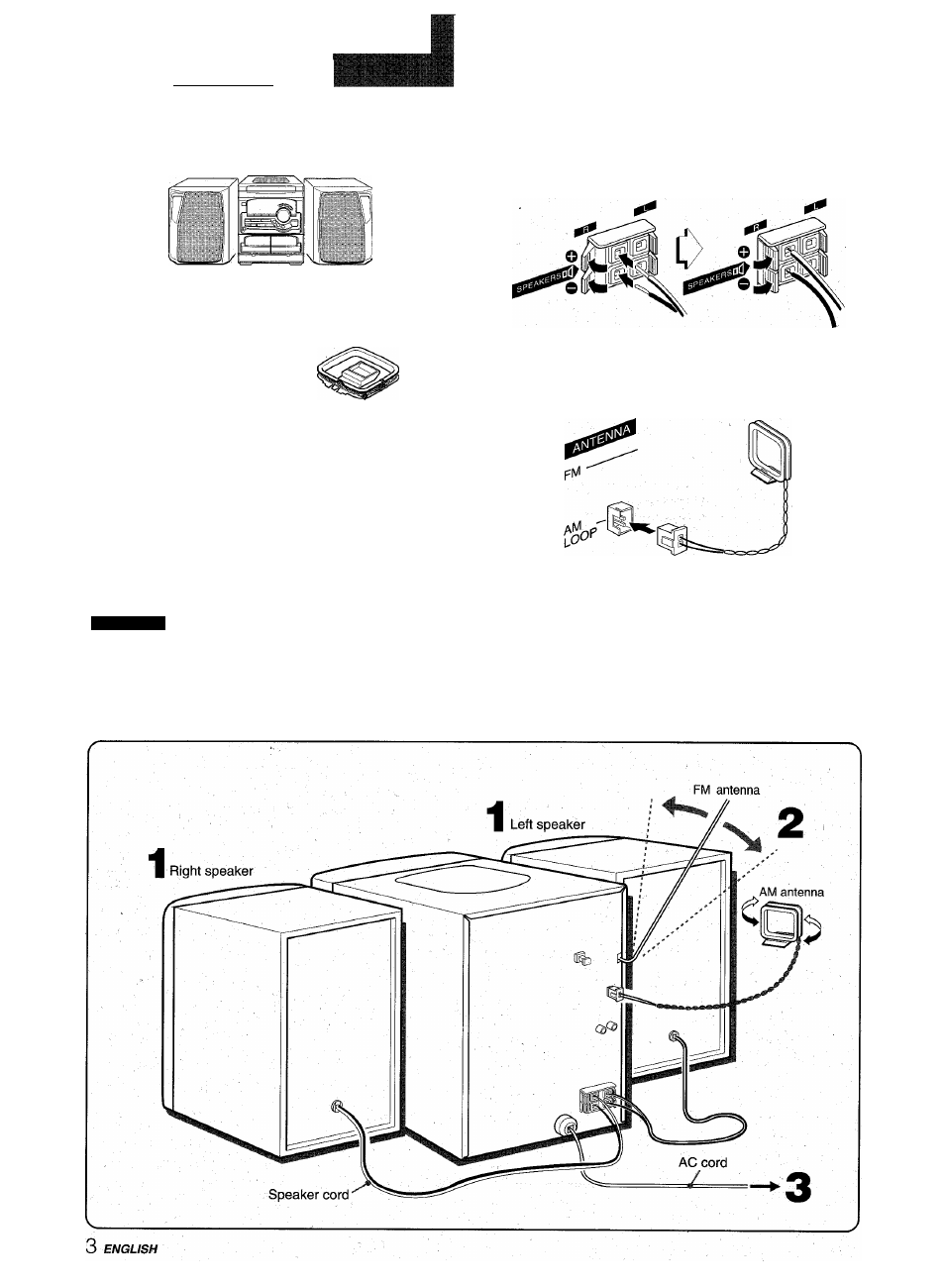

CONNECTIONS
Check your system and accessories
CX-NA22 Compact disc stereo cassette reciever
SX-NA22 Front speakers
Remote control AM antenna
1 Connect the right and left speakers to the main
unit.
Connect the right speaker cord to the SPEAKERS R terminals,
and left to the SPEAKERS L terminals.
There are no differences between the front speakers. Both
speakers can be connected as L (left) or R (right).
The speaker cord with the white stripe should be connected
to the O terminal and the black cord to the © terminal.
2 Connect the supplied AM antenna to the AM
LOOP terminal.
Operating Instructions, etc
Before connecting the AC cord
Thé rated voltage of your unit shown on the rear panel is
120 V AC. Check that the rated voltage matches your local
voltage.
IMPORTANT
Connect the speakers, antennas, and all optional equipment first.
Then connect the AC cord in the end.
3 Connect the AC cord to an AC outlet.
CAUTION!
Do not connect the FM antenna to the outdoor antenna terminal
on the wall, as this could result in shock.
When the AC cord is connected, the all characters may light up
on the display. In this case, disconnect the AC cord. Then, connect
it again.
