24

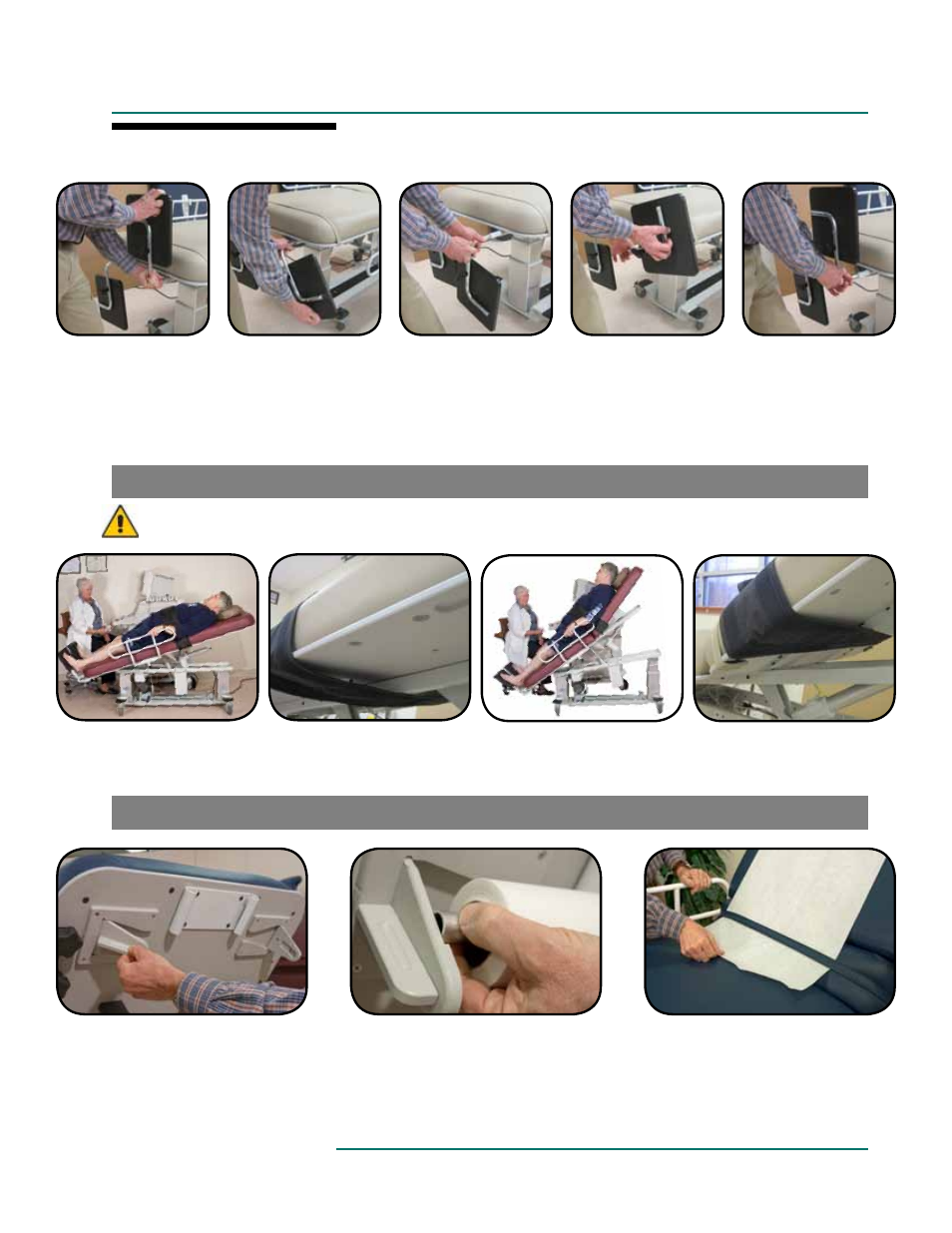

Grasp the rod at 90º
bend and push into
the table to unlock.
To Move The fooT boarD To The 4” (10 cm.) PoSITIon
With your second
hand, grasp the foot
board & rotate 180º
to the down position.
Grasp the rod at 90º
bend and pull to the
4” (10 cm.) position.
Check locking by moving footboard left and right.
With your second
hand, grasp the foot
board and rotate 180º
to the up position
Grasp the rod at 90º
bend and pull away
from the table to
lock in position.
To load the paper, pull down on
the 2 paper holder support arms
located on the under side of the
Fowler section and rotate to the 90º
position.
Insert the rod through the paper roll
and place the rod into the holes in
the support arms.
DIreCTIonS for USe
CaUTIon
vaSCUlar PaTIenT reSTraInInG STraP USe
The Vascular Patient Restraining Strap must be used during all procedures to prevent from
falling off the table.
vaSCUlar flaT ToP TableS
Install the strap under the rail to the top.
vaSCUlar WITh foWler TableS
Install the strap under the Fowler section & above all rails.
PaPer roll holDer USe
Pull paper and thread through the
straps across the upholstered top to
keep in place.
Note: The paper “hold down” strap is attached
with Velcro ® . This allows strap tension adjustment
if necessary.
