20

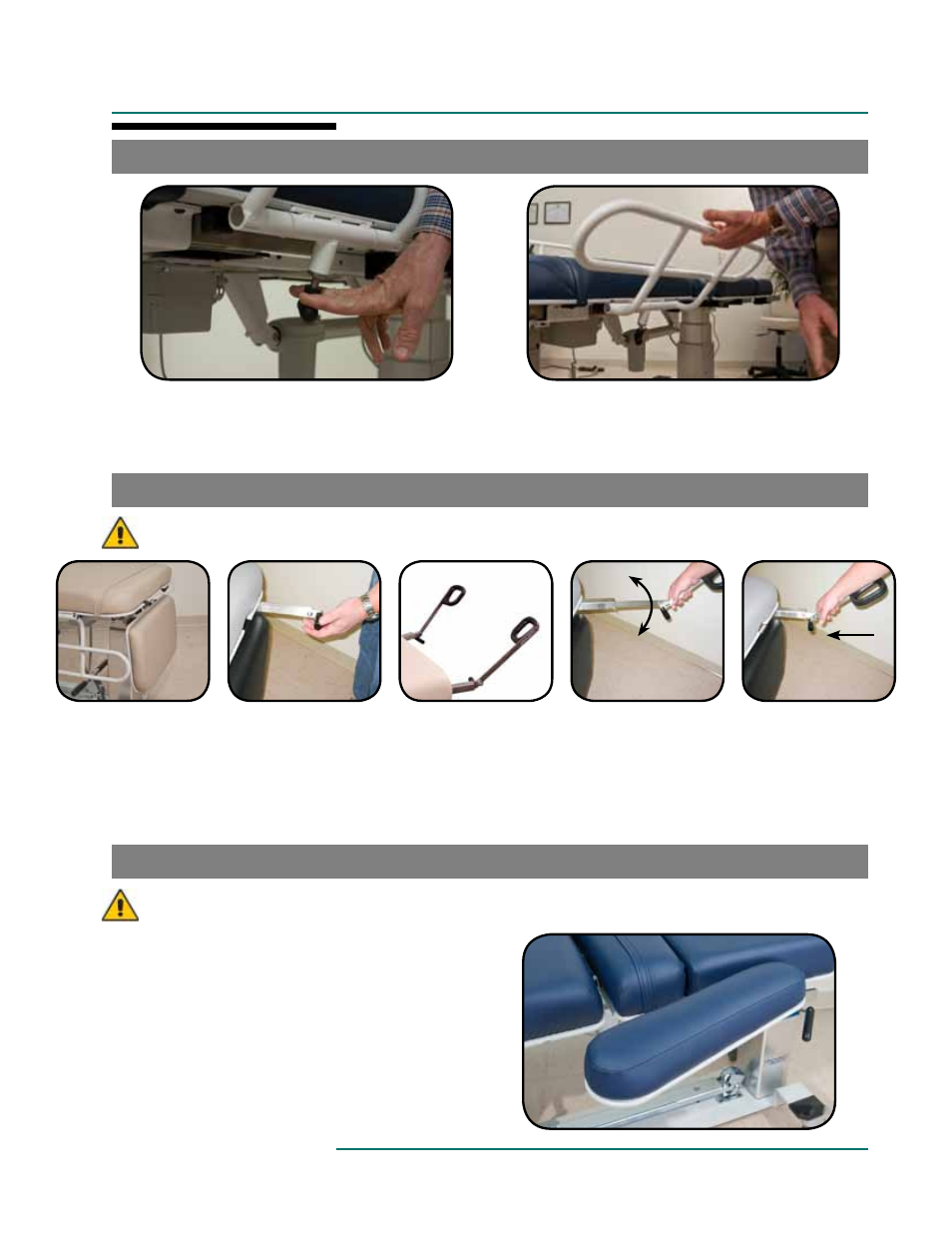

To loWer SIDe raIlS
Push side rail in lightly towards the center of the table,
then push locking knob down towards the table base.
Fold side rails down and under the table.
To raISe SIDe raIlS
Grasp side rail and rotate to the raised position. When
fully up, the side rail will lock into position. Check that
the rail is locked by applying light outward pressure.
1. Fully lower the manual
adjustable foot rest to allow
access to the stirrup.
3. Fold out to fully open
position.
2. Grasp Stirrup handle &
pull out firmly while lifting
slightly. Pull fully out.
4. To rotate stirrup to the
desired angle, lift slightly
and move to the desired
position. There are 3
detent positions. Stop lift-
ing and move slightly left
or right for the nearest
detent position.
5. To reduce stirrup
length, lift the handle
slightly and push into
desired position. Stirrup
will automatically lock
into nearest detent posi-
tion. To store stirrups, lift slightly, rotate towards the middle of the table and
fold the foot rest down. Then lift slightly and push into the storage position.
DIreCTIonS for USe
SIDe raIl USe
reTraCTable fooT reSTS (STIrrUP) USe
CaUTIon
Pinch Point - Keep fingers away from pinch point.
This product can be used on any of Oakworks
ultrasound tables with a T-Rail Adapter and can
support a variety of positioning configurations.
DeTaChable arM boarD USe
CaUTIon
Do not put excessive weight or pressure on the Arm Board.
