Caution, Directions for use – Oakworks Ultrasound / PG Series Rev.A User Manual
Page 19
16

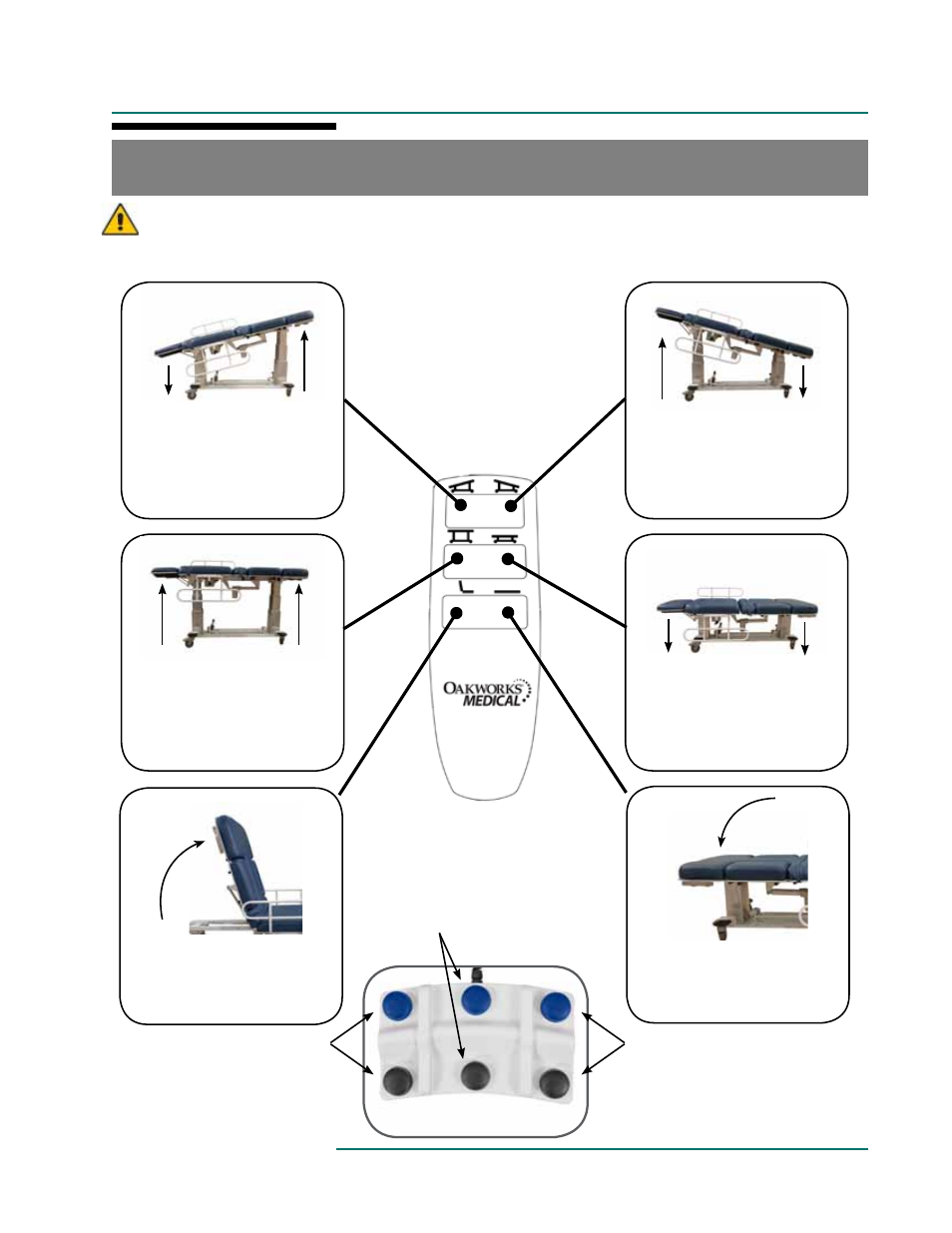

height Up:
elevates tabletop
Trendelenburg functions are
preserved during elevation
height Down:
lowers tabletop
table is lowered from
any position
reverse Trendelenburg:
activates tilt up to 15º
positioning stops when table is
level; press again to continue.
Trendelenburg:
activates tilt up to 15º
positioning stops when table is
level; press again to continue
fowler Up:
activates fowler
up to 75º
fowler Down:
activates fowler
down to level position
DIreCTIonS for USe
CaUTIon
ConTrol oPeraTIonS - MUlTI-SPeCIalTy,
WoMen’S IMaGInG & General WITh foWler
Do not sit on the Fowler (Backrest) or Leg Rest sections.
Do not leave the patient unattended.
When lowering the table or using the Trendelenburg functions, make sure there is nothing
that can impede motion (like stools, cabinets, accessory parts, cleaners, etc.)
optional 3 function foot control
Trendelenburg
function
Fowler
function
Height
