Oakworks Ultrasound / PG Series Rev.B - Manual (Page 28)

25
DIRECTIONS FOR USE
CAUTION

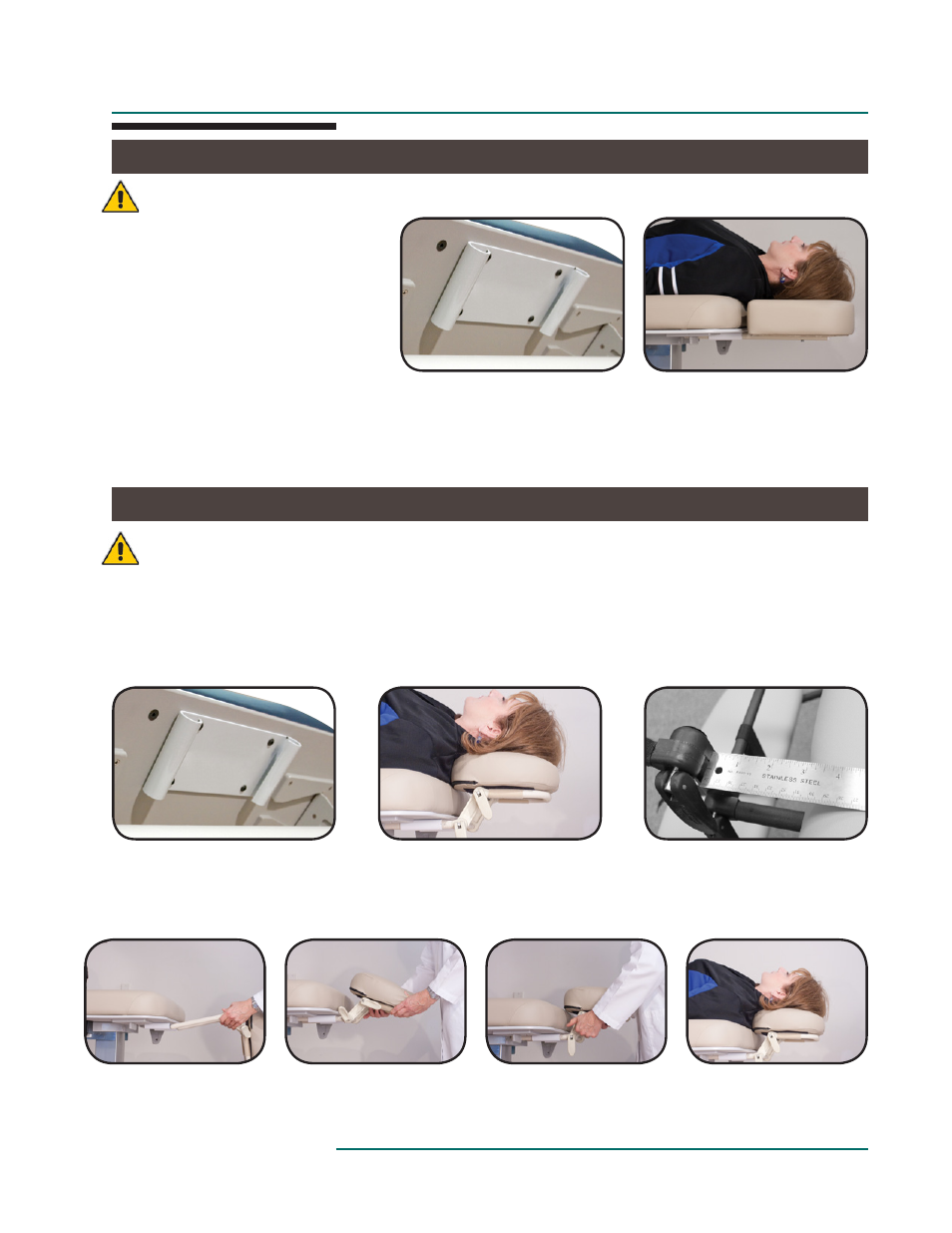

TABLE EXTENDER USE
Do not put excessive weight or pressure on the table extender.
The Table Extender lengthens the
table allowing for access to the
patient’s neck for exams such as
carotid artery and thyroid.
NOTE:
You will need an
accessory mounting plate in
order to use the table extender.
1. Locate the Accessory
Mounting Plate.
2. Insert the Table Extender
tubes into the Accessory
Mounting Plate.
Double articulating action provides nearly limitless positioning options with the QuickLock ™ Face
Rest. The adjustable pad takes pressure off sensitive facial areas while providing superb support. The
QuickLock ™ Face Rest can be used in both prone and supine positioning and folds out of the way
when not in use. Adjustments are made easily by loosening the cam locks, adjusting for height and
angle and then locking the cam locks into the desired position.
Important Safety Note:
Maximum Distance from edge
of Table = 3” (7.6 cm.)
NOTE:
You will need an
accessory mounting plate in
order to use the QuickLock ™
face rest.
QuickLock™
Face Rest
Insert dowels into
Accessory Mounting Plate
Loosen Cam Locks &
adjust face rest into place.
The Face Rest can be used
for either prone or supine
positioning.
Tighten the Cam Locks.
QUICKLOCK FACE REST
* U.S. Patent #5,177,823
CAUTION Do not put excessive weight or pressure on the Quicklock Face Rest. Do not extend the
dowels of the Quicklock Face Rest 3” (7.6 cm.) from the Fowler (Backrest) section.
