Vascular Tilt Up:
Vascular tilt up to 25º
Vascular Tilt Down:
Lowers the vascular tilt
DIRECTIONS FOR USE
CAUTION

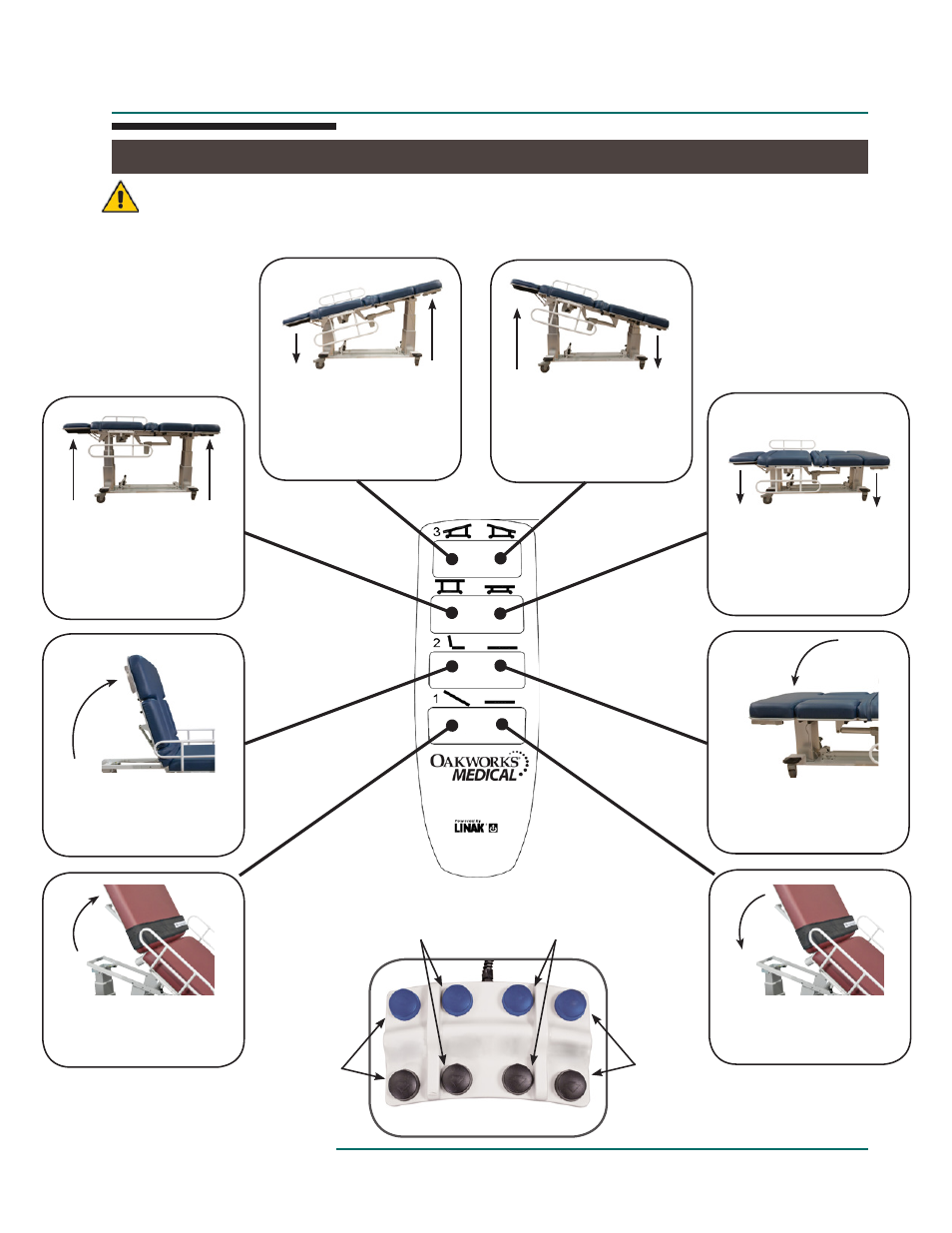

CONTROL OPERATIONS - VASCULAR WITH FOWLER
Do not sit on the Fowler (Backrest) or Leg Rest sections. Do not leave the patient unattend-
ed. The Patient Restraint Strap must be used during all procedures. When lowering the table
or using the Trendelenburg functions, make sure there is nothing that can impede motion
(like stools, cabinets, accessory parts, cleaners, etc.)
Height Up:
elevates tabletop
Trendelenburg functions are
preserved during elevation
Height Down:
lowers tabletop
Trendelenburg functions are
preserved during lowering
Reverse Trendelenburg:
activates tilt up to 15º
positioning stops when table is
level; press again to continue.
Trendelenburg:
activates tilt up to 15º
positioning stops when table is
level; press again to continue
Fowler Up:
activates fowler
up to 75º
Fowler Down:
activates fowler
down to level position
optional 4 function foot control
Trendelenburg
function
Vascular
function
Height
function
Fowler
function
