Mount & dismount the table in the flat position. Do not use the foot board as a step to
mount the table. When the foot boards are in the down position, it is possible for them to hit
the ground in low height or trendelenburg conditions. Operate the table with the foot board up if possible. If not, then
check ground clearance to prevent damage to the foot boards. Make sure the foot boards are securely positioned before
the patient places weight on them. The Patient Restraining Strap must be used during all procedures to prevent the patient
from falling off the table.
23

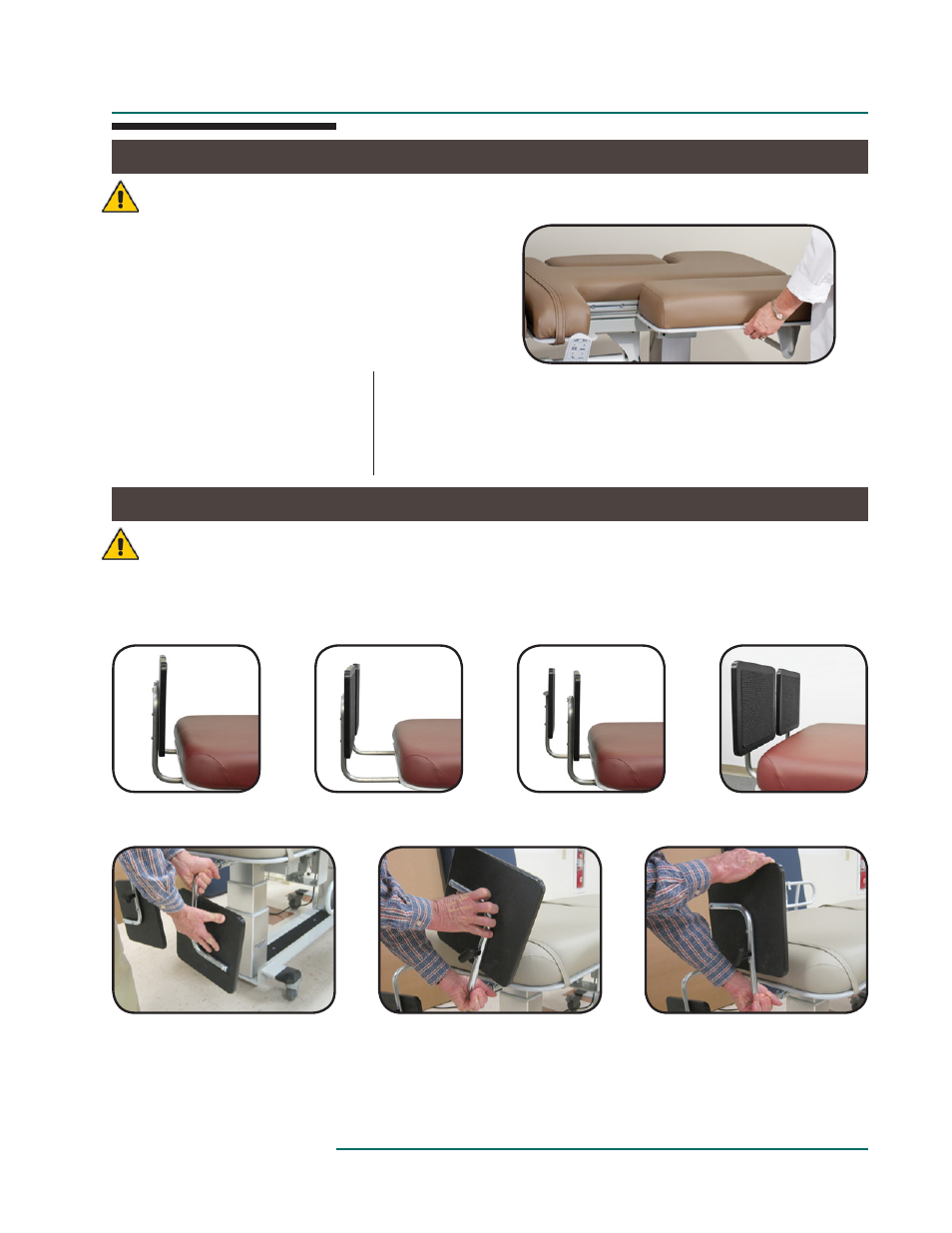

The Sliding Cardio Panel allows you to adjust the
opening of the size you need, up to 15” (38 cm.).
PRIOR TO MOVING THE CARDIO PANEL
Make sure patient weight is not on the panel.
MANUAL CARDIO PANEL
1. Grasp the Cardio Panel.
2. Lift up slightly.
3. Slide the panel to the
desired opening width.
ELECTRIC CARDIO PANEL
1. Use the hand control or optional
foot control to open the cardio
panel to the desired opening width .
2" (5 cm.)
position
4" (10 cm.)
position
staggered
position
anti-skid
surface
TO RAISE THE FOOT BOARD TO THE 2” (5 cm.) POSITION
DIRECTIONS FOR USE
CAUTION
SLIDING CARDIO PANEL USE
Make sure all parts of the patient’s anatomy are clear of the sliding cardio panel when closing.
Do not sit or put excessive weight on the sliding cardio panel. (Max Capacity 150 lbs. (68 kg.))
CAUTION
INTEGRATED FOOT BOARD USE
With footboard in the down
position, grasp the rod at 90º
bend. Push into the table until
it stops.
Grasp with one hand at 90º
bend and rotate foot board
180º with second hand until
in the up position.
Grasp with one hand at 90º
bend and pull away from
table to lock in up position.
Check locking by moving footboard left and right.
