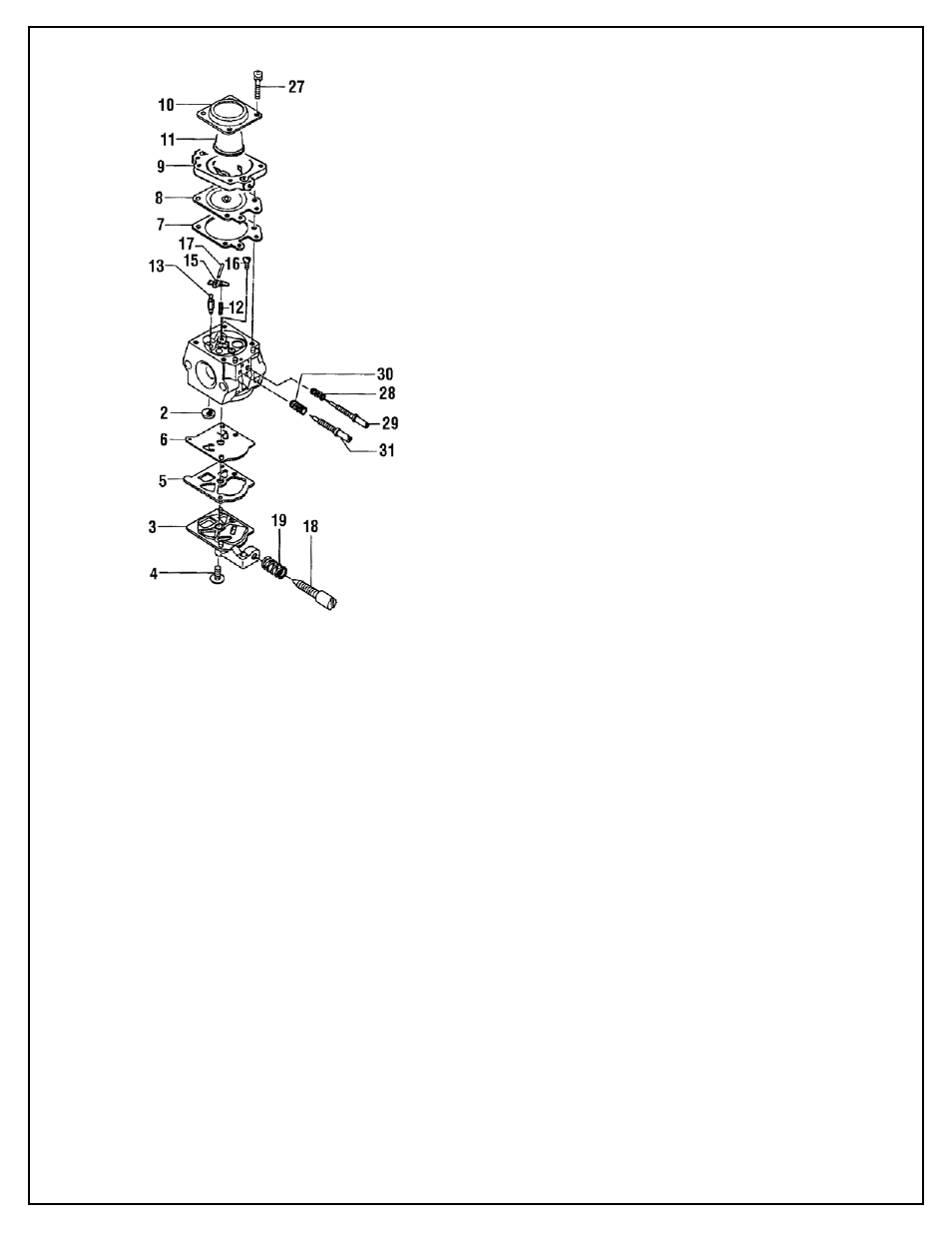

CARBURETOR PARTS LIST
Key # Description Stock #
2 Inlet Screen FJIG5460
3 Pump Body FJIG6930
4 Set Screw FJIG7170
5 Pump Gasket FJIG7060
6 Pump Diaphragm FJIG7020
7 Diaphragm Gasket FJIG4610
8 Metering Diaphragm Complete FJIG5760
9 Air Purge Cover FJIG3020
10 Diaphragm Cover FJIG4520
11 Priming Body FJIG6210
12 Valve Spring FJIG8525
13 Needle Valve FJIG6240
15 Valve Hinge FJIG7540
16 Hinge Pin Set Screw FJIG5130
17 Hinge Pin FJIG5100
18 Idle Adjustment Screw FJIG5220
19 Idle Adjustment Spring FJIG5285
27 Set Screw (4) FJIG7161
28 High/Low Adjustment Spring FJIG5070
29 Low Adjustment Screw FJIG5590
30 High Adjustment Spring FJIG5040
31 High Adjustment Screw FJIG4940
