CYLINDER/PISTON/CRANKSHAFT PARTS LIST
Key # Description Stock #
1 Spark Plug NGK CMR6A FJIG7475
2 Cylinder Set FJIG4382
3 Hex Bolt 5x18mm/S (4) FJIG8290
4 Cylinder Gasket FJIG4291
5 Piston Ring (2) FJIG6651
6 Piston Set FJIG6362
7 Piston Pin FJIG3446
8 Piston Pin Retainer (2) FJIG6509
9 Water Jacket Complete FJIG8721
10 Screw 3x8mm FJIG7160
11 Crankshaft Complete FJIG4091
12 Needle Bearing F-910 1.4x8.5mm FJIG6149
13 Woodruff Key 3x13x4.5mm FJIG7660
14 O-ring G45 FJIG6251
15 Spark Plug Cap Assembly FJIG7500
16 O-ring G30 FJIG6252
20 Ignition Coil Complete FJIG7313
28 Hex Bolt 4x18mm/WS (2) FJIG8220
19
REPLACEMENT PARTS
To order replacement parts for the Fuji-Imvac BT-28M, use the order numbers in the Replacement Parts Lists that follow.
Replacement parts are available only as listed. Replacement parts are not available from Product Support, but can be
purchased from hobby shops or mail order/Internet order fi rms. If you need assistance locating a dealer to purchase
parts, visit www.greatplanes.com and click on “Where to Buy.”
CRANKCASE PARTS LIST
Key # Description Stock #
14 Crankcase Assembly BT-28 FJIG3881
15 Oil Seal TB 12227 (2) FJIG6300
16 Ball Bearing 6001 CE (2) FJIG3080
17 Crankcase Gasket FJIG3921
18 Shim 0.2 FJIG7350
18 Shim 0.3 FJIG7380
24 Magneto Rotor 60mm FJIG5720
25 Washer 8mm FJIG8680
26 Hex Nut 8mm FJIG8520
32 Hex Bolt 5x18mm/S (3) FJIG8290
55 Starter Pulley Assembly FJIG7139
56 Starter Pawl FJIG7141
57 Starter Pawl Spring FJIG7142

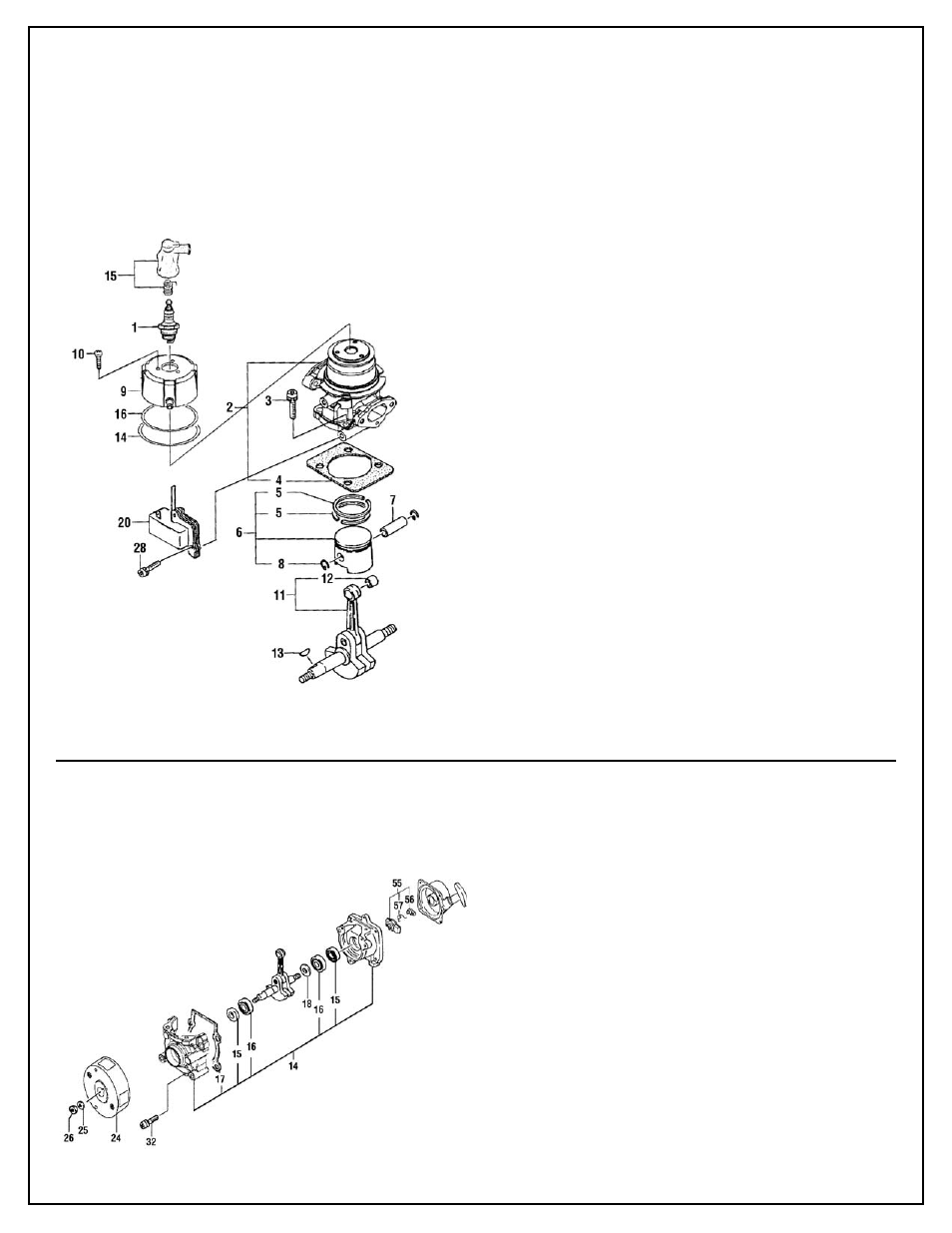

FUJI-IMVAC BT-28 MARINE ENGINE EXPLODED VIEWS
