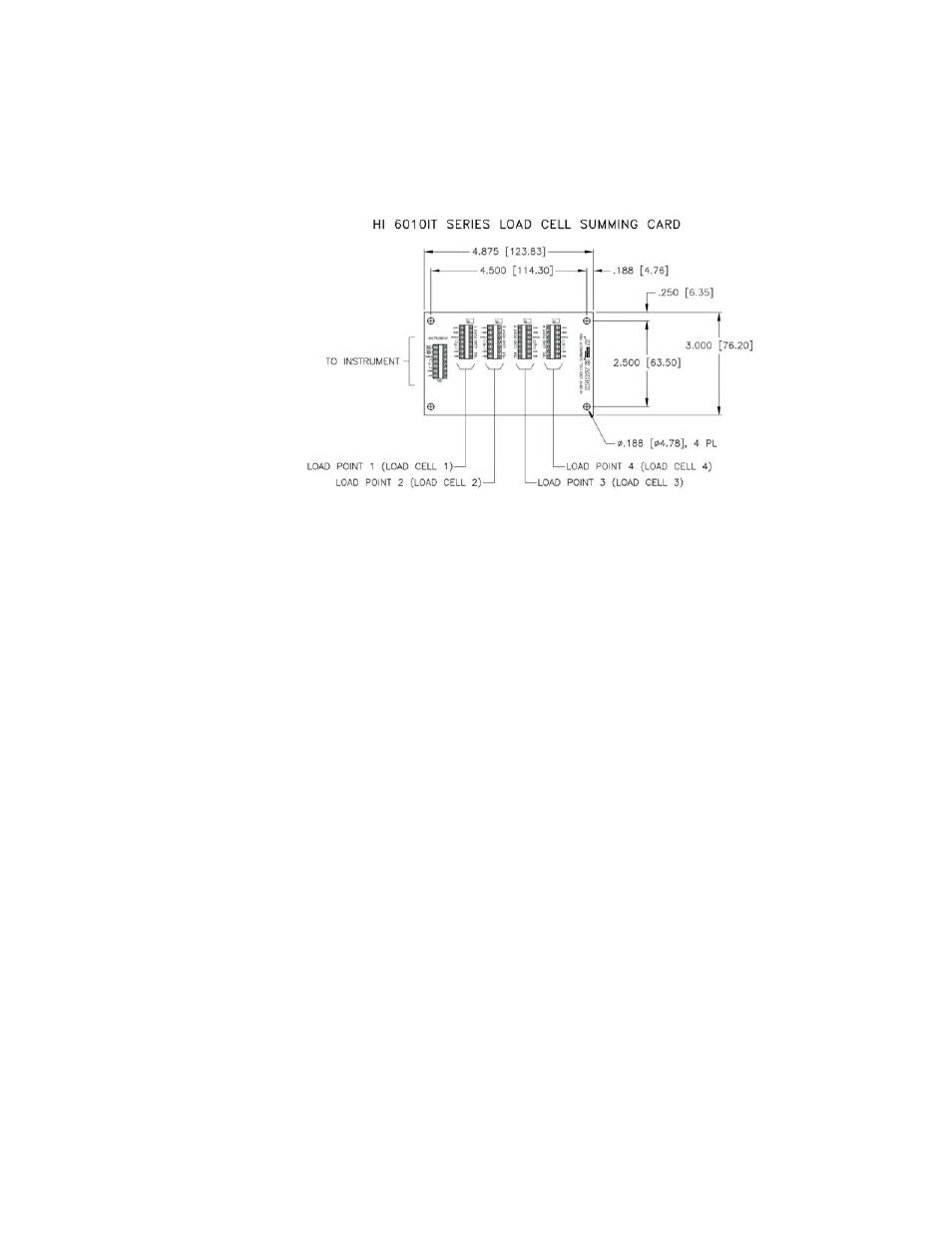

HI 6010 Summing Box Diagram
NOTE When connecting a Hardy Summing Box to the HI 6300, you must remove the two
factory installed jumpers on pins 1 & 2 and on pins 5 & 6 on the module and install
C2 and sense wires. C2 wires carry the commands for Integrated Technician and the
C2 calibration information.
