16 Chapter

•

Wall Mount

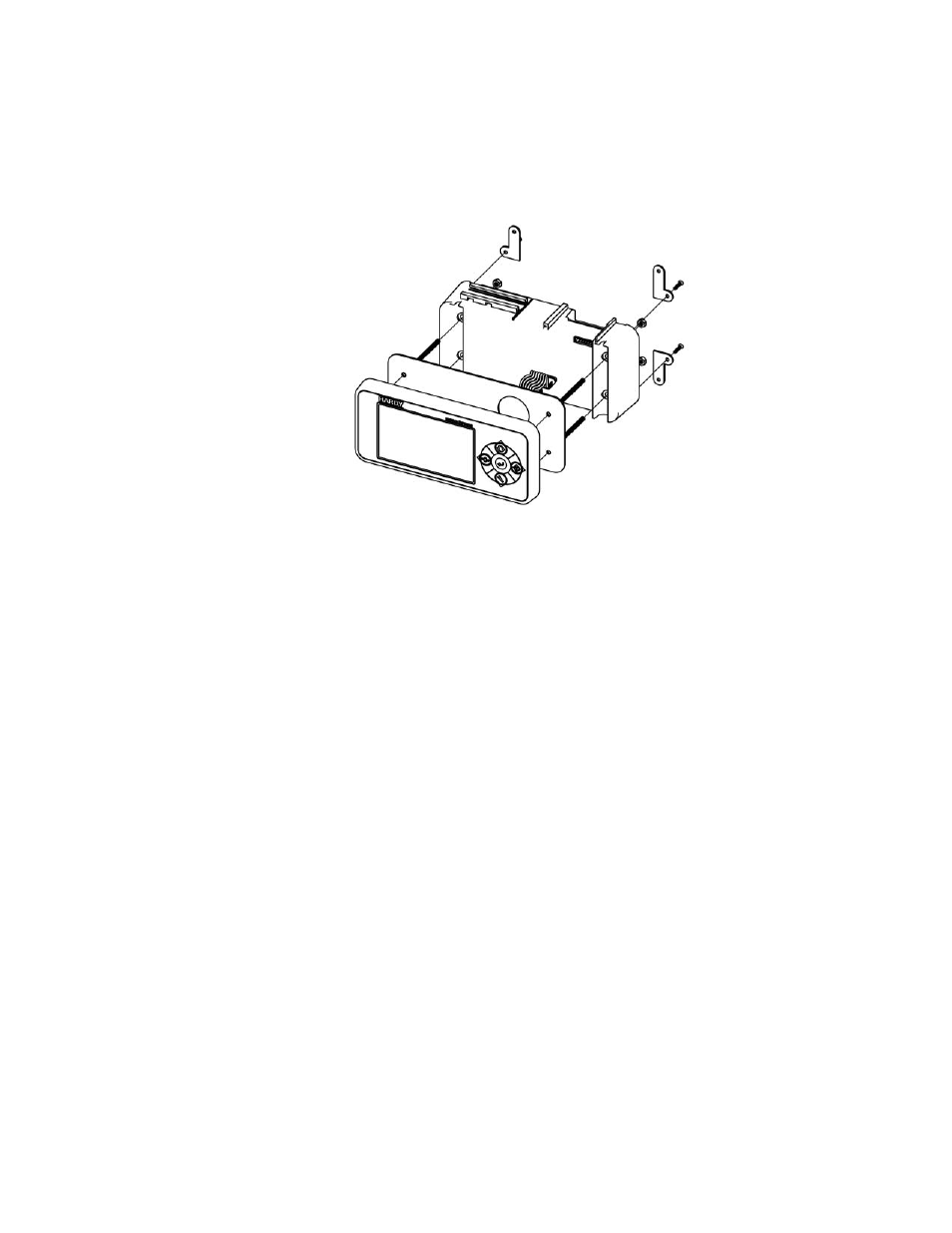

Wall Mount Assembly exploded from the front with optional mounting kit

To wall mount the HI 6300 series instrument, the display and weight processor need to be
assembled; then the assembled instrument can be mounted onto the wall.

Step 1. Connect and hand tighten the four screw rods into the front panel display

Step 2. Connect the front panel display cable assembly

Step 3. Push the screw rods and cable assembly though the holes in the gasket.

Step 4. Position the enclosure with the connectors pointing downwards

Step 5. Align the screw rods with the holes in the enclosure

Step 6. Connect the cable assembly

Step 7. Slide the enclosure onto the screw rods until flush with the gasket

Step 8. Using the washers and nuts supplied, tightened the nuts onto the screw rods
