FRITSCH PULVERISETTE 6 classic line - Manual (Page 13)

GTM-System page 10

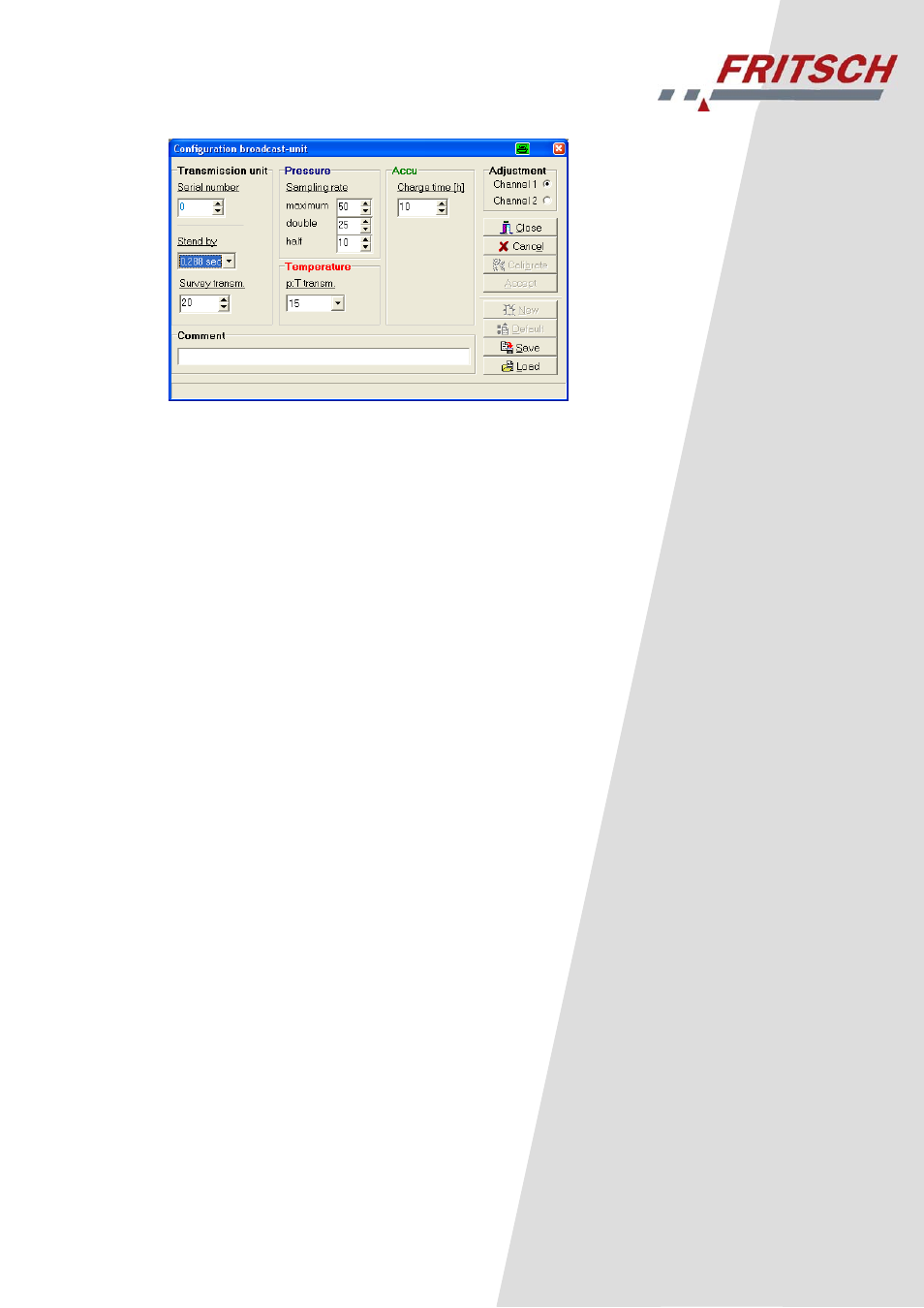

2.7.1 Menu Options / configuration
broadcast-unit
• Serial number: Can only be changed when administrator mo-
dus is being activated.
• Stand by: Time period till transmitter unit is being switched
off for energy saving reasons. Only in case of
significant measuring changes will further data
transfer occur.
• Survey transmission: After the period of (stand by) x (survey
transmission.) data will be exchanged
on a cyclic basis, even if equal values
exist.
Pressure
• Sampling rate: Dynamic scanning rate for changing measuring
values.
Example: Slightly changing measuring values will be transmitted be-
tween greater time periods on a cyclic basis, greater changes in shorter
periods.
Thus, charge in the accumulator is being saved.
Temperature
• p:T–Transmission: Ratio between pressure and temperature
measurings.
Example: p:T = 15, the quickly changing pressure will be -depending on
circumstances - measured 15 times; after this the relatively slowly
changing temperature one time.
Accu
• Charge time: The accumulator's conservation of energy starts
after the set charging period.
• State: Charging limits are being entered in the administrator
mode to display warnings in the GTM II-Software.
Comment
User defined marking of the settings.
Adjustment
The set values apply either for channel 1 or the optional channel 2.
Save/Load
Saving of setting as a record or loading of different settings.
