Bluetooth Module
A D I V I S I O N O F T R I M B L E
Using the Optional Modules 41
first.
11. To permanently unpair a Bluetooth module, go back to the Blueman window, right-
click on the device, and select “Remove...“. You should not have to do this unless
you wish to pair the Bluetooth module with a different host.
Windows Bluetooth Keyboard Setup
1. Right-click the Bluetooth icon in the Windows notification area (at lower right.)
2. If you have no Bluetooth icon, go to Start / [Control Panel] / Devices and Printers
3. Select Add a Device
4. Wait for the device to appear. The name will probably be RNBT-nnnn, where nnnn
is the last 4 digits of the module’s Bluetooth MAC address.
5. Right-click the device and select Properties. Wait for the list of Bluetooth services to
appear. Check Drivers for keyboard, mice, etc (HID) and press OK. (NOTE: This
method tends to be more reliable than selecting the device and pressing Next. That
method seems to be hard-coded to a routine that always asks you to enter a code on
the peripheral device. The RN-42 doesn’t really support this.)
6. Wait for drivers to install.

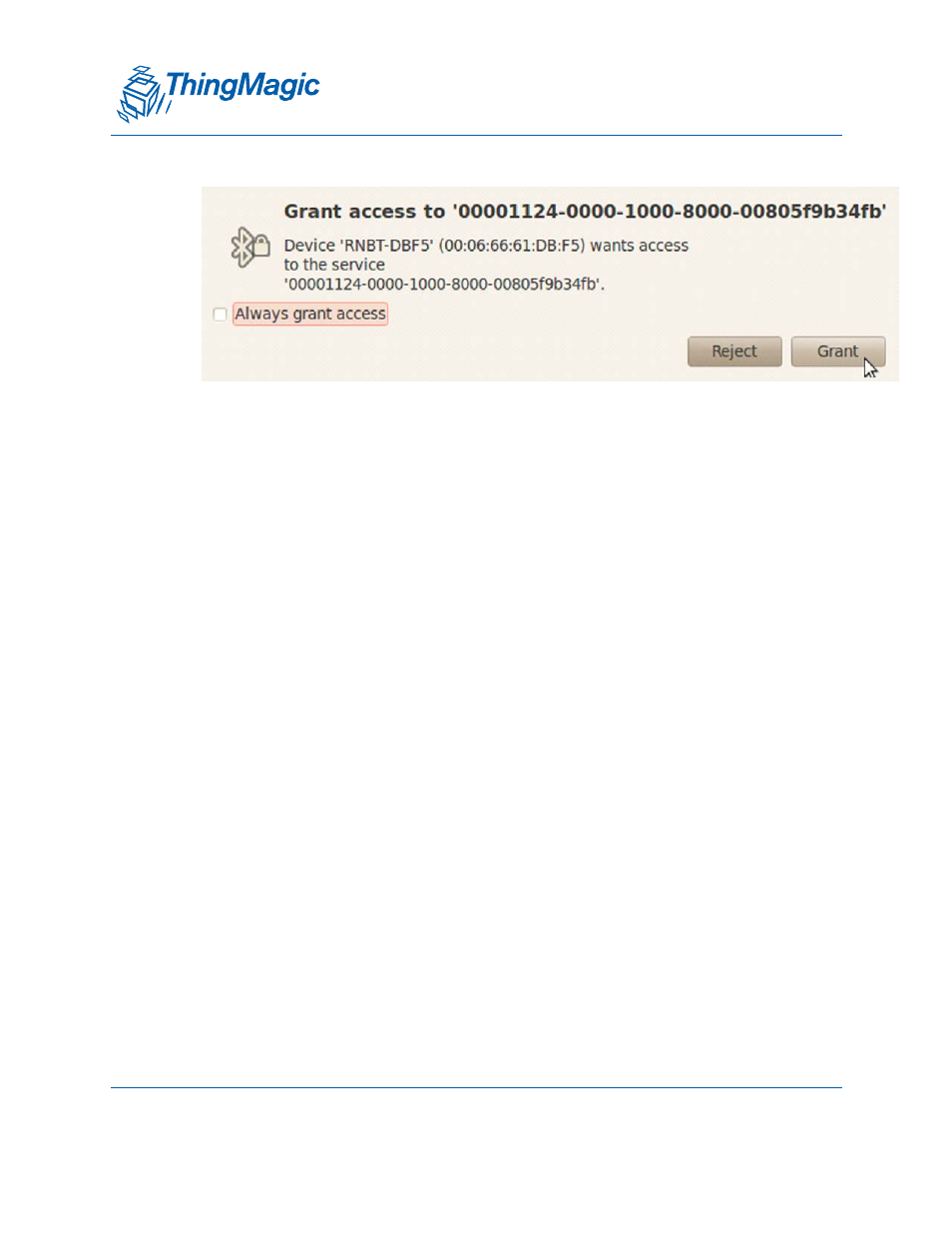

7. Dismiss the success message, and you should see a request to connect. A
Bluetooth device is trying to connect. Click to allow this. Click on this
notification.
8. Click Next in the Finish connection to this device dialog that appears.
