112 Hardware Reference Guide
operation. If the programmer wishes this function to be disabled under normal operation,
they can have the program define this MCU pin as a normal programmable input pin.

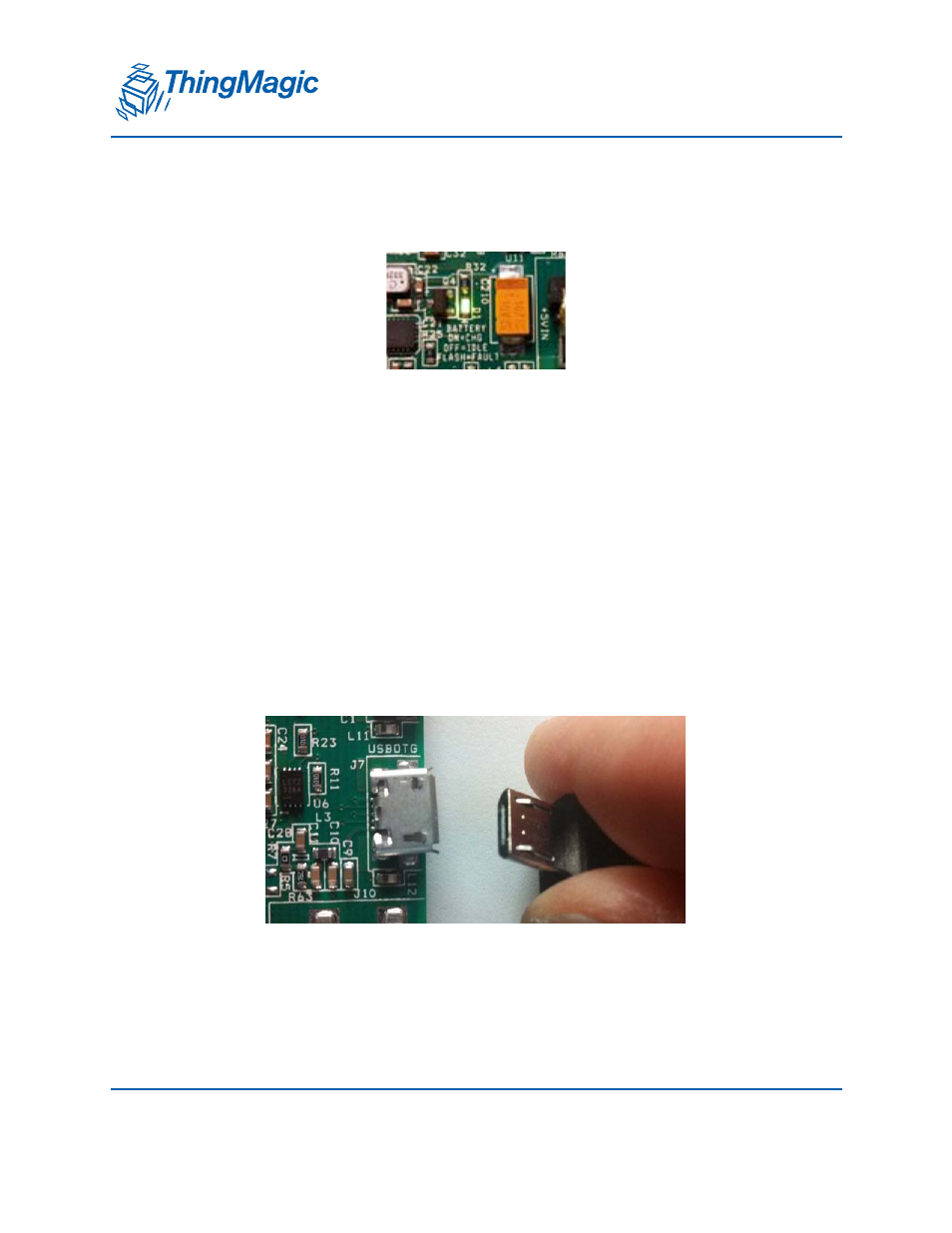

A green LED on the xPRESS motherboard (D1) indicates the charging status of the
battery as follows:

On = Charging

Off = Charged or no battery present

Flashing approximately 1.5 times per second = NTC fault

Flashing approximately 6 times per second = Bad battery
The Charging LED states are controlled by the Battery Charging Controller IC and are not
programmable.
OTG USB Interface
The micro-AB USB connection (“USBOTG”, J7) is the primary data connection to the
xPRESS motherboard. This does not require a special USB driver. It is normally
connected to a USB host interface, such as is found on a PC, but this port can also allow
