Using SAM-BA
1. Erase the xPRESS motherboard memory if you haven’t done so already. (Power off.
Short ERASE jumper. Power on. Wait 10 seconds. Remove ERASE jumper.)
2. Plug the USB cable into the USBOTG interface (not DEBUG).

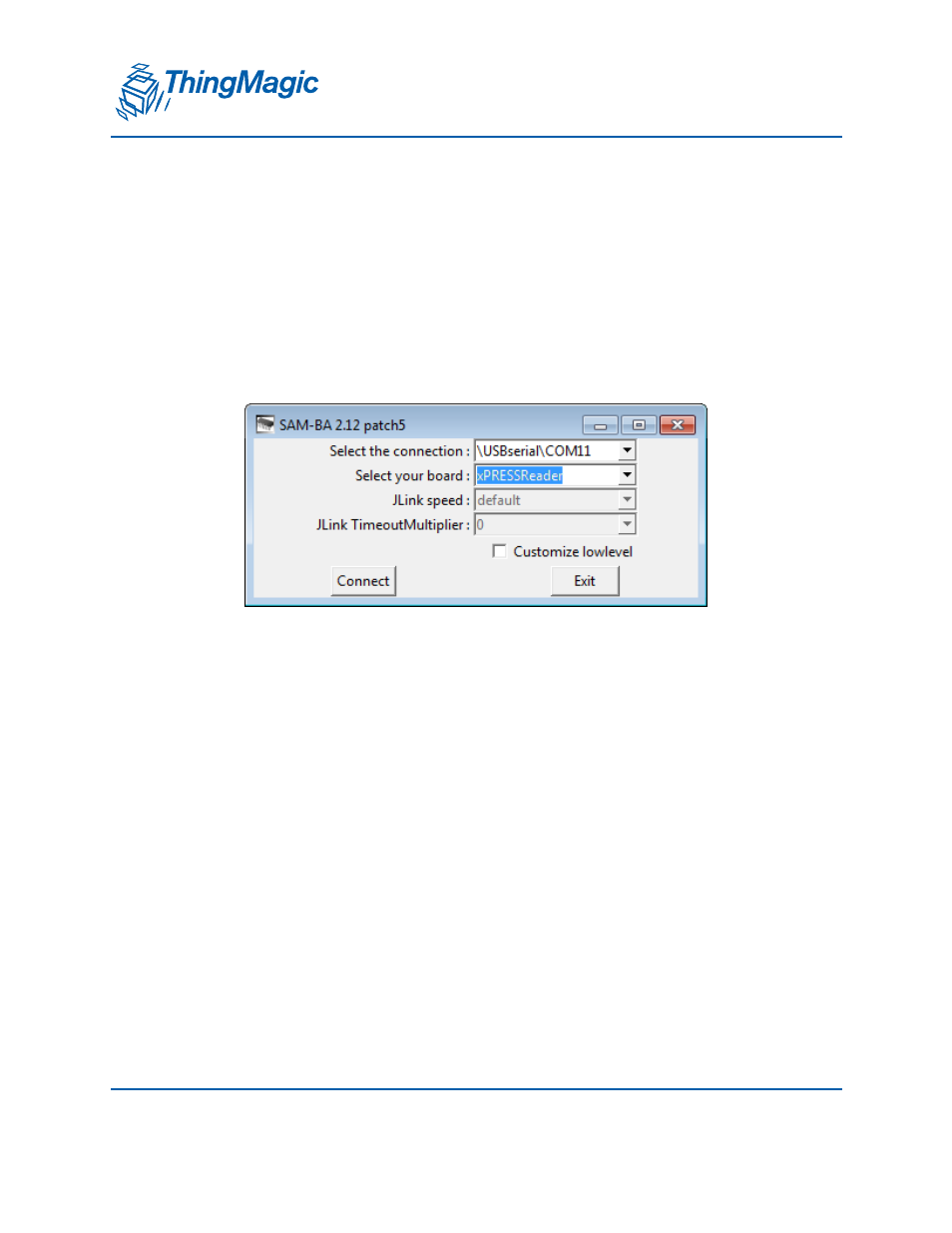

3. Run the SAM-BA application as Administrator and Select your board as
xPRESSReader and click on Connect
After pressing Connect, you will see the following screen:
