Hardware Setup
A D I V I S I O N O F T R I M B L E
Quick Start Guide
23

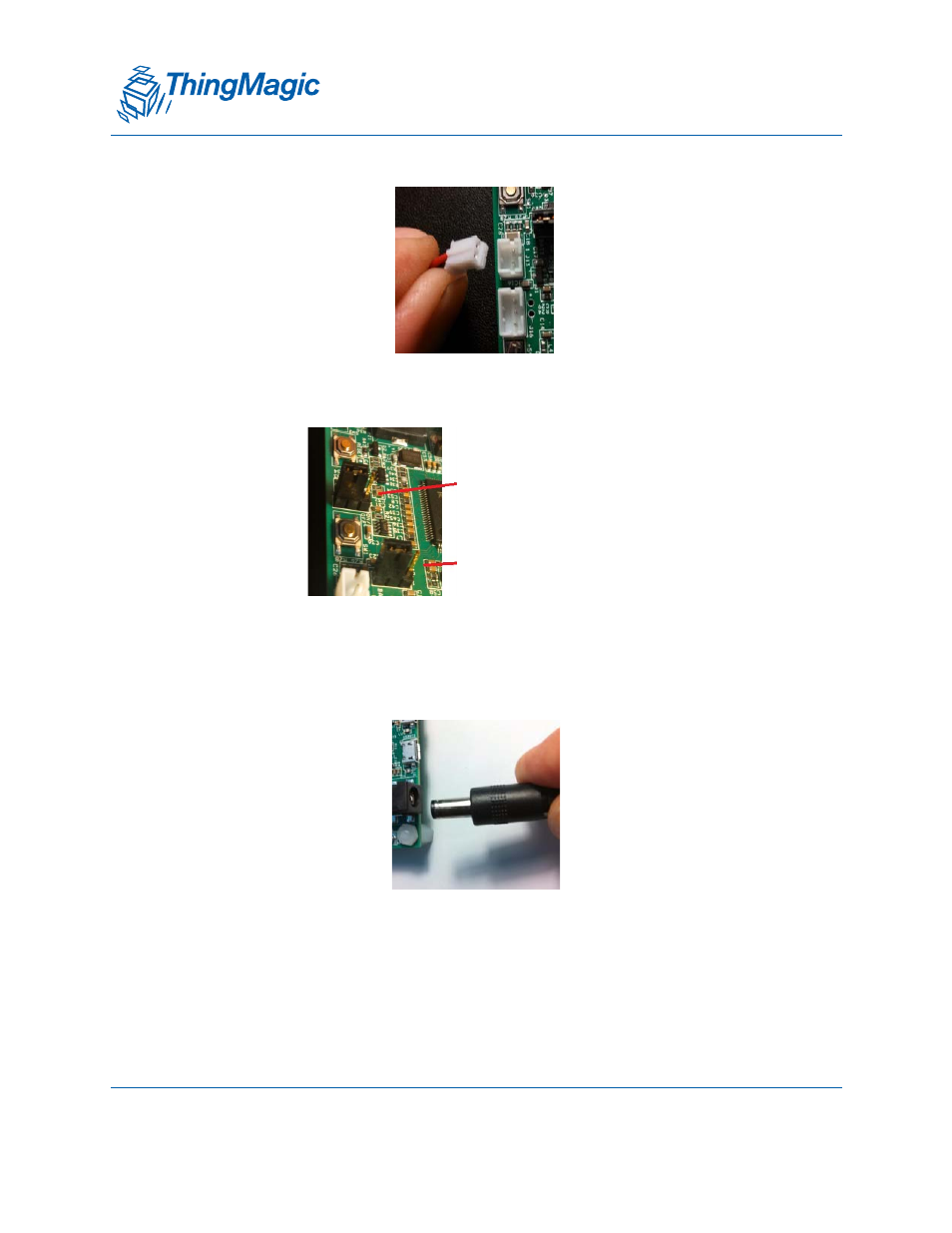

5. Make sure the POE jumper is in the correct position for AC operation, as shown in the
photo below. Later, if powering the module from a POE module, you can move the
jumper into the “POE” position.
6. Move the Always-on jumper to the position away from the board edge if you want the
board to be on whenever the power source is present. Otherwise, leave it in the
position closest to the board edge and use the on/off switch to control power to the
system.
7. Plug the AC adapter into the motherboard and connect it to an AC power source.
8. If you wish to run the pre-installed RFID Sensor application, move your PC cursor to
a database field or document where you would normally enter text via a keyboard.
9. Place one or more tags near the antenna and push the “User Switch” once.
Always-on jumper.
Keep in this position
to use on/off switch
POE jumper.
Keep in this position
to power via AC
adapter
to start
