4

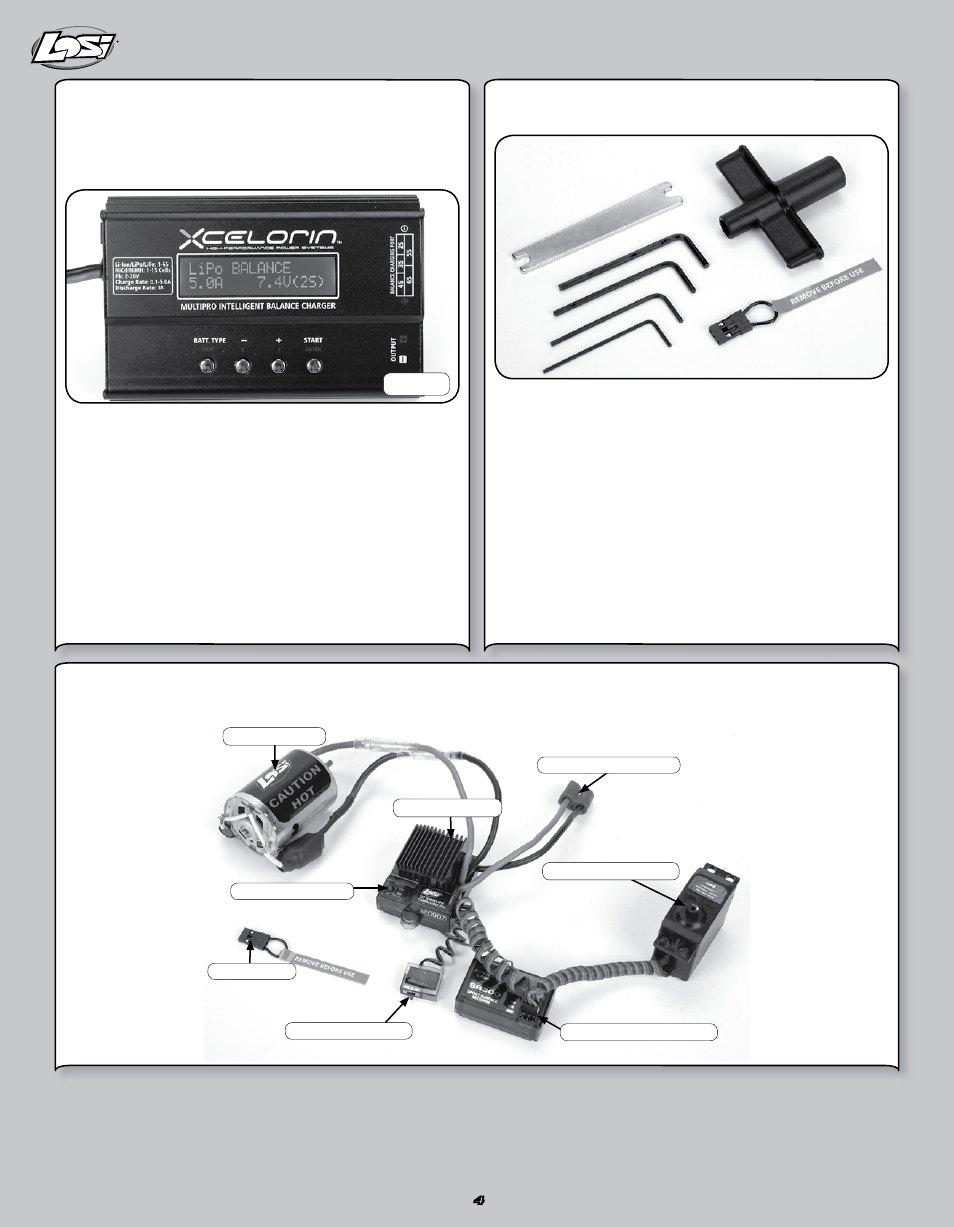

XXX-SCT ELECTRONICS SySTEM OvERvIEw
BIND PLUG
ON/OFF SWITCH
LOSI MSC12L
STEERING SERVO
SETUP BUTTON
EC3 ™ BATTERY PLUG
LOSI MOTOR
SPEKTRUM SPMSR300
PEAk DETECTION ChARGER
Peak detection chargers monitor the battery during charging and
automatically shut off upon full charge. You can either purchase a peak
detection charger that plugs into a household AC wall socket or one
that requires you to also purchase a 12V power supply.
LOSB9602
If using a charger other than a peak detection charger, make sure your
battery is fully discharged prior to charging. Many of these have a
15–20 minute timer that allows you to set a charge time. If the battery
is not fully discharged, you can potentially over-charge your battery
pack.
Do not charge any battery unattended, and monitor for heat
build up. If the battery pack is more than warm to the touch, immedi-
ately discontinue charging. Read all safety precautions supplied by the
charger and battery manufacturer.
SUPPLIED AND REQUIRED EQUIPMENT
Supplied tools
2-Way wrench • Transmitter/Receiver BIND Plug •
4 Hex Wrench “L” shaped • .050, 1/16, 5/64, and 3/32 •
Flat Turnbuckle Wrench • 4 AA Alkaline Batteries •
Recommended Accessories
Hobby grade knife • Needle nose pliers •
Side cutting pliers • Safety goggles •
Soldering iron • Double-sided tape (LOSA4004) •
CA glue (LOSA7880 or LOSA7881) •
Required Equipment
A 6- to 7-cell NiMH battery pack. Or with proper knowledge, LiPo •
battery packs.
NiMH battery charger with automatic peak detection
•
recommended (LiPo charger if using LiPo battery).
