TRACTOR - ■ MODEL NUMBER 917.271050

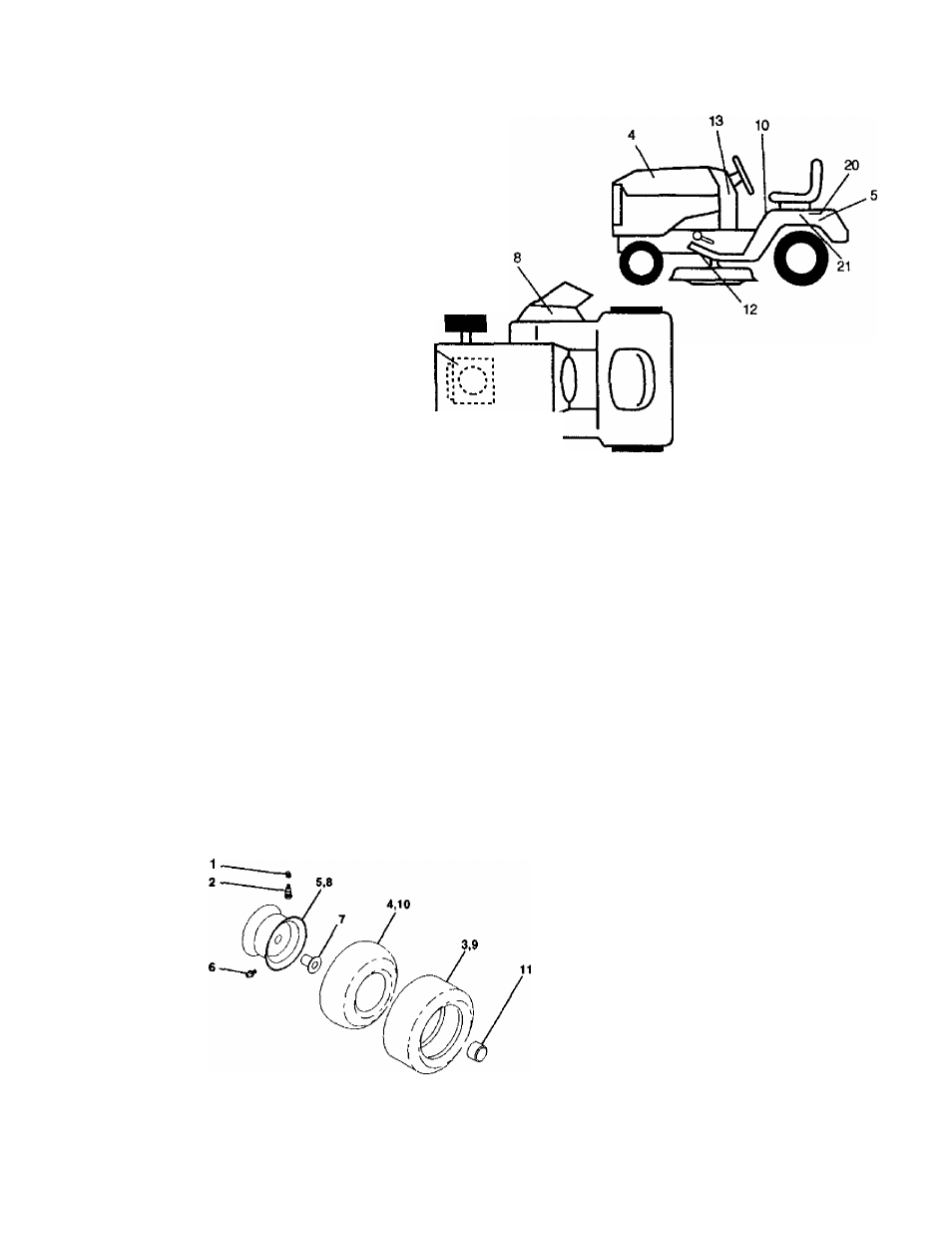

DECALS
è©
14
Éii
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
1 156368 Decal, Oper. Instr. 13 163261 Decal. Dash Panel
2 171762 Decal, Replacement 14 160396 Decal, V-Belt Schematic
3 171698 Decai, Hood, R.H. 20 149516 Decal Battery Dngr/Psn Eng
4 171699 Decal, Hood, L.H, 21 163207 Decal, Fender Sd. Wht
5 138047 Decal, Battery
- -
138311 Decal, Lift Handle
6 133644 Decal, CustomerMaintenance
- -
165800X428 Pad Footrest LH STLT
8 166887 Decal, Deck Mower EZ
- -
165799X428 Pad Footrest RH STLT
9 163204 Decal, Fender, Craftsman
- -
172203 Owner's Manual, English
10
12 156439
146046 Decal, FenderDanger
Decal, V-Bett Drive Schematic - - 172204 Owner's Manual, Spanish
WHEELS & TIRES KEY PART
NO. NO.
1
2
3
4
5
6
7
8
9
10
11
59192
65139
106222X
59904
106732X427
278H
9040H
106108X427
122082X
7152J
104757X
144334
DESCRIPTION
Cap Value Tire .
Stem Value
Tire FTs15X60*6 Service
Tube Inner Front #35060
Rim Asm 6"front White Service
Fitting Grease
Bearing Piange
Rim Asm 8"rear White Service
Tire R Ts 20 X 10-8 Service
Tube Rear 9 5X8 Service
Cap Axie Bik 1 50 X 1 00
Seaiant, Tire (10 oz. tube)
NOTE: Ail component dimensions given in U.S. inches
1 inch = 25.4 mm
