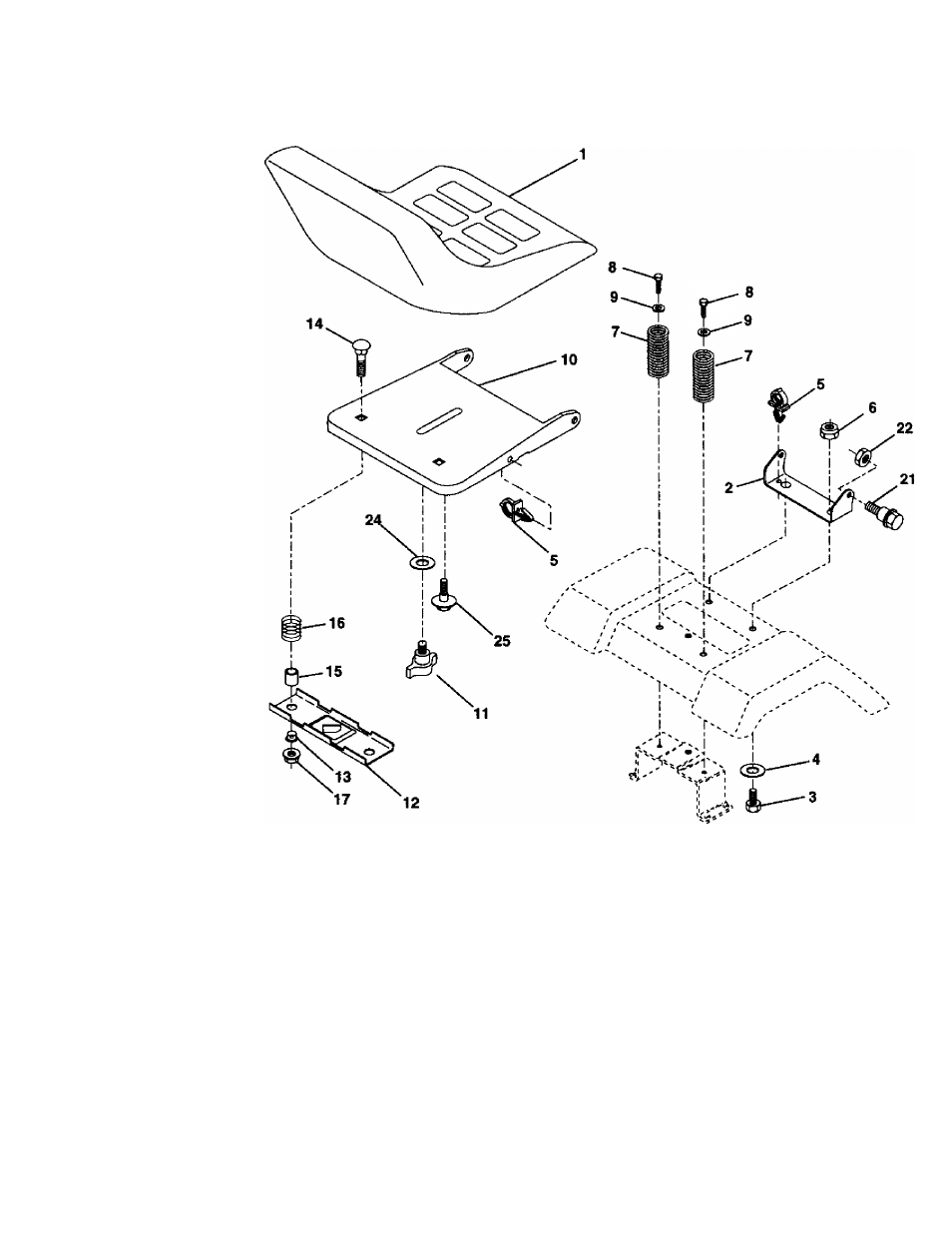

SEAT ASSEMBLY
TRACTOR - - MODEL NUMBER 917.271050
KEY
PART
NO. NO.
1
2
3
4
5
6
7
8
9
10
11
12
140122
140551
71110616
19131610
145006
STD541437
124181X
17000616
19131614
155925
166369
121246X
DESCRIPTION
Seat 3350 Blk/blk Craftsman
Bracket Pnt Pivot Seat (bik )
Bolt FinHex3/8'16uncX1
Washer 13/32 X 3/4 X 10 Ga
Clip Push In Hinged
Nut Hex Lock w/lns 3/8-16 Unc
Spring Seat Cprsn 2 250 B!k Zi
Screw 3/8-16 X 1
Washer 13/32 X 1 X 14 Ga
Pan Pnt Seat (bik)
Knob Seat Adj Wing nut
Bracket Pnt Mounting Switch
KEY
PART
NO. NO.
13
14
15
16
17
21
22
24
25
121248X
72050412
134300
121250X
123976X
171852
STD541431
19171912
127018X
DESCRIPTION
Bushing Snap Bik Nyi 50 id
Bolt Rdhd Sht Nk 1/4-20x1-1/2
Spacer Split 28 X 96 Zinc
Spring Cprsn 1 27 Bik Pnt
Nut Lock 1/4 Lge Fig Gr 5 Zinc
Bolt Shoulder 5/16-18 Unc-2A
Nut Hex Lock w/lns 5/16-18
Washer 17/32 X 1-3/16 X12Ga.
Bolt Shoulder 5/16-18X62
NOTE:
Ail component dimensions given in U.S. inches
1 inch = 25.4 mm
