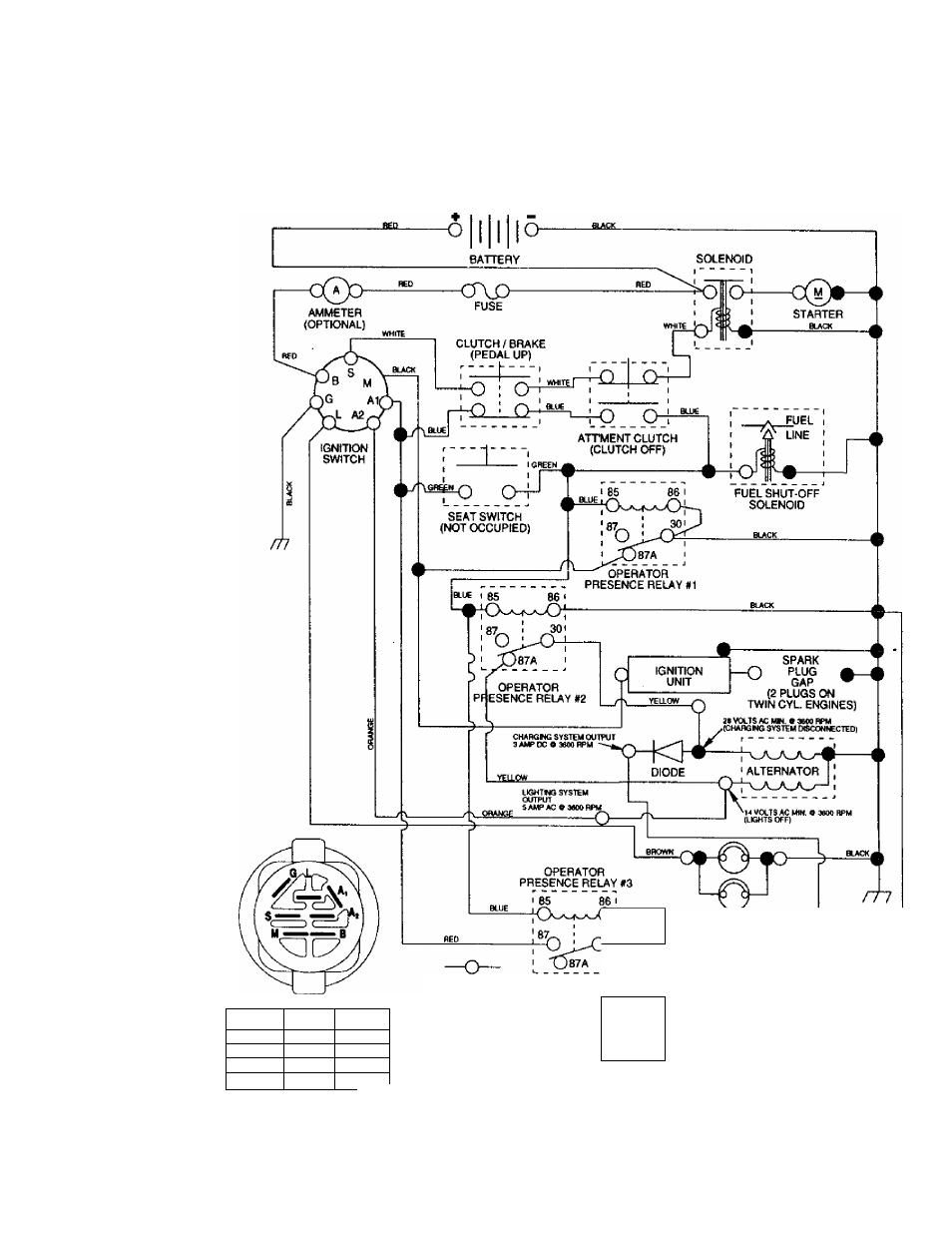

SCHEMATIC

TRACTOR - - MODEL NUMBER 917.271050

IGNITION SWITCH

posmoN

CIRCUIT "MAKE"

OFF

MtG+A1

NONE

RUNAJGHT B+A1

A2+L

RUN

B+A1

NONE

START B + S + A1 NONE

REMOVABLE

CONNECTIONS

NON-REMOVABLE

CONNECTIONS

30»

--- -

86 ^85

liso

RELAY

WIRING INSULATED CUPS

NOTE: IF WIRING INSULATED CUPS WERE REMOVED FOR
SERVICING OF UNIT, THEY SHOULD BE REPLACED TO
PROPERLY SECURE YOUR WIRING.

NOTE

YOUR TRACTOR IS EQUIPPED
WITH A SPECIAL ALTERNATOR
SYSTEM. THE LIGHTS ARE NOT
CONNECTED TO THE BATTERY,
BUT HAVE THEIR OWN
ELECTRICAL SOURCE.
BECAUSE OF THIS, THE BRIGHT
NESS OF THE LIGHTS WILL
CHANGE WITH ENGINE SPEED.
AT IDLE THE LIGHTS WILL DIM.
AS THE ENGINE IS SPEEDED UP,
THE LIGHTS WILL BECOME
THEIR BRIGHTEST.
