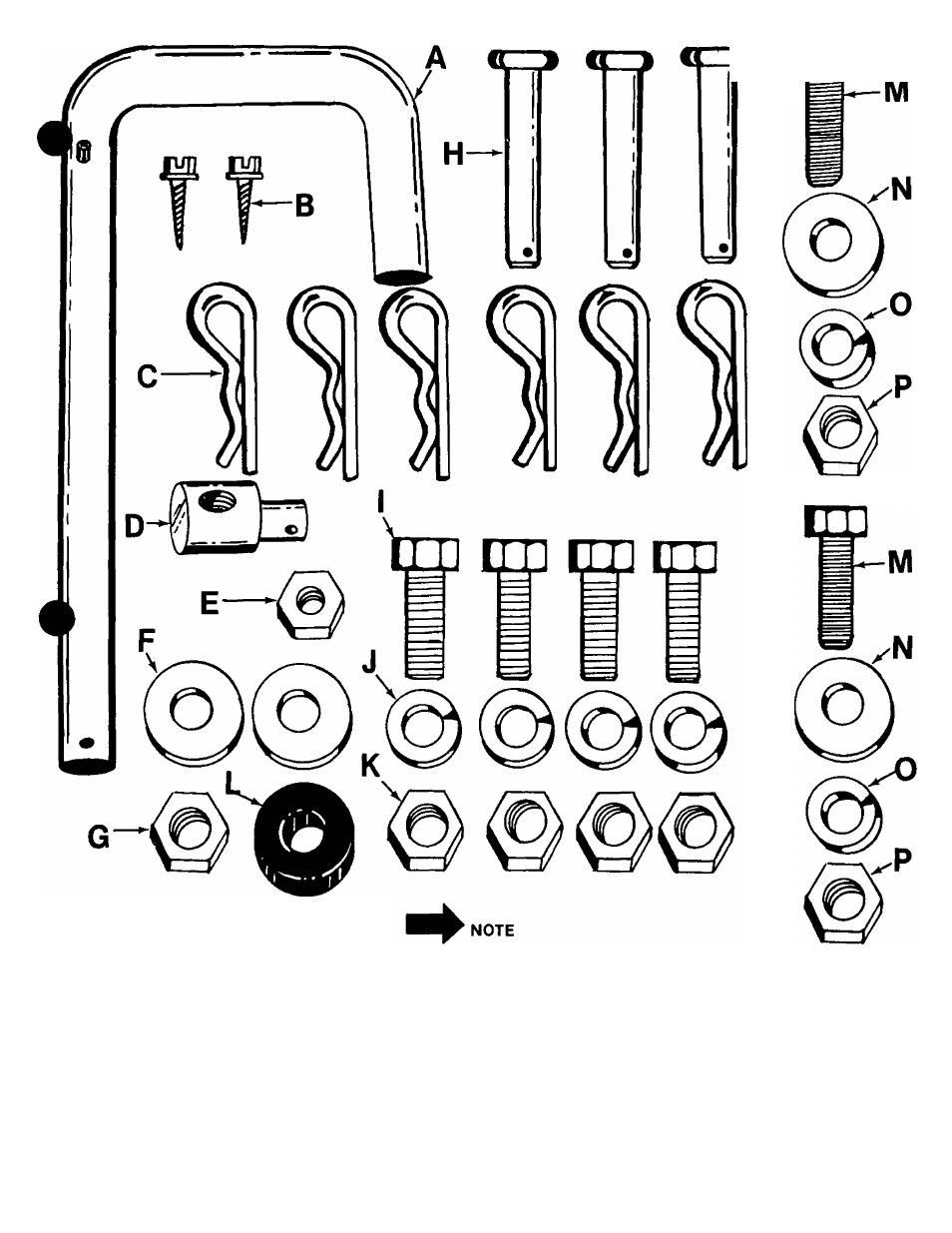

FIGURE 3. (SHOWN IN FULL SCALE)

The letters listed below will be re

ferred to throughout the following

text for easier hardware identifica

tion.

LIST OF CONTENTS IN HARDWARE PACK:

A (1) “U”-Clevis Pin Vz” Dia.

B (2) Self Tapping Screws #8 x .62”

C (6) Hair Pin Cotters

D (1) Ferrule
E (1) Hex Center Locknut 5/16-18 Thread
F (2) Flat Washers

G (1) Hex Center Locknut 5/16-18 Thread

H (3) Clevis Pins

I (4) Hex Screws 3/8-16 x 1.00”

J (4) Lockwashers 3/8”

K (4) Hex Nuts 3/8-16 Thread
L (1) Rubber Washer
M (2) Hex Screws 3/8-24 x 1.00"
N (2) Belleville Washer

O (2) Lockwashers 3/8”

P (2) Hex Nuts 3/8-24 Thread
