TKUMSEH 4-aOE ENGINE
MODEL NUMBER: HM80-155162E
Ref.
No,
Part
No,
Part Name
Ref.
No.
Part
No.
Part Name
148
149
161
162
33267
650513
631979
610842
Bracket, Air cleaner
Nut, Wing, 1/4-20
Carburetor (Incl. No. 75)
Magneto (The complete magneto is
not available as an assembly. The
magneto number is shown for refer
ence purposes only. Order component
parts individually, as shown in parts
list.)
163
165
590479
33279C
694138
Starter, Rewind
Gasket Set (Incl. items marked *)
Owners Manual
^IndicatesParts Included in
Gasket Set, Ref. No. 165.

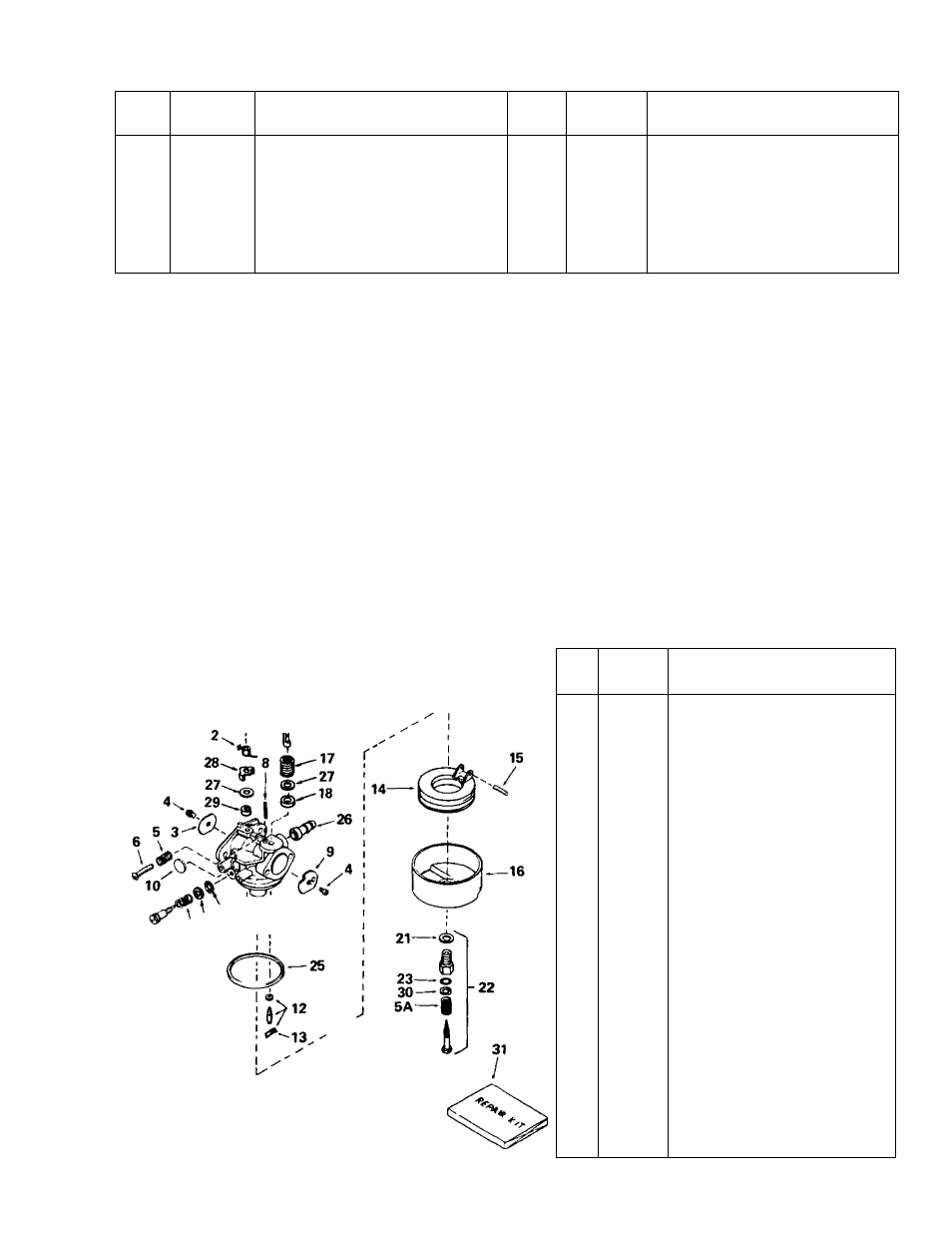

CARBURETOR NO. 631979
Ref.
No.
Part
No.
—
Part Name
631979
Carburetor
1
631776
Shaft & Lever Assy., Throttle
2
631970
Spring, Throttle return
3
631778
Shutter, Throttle
4
650506
Screw, Rd. hd., 4-40 x 3/16
5
630766
Spring, Idle regulating screw
5A
630738
Spring, Main adjustment screw
6
650417
Screw, Idle regulating
7
631812
Shaft & Lever Assy., Choke
8
630735
Spring, Choke return
9
631753
Shutter, Choke
10
*630748
Plug, Welch
11
*631027
Plug, Welch
12
*631021
Inlet Needle, Seat & Clip Assy.
(Incl. No. 13)
13
631022
Clip, Inlet needle
14
632019
Float, Carburetor
15
*631024
Shaft, Float
16
631867
Bowl, Float
17
632043
Spring
18
631183
Washer, Felt
21
27110
Gasket, Bowl-to-body
22
*631583
Adjustment Screw Assy., Main
(Incl. Nos. 5A,21,23&30)
23
630740
"0" Ring, Adjustment screw
24
*630898
Screw, Idle adjustment
25
*631028
Gasket, Bowl-to-body
26
631803
Fuel Fitting
27
631184
Washer
28
631972
Retainer, Seal
29
631971
Seat, Oust
30
630739
Washer, Flat
31
631978
Repair Kit (Incl. items marked *)
I
> I
*io23ol '
\
I
24
”
25
