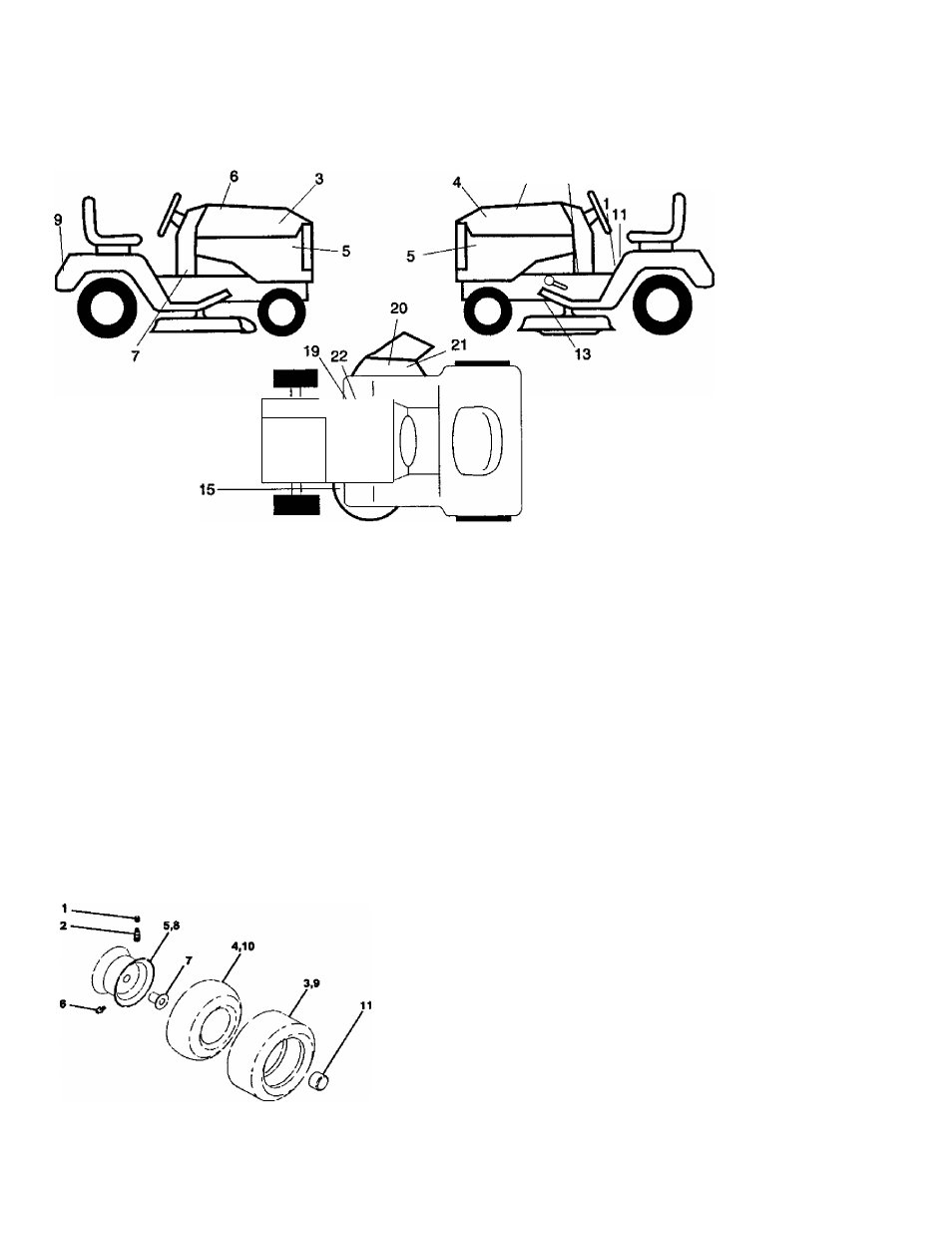

DECALS
TRACTOR -MODELNUMBER 917.271910
8 7
^ ;
\
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
1 156439 Decal, Fender Danger Sears 15 160396 Decal, Mower Drive Schematic
2 181659 Decal, Engine 19 138047 Decal, Battery Diehard Sears
3 177278 Decal, Hoiki, R.K. 20 172331 Decal, Deck Sears
4 177279 Decal, Hood, LM. 21 179128 Decal, Deck
5 177253 Decal, Hood Side 22 149516 Decal, Battery
6 133644 Decal, Maintenance
- .
138311 Decal, Lift Handle
7 181824 Decal, Lower Dash - -
165800X428 Pad Footrest LH STLT
8 181419 Decal, Rpicmnt - -
165799X428 Pad Footrest RH STLT
9 163204 Decal, Fender, Craftsman Gold
- -
181312 Owner's Manual, English
11
13 156368
146046 De«d, Fender STLT Oper Inst E/S
Decat, V-Belt Dr Sch Tractor ~ ■ 181313 Owner's Manual, Spanish
WHEELS AND TIRES KEY PART
NO. NO.
DESCRIPTION
1 59192 Valve Cap, Tire
2 65139 Stem, Valve
3 106222X Tire, Front
4 59904 Tube, Front Tire
(Not Provided, Service Item Oniy)
Rim, Front
Fitting, Grease (Front Wheel Only)
Bearing, Flange (Front Wheel
Only)
106108X427 Rim. Rear
122082X
Tire, Rear
7152J Tube, Rear Tire
(Not Provided, Senrice Item Only)
104757X428 Cap, Axle
NOTE: Ail component dimensions given in U. S.
inches 1 inch s 25.4 mm
5 106732X427
6 278H
7 9040H
8
9
10
11
