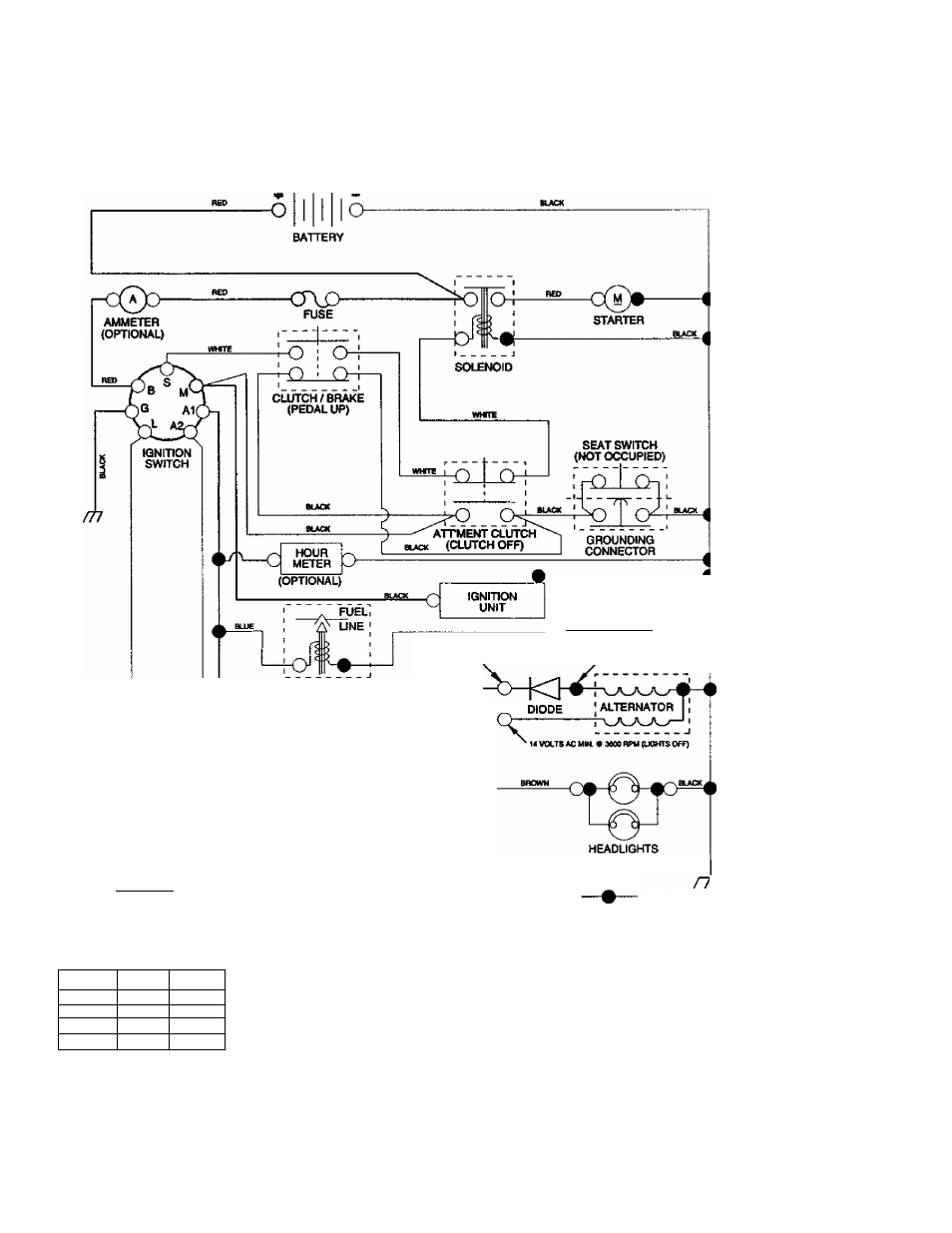

SCHEMATIC

TRACTOR - - MODEL NUMBER 917.271910

M,j__ _____8

IGNITION SWITCH

FUEL SHUT-OFF SOLENOID

(IF SO EQUIPPED)

CHARONCi SYSTEM OUTPUT
3AUPDC«W00BPM

UGMTINQ EVETEU OUTPUT
SAMP AC* MOO npM

SPARK

PLUG M

GAP 1

(2 PLUGS ON

TWIN CYL ENGINES)

20 VOLTS AC MM. • 3000 RPM
[CHAROMO SYSTEM CDSCOWCCTEOI

NOTE

YOUR TRACTOR IS

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM.

THE LIGHTS ARE NOT

CONNECTED TO THE

BATTERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE.
BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE

SPEED. AT IDLE THE LIGHTS

WILL DIM. AS THE ENGINE IS

SPEEDED UP, THE UGHTS

WILL BECOME THEIR BRIGHTEST.

POsmoK

CIRCUIT

"MAKE”

OFF

M+6+A1

NONE

RUN/UGHT

B+A1

A2+L

RUN

S+A1

NONE

START

B + S + A1

NONE

NON-REMOVABLE

CONNECTIONS

REMOVABLE

CONNECTIONS

WIRING INSULATED CUPS

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING.
