Baseline Systems BaseStation 3200 in X/XS Cabinet - Manual (Page 3)

BL-3200WF-X Wi-Fi Module for X/XS Cabinet
Installation Guide
1-866-294-5847
Rev 9.30.2014
www.baselinesystems.com

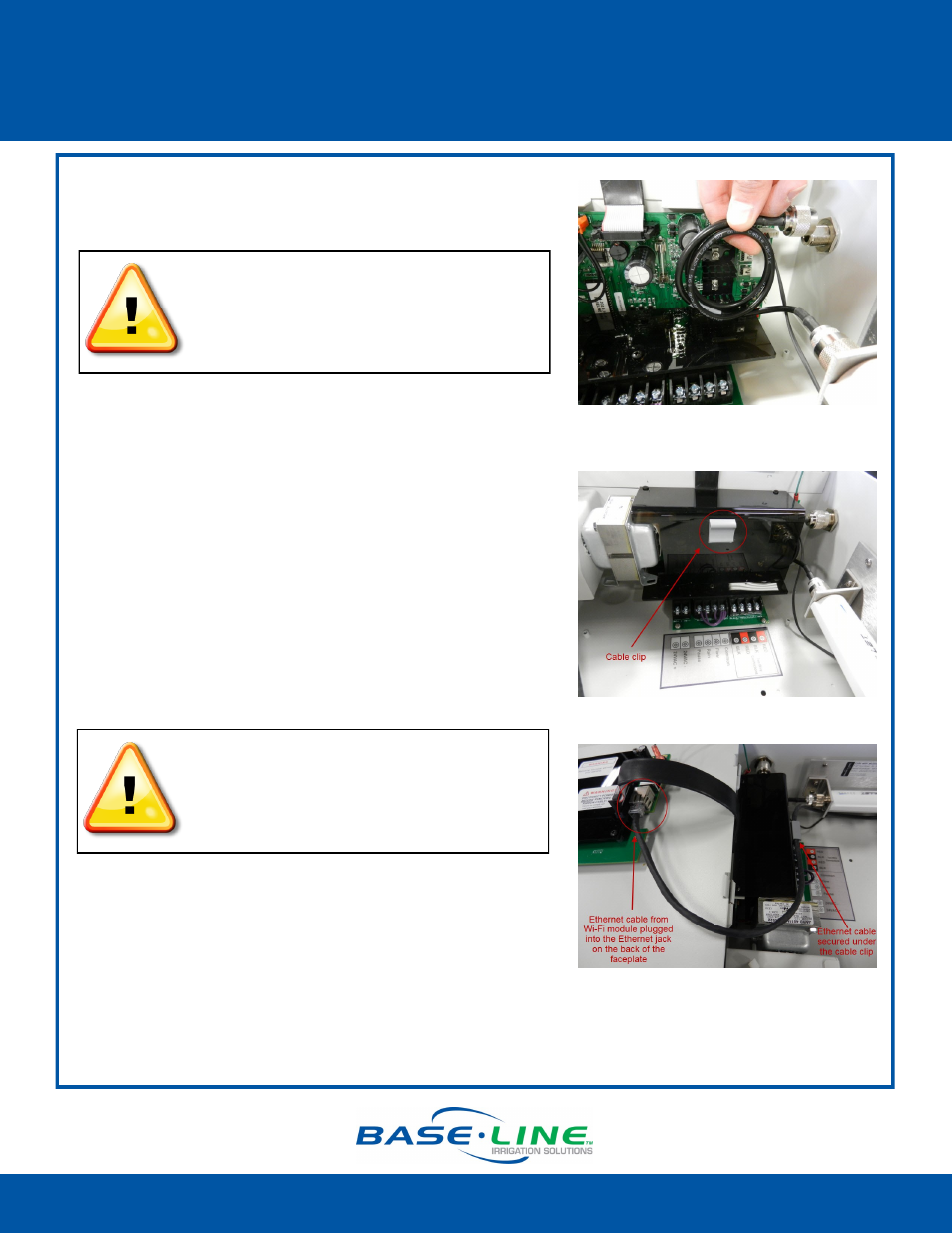

18. Keep the antenna cable looped, and then reposition
the control board cover so it covers the antenna
cable and holds it in place.
19. Tighten the screws on the control board cover.
20. Remove the paper backing on the adhesive on the
cable clip, and then attach the cable clip to the
control board cover as shown in the illustration.
21. Secure the Ethernet cable under the cable clip, and
then plug the end of the Ethernet cable into the
Ethernet jack on the back of the controller’s
faceplate.
22. Check the connectors on the antenna cable on the
antenna end and the Wi-Fi module end to make sure
they are tight.
IMPORTANT! Do not bend or kink the antenna
cable.
Page 3
23. Power up the controller.
24. Make sure the indicator lights on Wi-Fi module are
illuminated.
25. Follow the instructions in the Wi-Fi Module
Configuration Guide to complete the setup in the
controller.
17. Gently gather the antenna cable into two loops, and
then connect the end of the antenna cable onto the
stem of the antenna and hand-tighten it.
IMPORTANT! Make sure the antenna cable remains
securely attached to the connector on the Wi-Fi
module. If the module is powered up with a loose or
disconnected antenna, damage may occur to the
circuitry. This damage is not covered by warranty.
