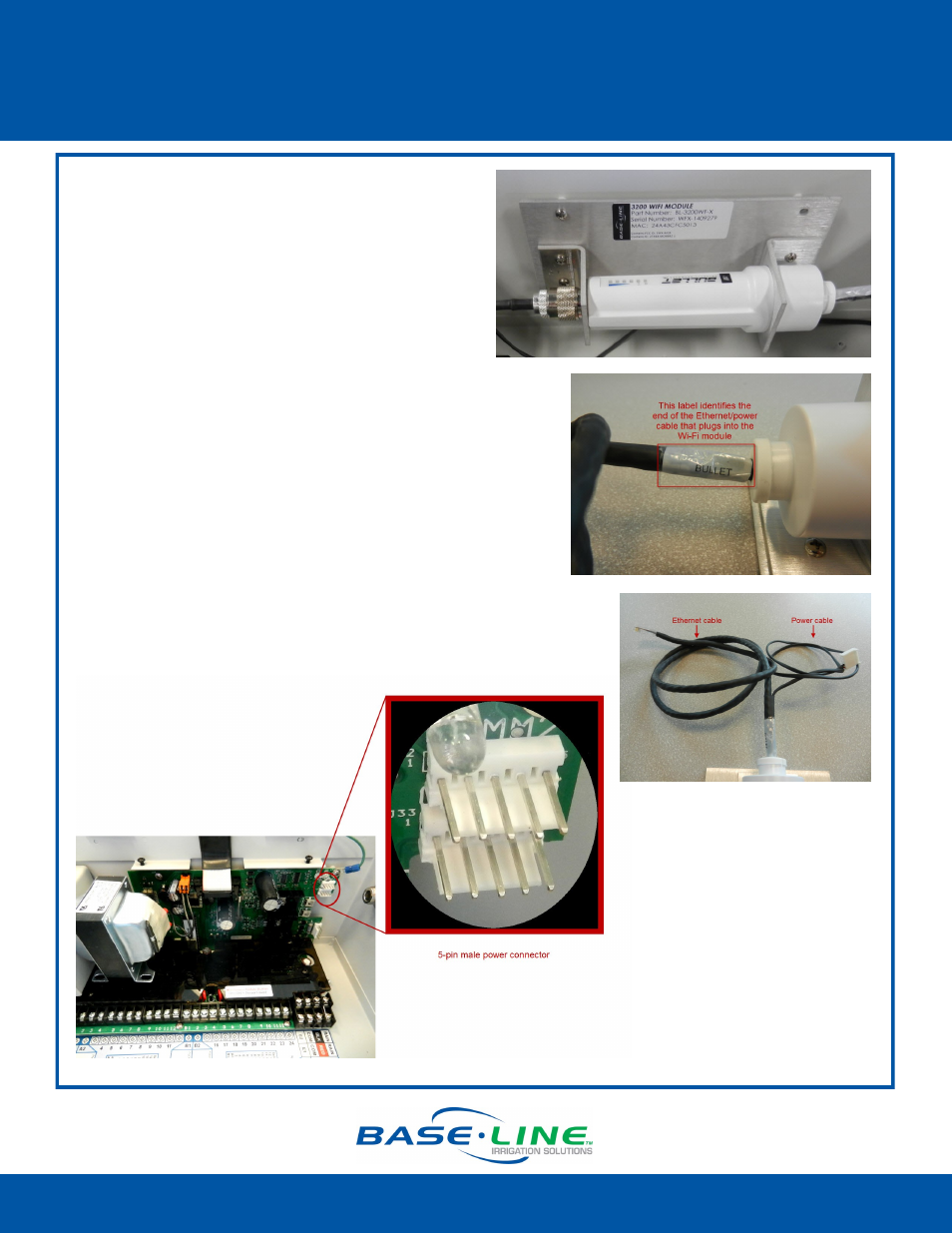

12. Carefully turn the Wi-Fi module in the
mounting bracket so the indicator lights are
visible.
13. Inspect the cable coming from the right end
of the Wi-Fi module. A label identifies the
RJ45 connector that is plugged into the Wi-Fi
module. If you ever need to disconnect or
replace this cable, make sure to plug the
labeled end into the Wi-Fi module. This cable
supplies power over Ethernet and plugging it in
incorrectly will damage the irrigation controller.
14. Notice that the cable coming from the right end of
the Wi-Fi module splits in two. The thin cable with the
white connector is the power cable. The thicker
cable is Ethernet.
15. Inspect the power cord to ensure that it is not
wrapped around the Ethernet cable. If it is, unwrap
it.
16. Plug the 5-pin connector on the power cable into
one of the 5-pin male power connectors on right
end of the controller board.
