9 FS2 Quick Start Guide — Quick Workflows

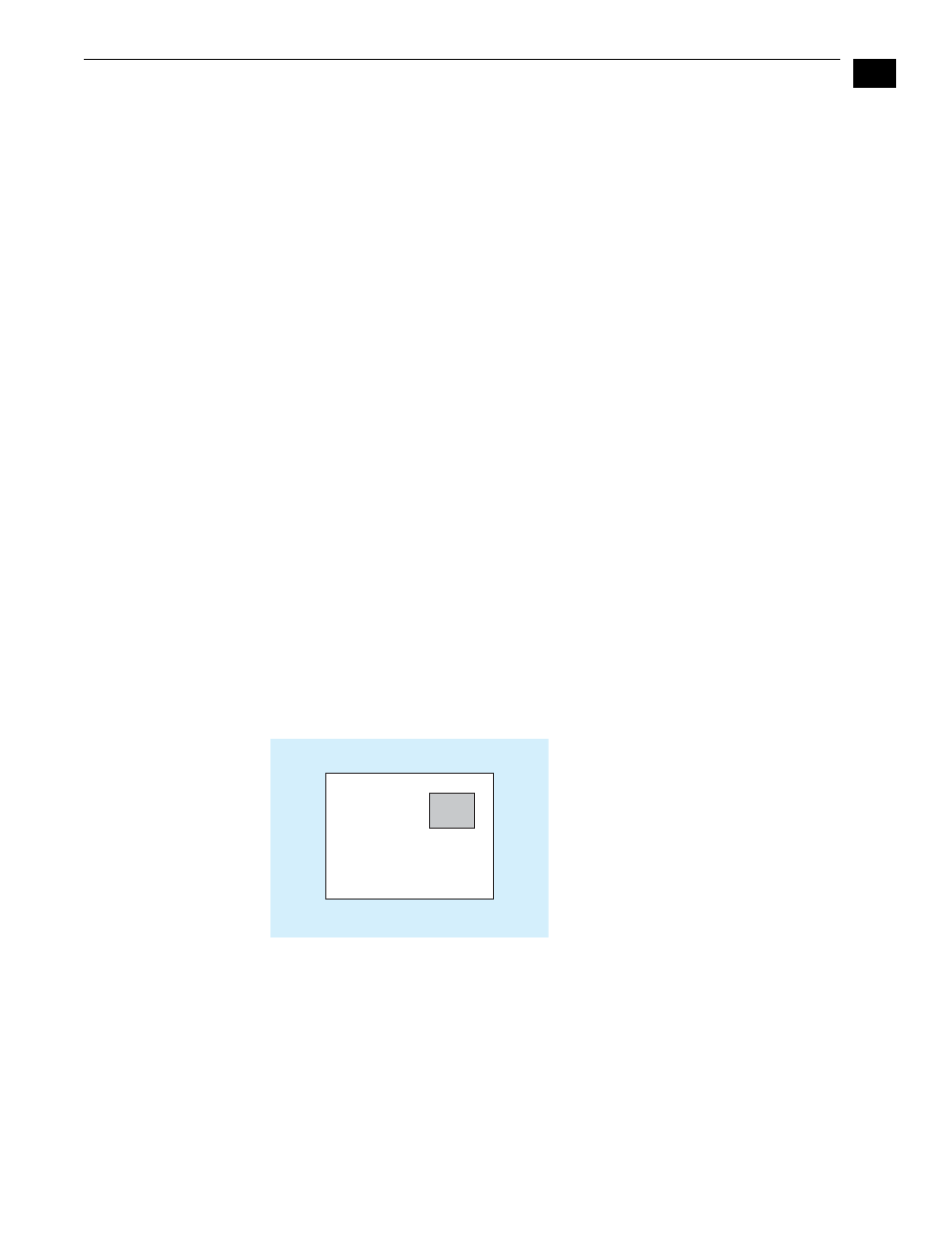

Picture Overlay The following workflow shows how to create a video box overlaying another video source.
The setup is:
• Video Processor 1 input set to SDI 1 (any format).
The parameter settings are:
• Video 1 Input set to SDI 1.
• Output Format set to 1080i59.94.
• Video Output Mode set to Normal.
• Upconvert Mode set to 4x3 Pillar.
• Custom Size/Pos set to On.
• Custom Size, Aspect, H&V Position, Left/Right/Top/Bottom Crop as preferred.
The menu operations for this workflow are:
1. Press the Video 1 button.
a. Select 1 Video 1 Input, and adjust to SDI 1.
b. Select 2 Output Format, and adjust to 1080i59.94.
c. Select 3 Video Output Mode, and adjust to Normal.
d. Select 6 Upconvert Mode, and adjust to 4x3 Pillar.
e. Select 13.0 Custom Size/Pos, and adjust to On.
f. Select 13.1 Custom Size, and adjust to10% to 200%.
g. Select 13.2 Custom Aspect, and adjust aspect ratio as preferred.
h. Select 13.3/13.4 Custom H Pos/Custom V Pos, and adjust H & V box position.
i. Select 13.5–13.8 Custom Left/Right/Top/Bottom Crop, and adjust box edges.
