Web Browser Menu Summary

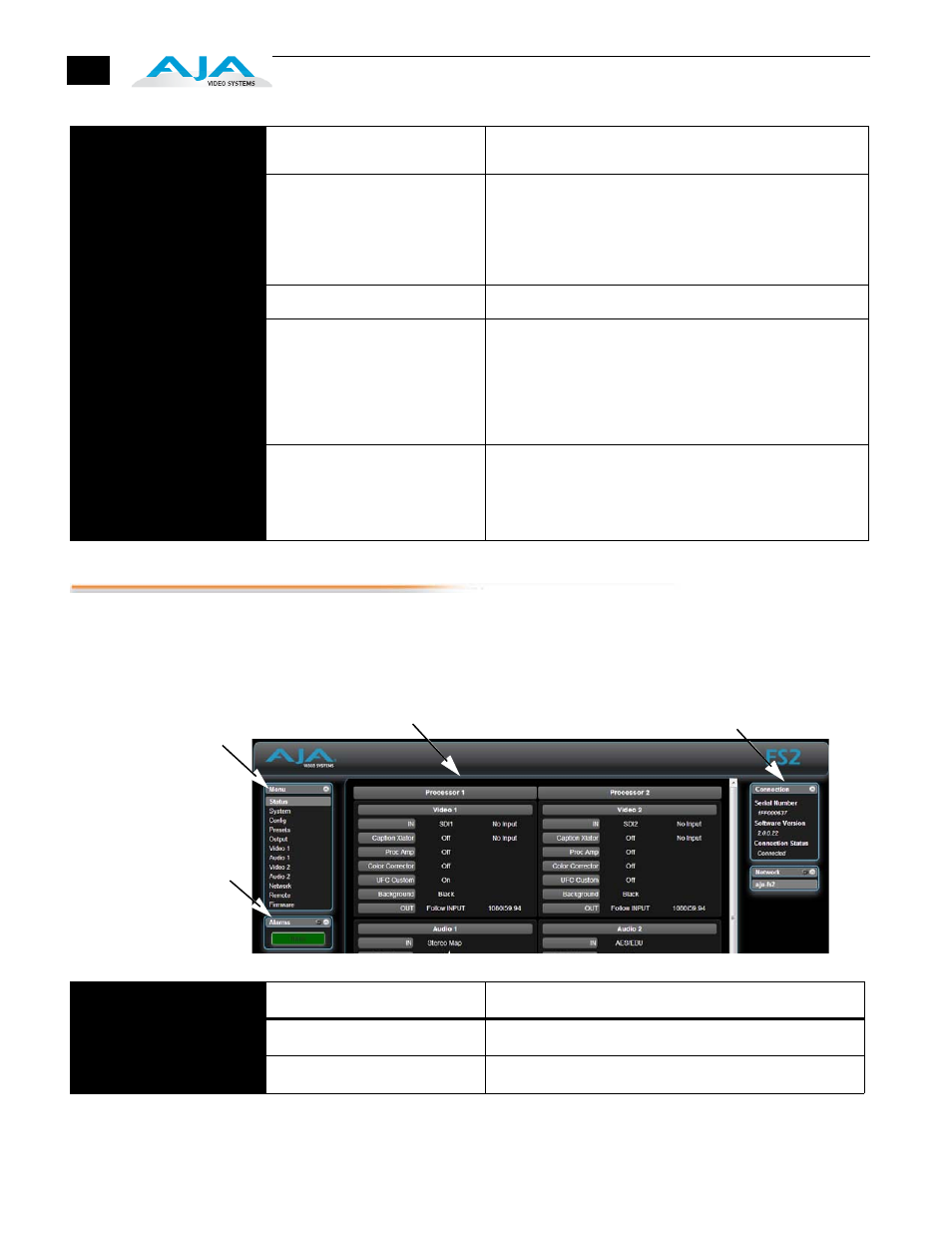

The following figure and table summarize web browser menu operation. The
settings generally correspond to the front panel display parameters, providing you
two methods of controlling the FS2. To see the equivalent front panel display
parameter number, hover the cursor over a setting.
PRESET Preset Memory Registers • Store and Recall Presets
• Factory Preset (recall all defaults)
SYSTEM Video and Audio Input and
System Settings • Video and Audio Input Format settings, including 3G input
• Genlock Reference selection; Frame Rates
• NTSC Standard, HDMI and AES sample rate conversion
• Downconversion for HD in to analog composite out
• System Defaults
• Dolby Settings
OUTPUT Output Sources • Video and Audio Output selections, including 3G output
VIDEO 1 & 2 Video Processor Inputs, Format,
Conversion Selections and
Adjustments • Input Sources, background fill, Loss of input setting
• SD input upconversion, HD input downconversion
• Aspect Ratio, Region of Interest, H and V timing
• Output Format
• Matte, Proc Amp, Color Corrector, and Legalizer settings
• AFD embedding, input scan (i or p), captioning settings
• Test Pattern selection, Freeze Output
AUDIO 1 & 2 Audio Processor Input Selection
and Adjustments
• Audio input, format, and Audio Follow Video (AFV) selections
• Audio channel and stereo mapping
• Audio level, phase, and delay adjustments
• Audio signal generator selection
• Dolby Timing
FS2 Status and Menu Display Area List of FS2 Menu Screens
Click a screen's
FS2 Alarms
System info, and FS2 Systems on the network
name to display it.
Click the gear
icon in the headng
to open the alarm menu.
The Network menu also
opens by clicking the gear.
Browser Screen Purpose Available Settings
ALARM CONFIG Alarm Configuration • Alarm control
NETWORK CONFIG Network Configuration • IP address, Subnet Mask, Default Gateway, System Name
