Installation Instructions for 23, 24, 25 Series Windscreen 2011- Present Kawasaki ZX-10R
Thank you for purchasing one of Zero Gravity’s windscreens which has been designed and manufactured to give years of safe and fun rid-
ing. This instruction manual gives you an in-depth look at the
installation process. To receive further assistance or parts please e-mail
[email protected].

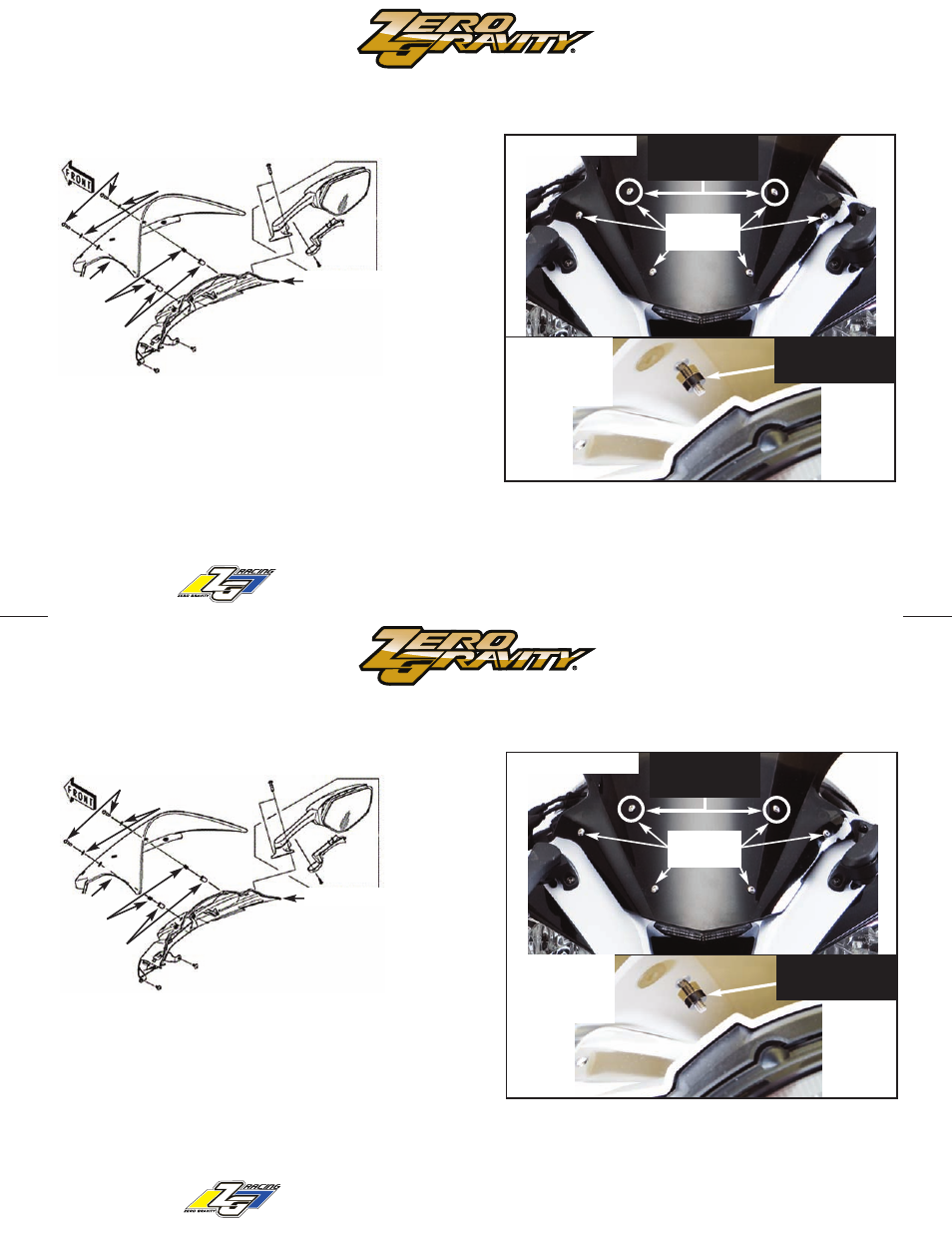

1 Spacer installed
between wellnut
and screen.
Well Nut
Locations
ZG Fasteners
Factory Washers Reuse
ZG Spacers
Factory Wellnuts
Windscreen
1. Remove the factory windscreen.
2. Before installing your new Zero
Gravity screen, locate the 2 spacers and 6
fasteners provided with your windscreen.
3. Remove the 6 factory washers and reuse them on ZG fasteners. Place
your Zero Gravity windscreen on the bike and align the windscreen
holes with the windscreen cowling holes.
4. Insert 2 of the 6 supplied ZG windscreen fastener screws into the 2
bottom holes and screw them in a few turns into the wellnuts.
5. Lift the rear edge of the screen so the screen tilts up slightly.
6. Place the 2 spacers between the windscreen and the windscreen cowl-
ing so they align with the 2 upper holes of the windscreen and the
well nut receptacle holes of the cowling. (See Well Nut Locations).
7. Insert the 2 fasteners and washers into the upper windscreen holes so
that they pass through the windscreen, spacers, and then into the well-
