4) Attach the vacuum package securely
to the forklift or other hoisting
equipment in a protected location
where the vacuum package will move
with the lifter. Note that the low
vacuum warning light must remain
visible to the lifter operator at all
times (see OPERATION: T
O
L
IFT AND
M
OVE THE
L
OAD
: Monitoring Vacuum

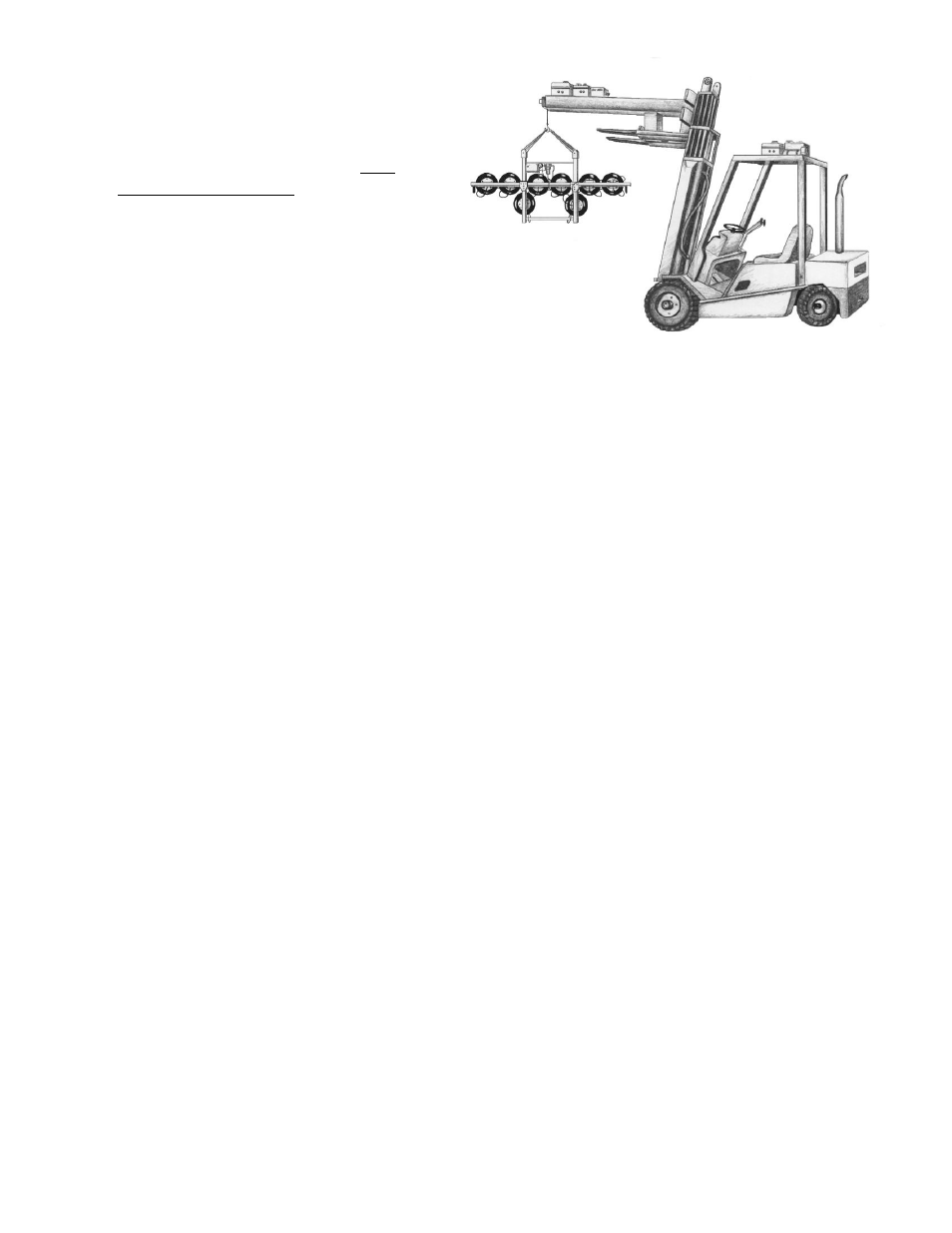

Indicators). The illustration
represents two potential mounting
locations. However, hoisting
equipment design and applicable
statutory or regulatory standards must be factored into any specific installation. Consult the
hoisting equipment manufacturer to determine how to mount the vacuum package in a safe
location that will not interfere with hoisting equipment operation.
5) Connect the vacuum line from the lifter to the vacuum package: Make certain the vacuum
line is routed so that it does not become tangled, kinked, pinched or cut while operating the
lifter or hoisting equipment. Then connect the line by pushing the male and female ends of
the quick connectors together until they lock. Now the lifter is operational.
6) Perform Operational and Load Tests for the lifter as directed in MAINTENANCE: T
ESTING
S
CHEDULE
.
location 1 -->
<-- location 2
