Rev 30.0/5-14 5 MT-FS10TDC: #35091
OPERATING FEATURES
Note: Components featured in the following instructions for assembling, operating or
maintaining the vacuum lifter are underlined on their first appearance in each section.
Note: For illustration only―Pad Spread dimensions vary.

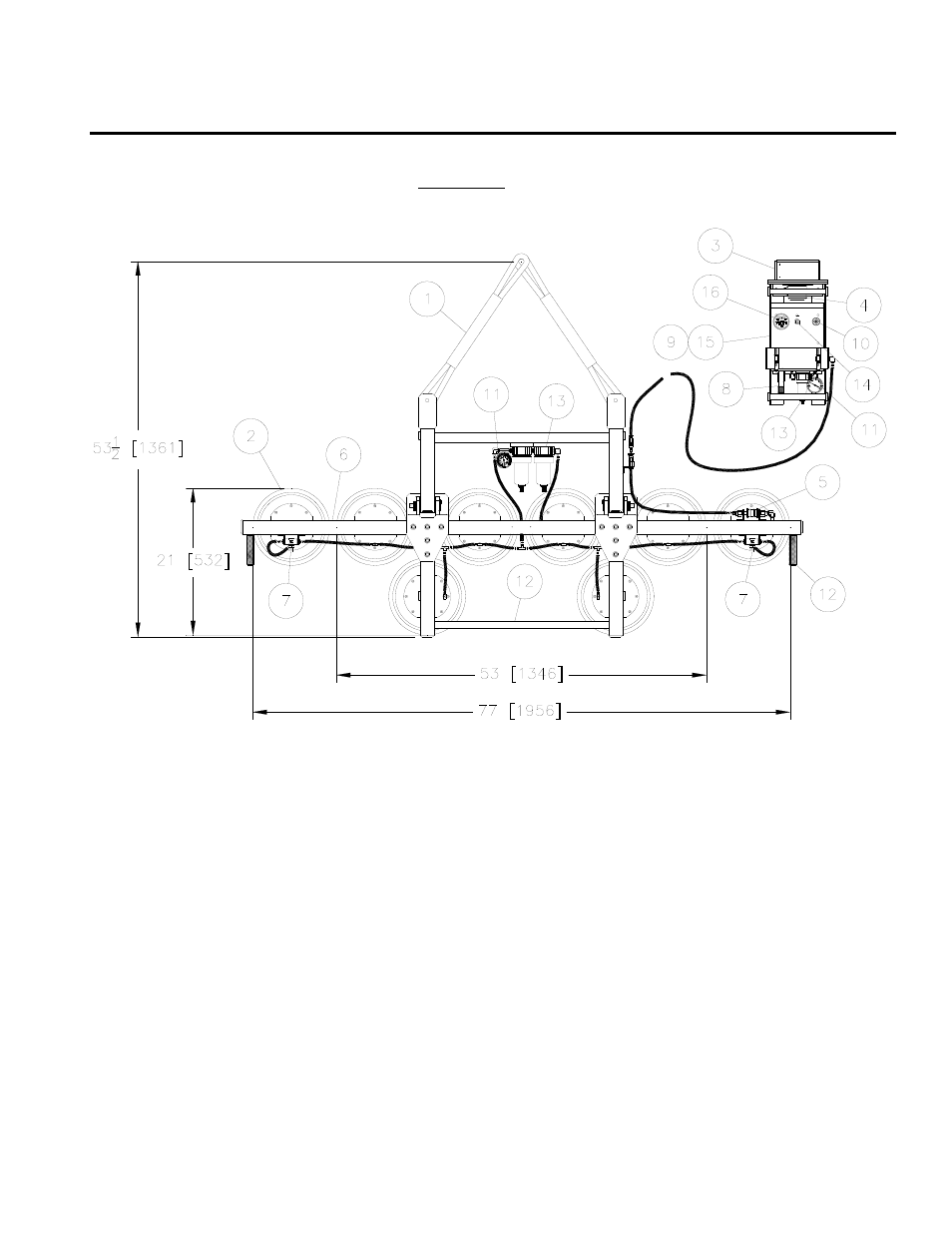

1 LIFT SLING 9 ENCLOSURE with VACUUM PUMP and
2 VACUUM PAD LOW VACUUM WARNING BUZZER (if applicable)
3 BATTERY 10 LOW VACUUM WARNING LIGHT
4 BATTERY CHARGER 11 VACUUM GAUGES
5 PAD FRAME CONTROL VALVE 12 CONTROL HANDLES
6 PAD FRAME 13 AIR FILTERS
7 PAD SHUTOFFS 14 BATTERY TEST BUTTON
8 VACUUM PACKAGE VALVE HANDLE 15 ENCLOSURE with VACUUM SWITCH
16 BATTERY GAUGE
