Wood’s Powr-Grip MR1611LDC User Manual
Page 8
Rev 30.0/5-13
6

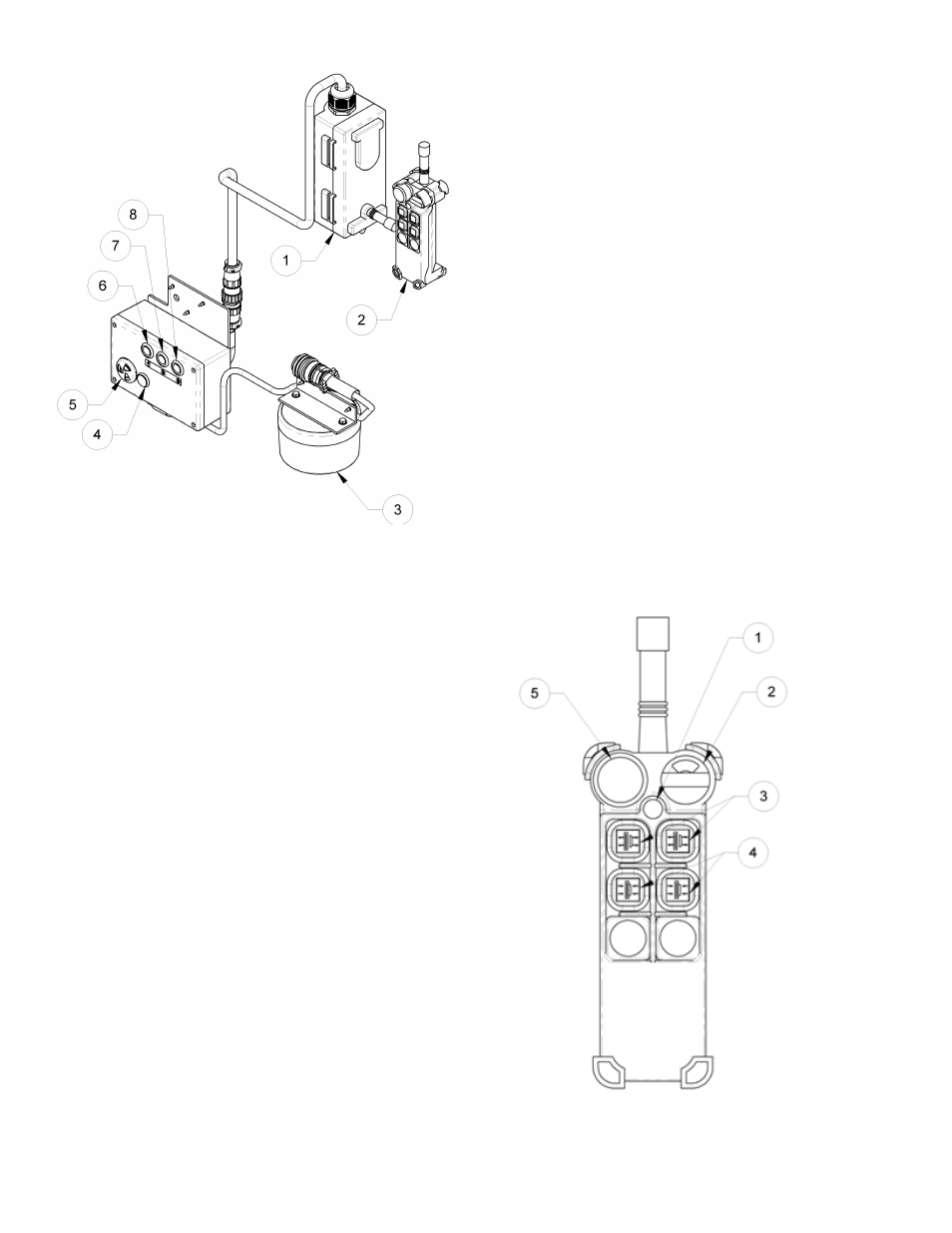

MR1611LDC: #35050
1 RADIO RECEIVER
2 RADIO TRANSMITTER
3 STROBE LIGHT
4 VACUUM LIFT LIGHT
5 LOW VACUUM WARNING BUZZER
6 ENABLE BUTTON
7 APPLY BUTTON
8 RELEASE BUTTON
1 TRANSMISSION INDICATOR LIGHT
2 TRANSMITTER POWER/ENABLE SWITCH
3 RELEASE BUTTONS
4 APPLY BUTTONS
5 EMERGENCY TRANSMITTER DISCONNECT
OPTIONAL RADIO TRANSMITTER
OPTIONAL REMOTE CONTROL SYSTEM
