Rev 30.0/5-13 10 MR1611LDC: #35050
To Install (and Remove) Removable Pad Arms
1) Insert the end of a removable pad arm in one socket on the
pad frame, so that the holes align for the cotterless hitch pin.
2) Secure the removable pad arm in the pad frame by pushing a
cotterless hitch pin through the holes until the retaining ball
emerges on the far side of the pad frame socket.
3) Remove the end of the quick connector from the spring clip on the pad arm. Push the male
and female ends of the quick connector together until they lock.
4) Repeat steps 1-3 to install each pad arm required for the pad frame configuration desired.
5) To remove the removable pad arms, reverse this procedure. Move the release ring on the
female end of the quick connector away from the male end to separate the ends. Store
removed pad arms in a clean, dry location to protect them from environmental exposure.
To Rotate Rotating Pad Arms
1) Remove the 4 bolts that secure each rotating pad arm on the pad frame.
2) Rotate the arm 90° and reinstall the bolts.
3) Repeat steps 1-2 to rotate each pad arm as required for the pad frame configuration desired.

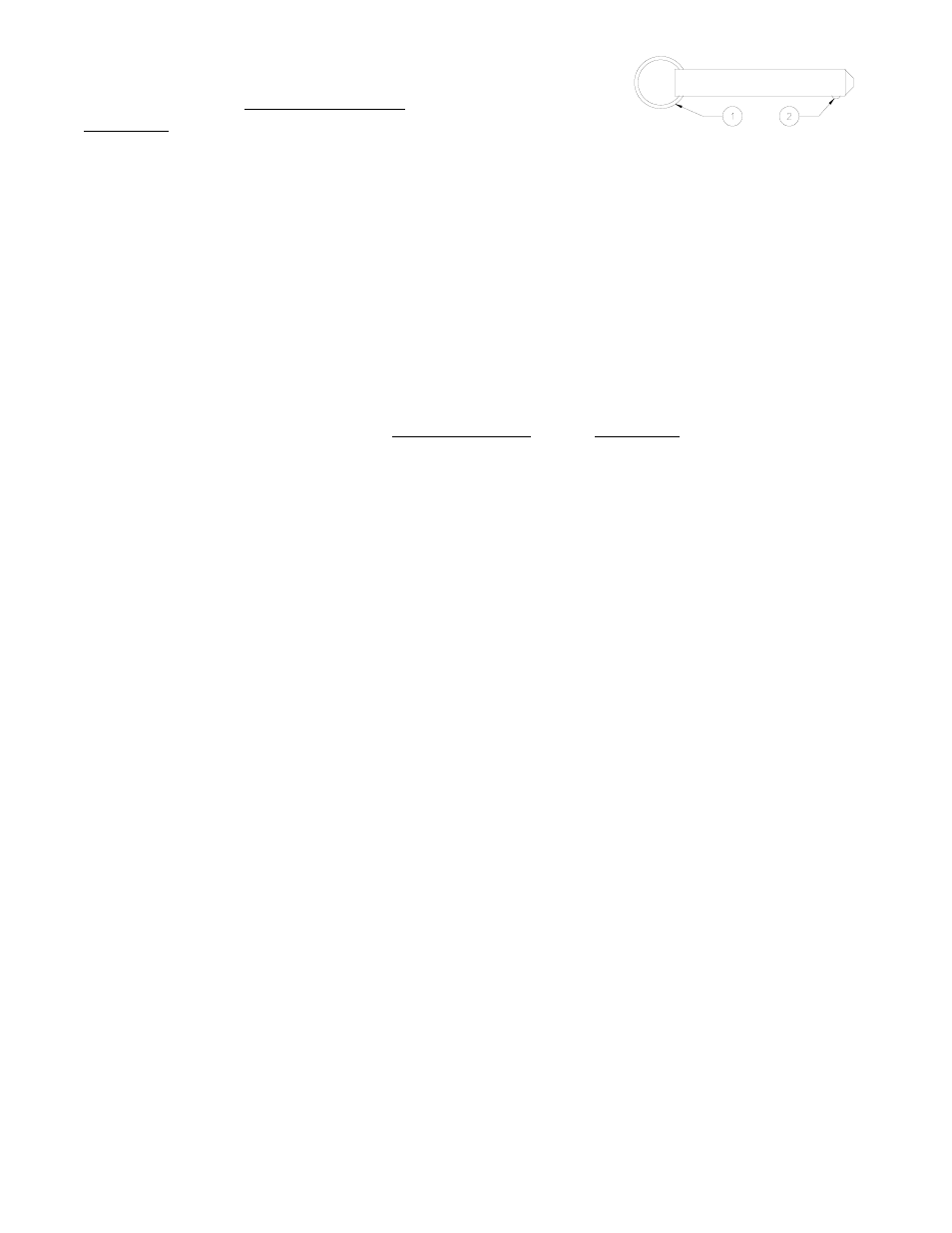

COTTERLESS HITCH PIN
1 PULL RING
2 RETAINING BALL
