Operating features – Wood’s Powr-Grip MR1611LDC User Manual
Page 7
Rev 30.0/5-13
5
MR1611LDC: #35050

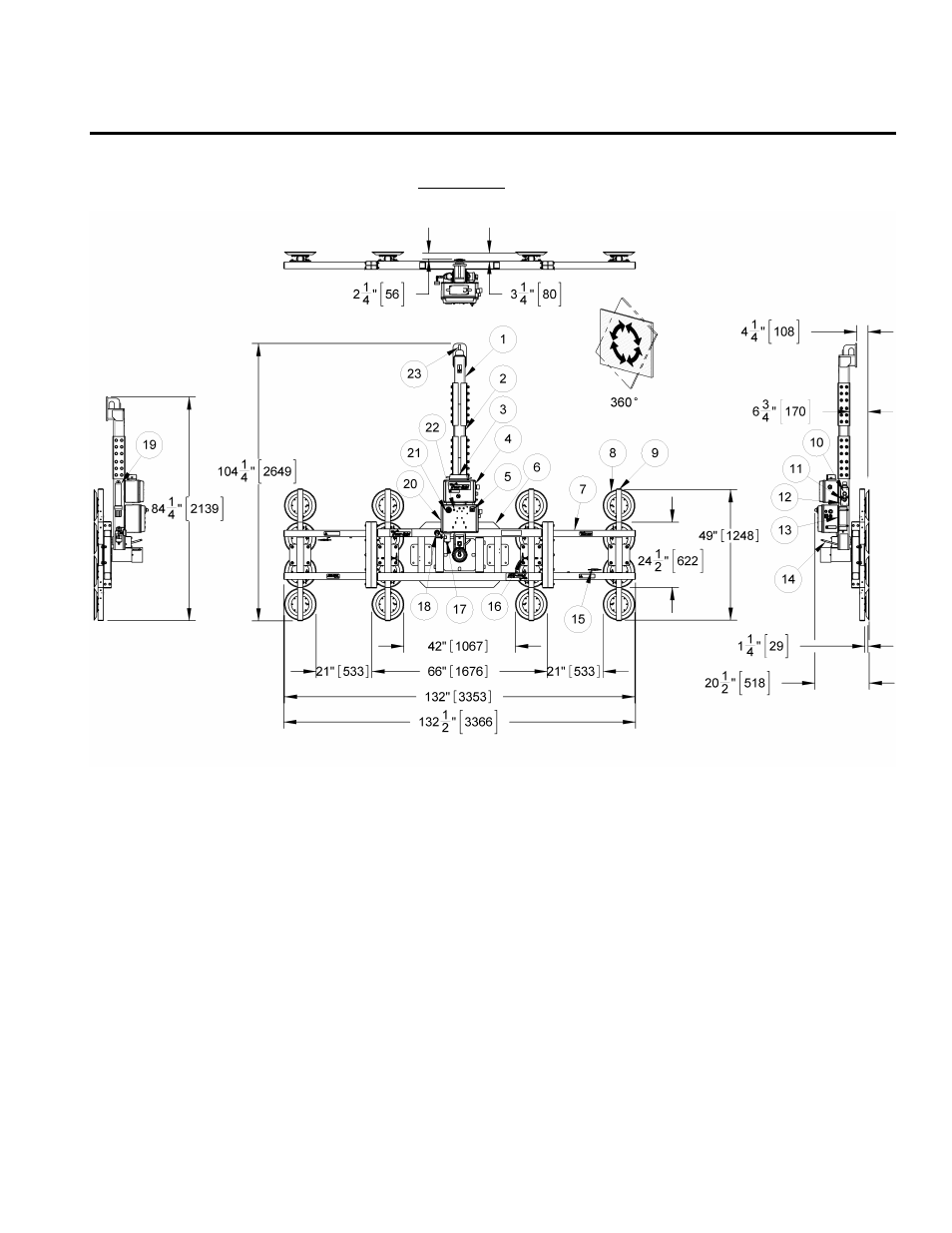

OPERATING FEATURES
Note: Components featured in the following instructions for assembling, operating or
maintaining the vacuum lifter are underlined on their first appearance in each section.
Standard MR1611LDC shown.
1 LIFT BAR
13 VACUUM RESERVE TANK
2 LIFT BAR EXTENSION
14 ROTATION RELEASE LEVER
3 BATTERY CHARGER
15 QUICK CONNECTOR
4 BATTERY ENCLOSURE
16 ROTATING PAD ARM
5 POWER SWITCH
17 AIR FILTER
6 CENTER SECTION of PAD FRAME
18 VACUUM GAUGE
7 REMOVABLE SECTION of PAD FRAME
19 INSTRUCTION CANISTER
8 VACUUM PAD
20 Enclosure with VACUUM PUMP(S)
9 REMOVABLE PAD ARM
and VACUUM SWITCH
10 VACUUM LIFT LIGHT
21 BATTERY GAUGE
11 APPLY/RELEASE SWITCH
22 BATTERY TEST BUTTON
12 MOVABLE CONTROL PENDANT
23 LIFT BAIL
