Replacing Filters — Filters can be removed and in-
stalled from either side of the unit. Install new filters in units
that have one fan as follows:
1. Remove the side access panel (retain screws).
2. Remove the filter retainer clip (see Fig. 24).
3. Remove old filters by lifting and tilting them out of the
filter track. See Fig. 14 and 25.
4. Reverse the procedure to install new filters.
To install new filters in larger units that have 2 fans, follow the
preceding steps, but use the factory-supplied filter hook to slide
filters within reach for removal. The filter hook is shipped in-
side the unit in the filter track.

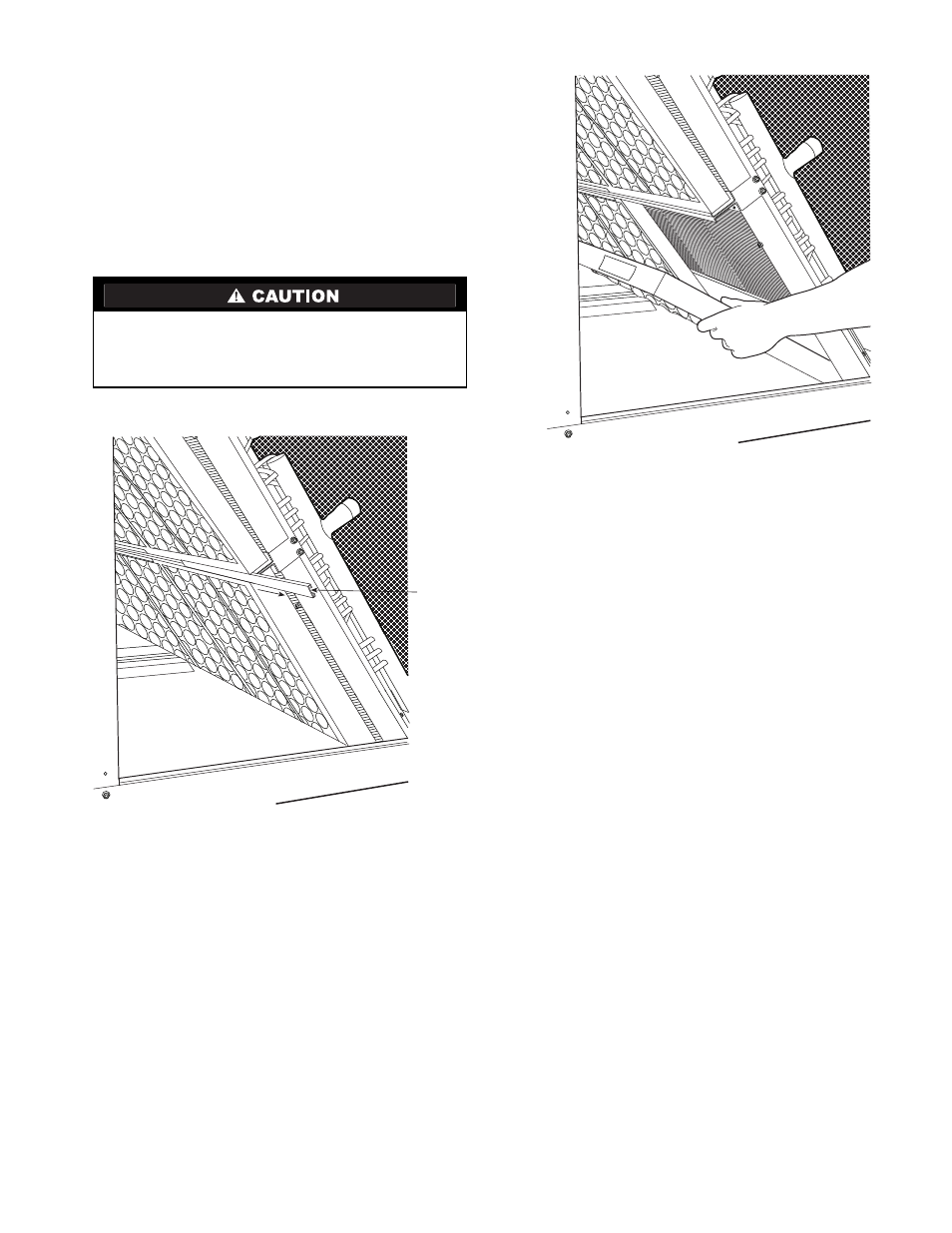

Fig. 24 — Remove Filter Retainer Clip
Fig. 25 — Filter Removal/Replacement
UNIT OPERATION HAZARD
Failure to follow this caution could cause equipment
damage.
Do not operate unit without air filters.
FILTER
RETAINE
CLIP
SLIDE
