3 Wiring Instructions
Introduction
The crossover is encapsulated in a sealed, non-accessible chamber in the
bottom of the speaker cabinet, to minimize the effect of vibration on the
components. The ISIS is equipped with high-quality binding posts for
connecting the speaker cables. Spade lugs are recommended for cable
terminations.
Connecting the Speaker to the Amplifier
1. Place the speaker in its approximate location, then lay the speaker on its
side, using a soft surface to avoid scratching the finish.
2. Connect the speaker wires to the binding posts on the speaker back (see
Figure 3.1). Check to insure the correct polarity (positive lead connected to
the (+) terminal and negative lead connected to the (-) terminal.
Do NOT over-tighten the screws.

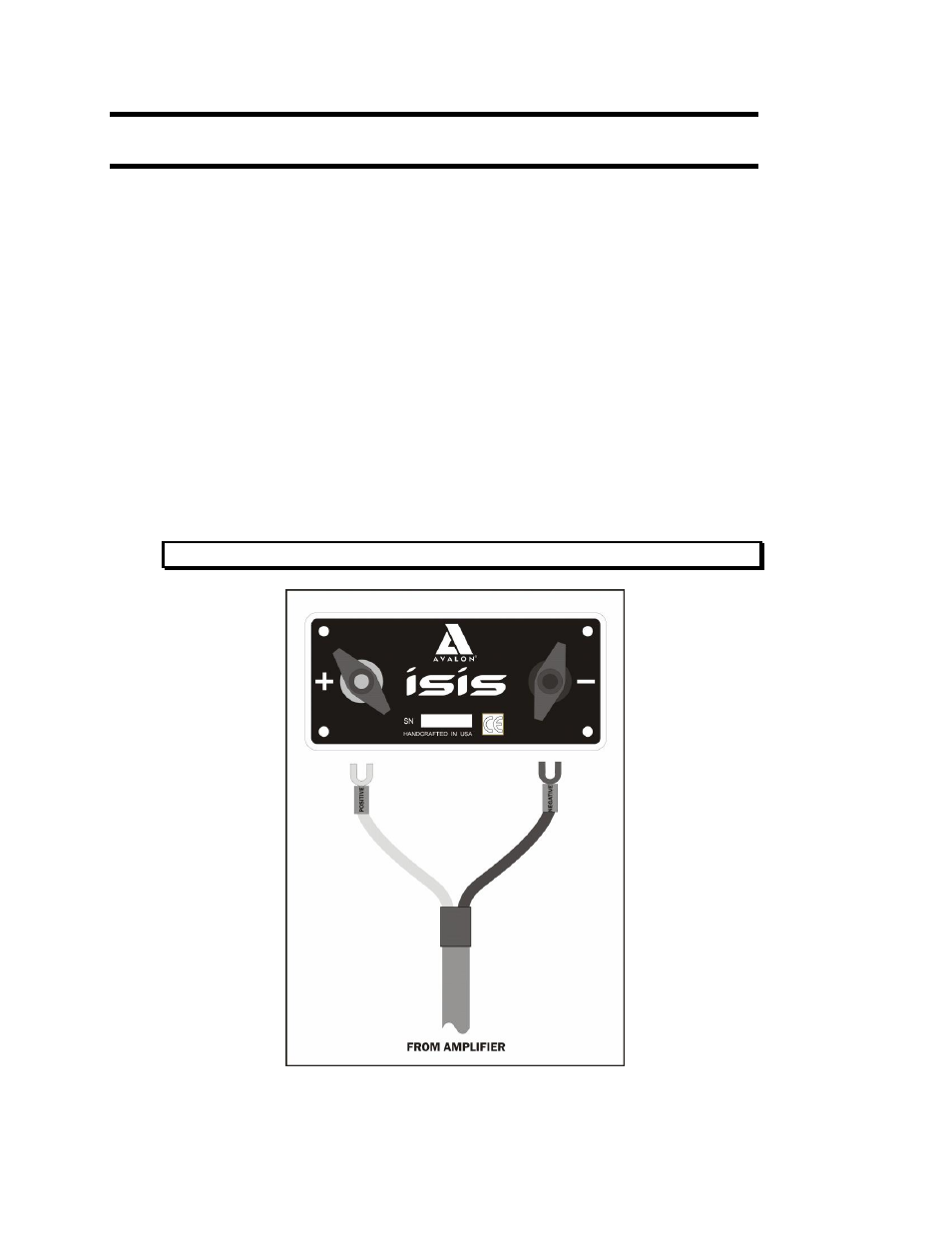

Figure 3.1 - Back view of the speakers showing the
connections from the amplifier to the loudspeaker. Check to
insure the correct polarity (positive lead connected to the (+)
terminal and negative lead connected to the (-) terminal).
