DMXPathfinder - Hardware
possible DMX signals on the I/O bus will be routed first to another opto-isolator, and
then to the station line driver.

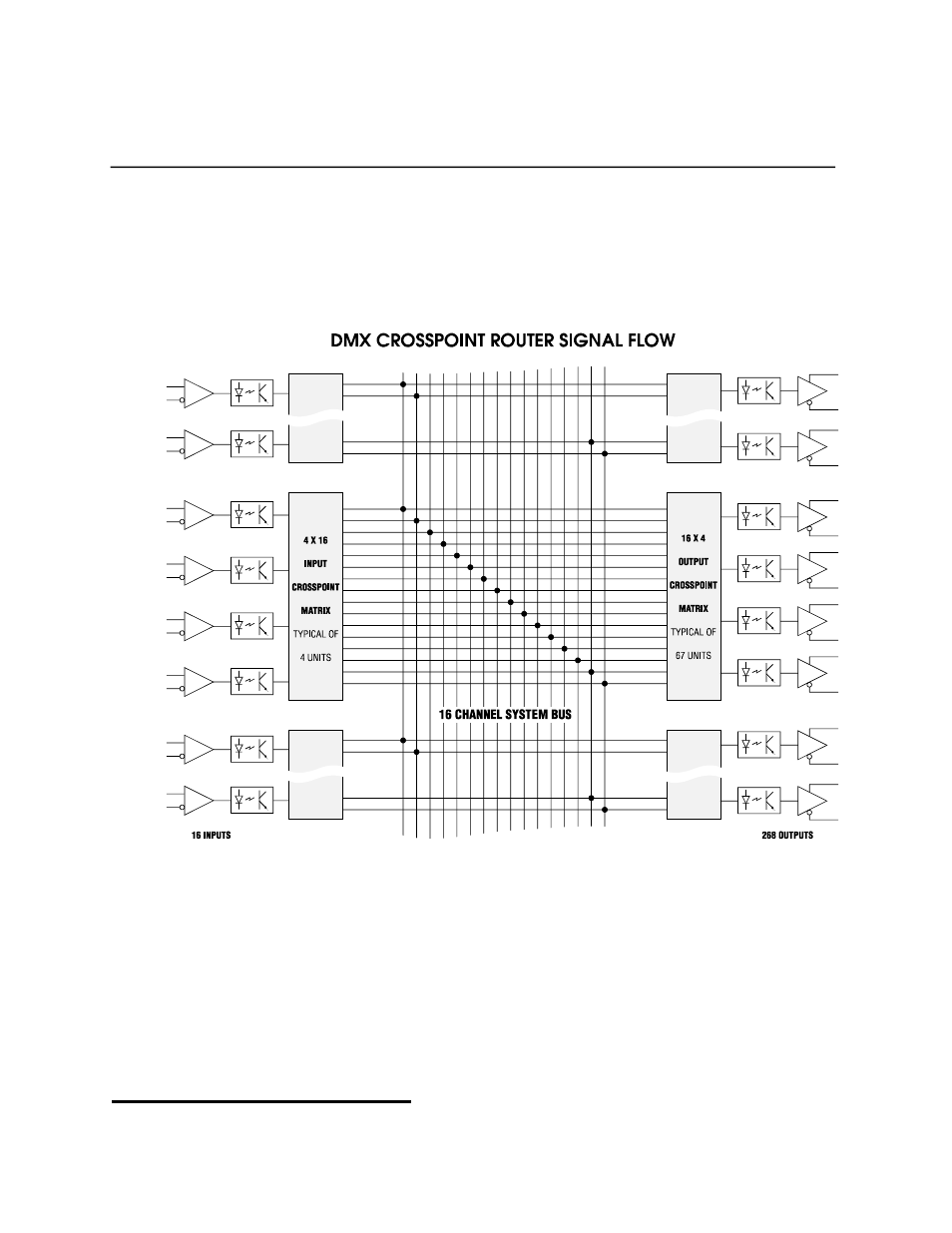

Figure 3-1: Simplified DMXPathfinder Signal Flow
(Example CBC Toronto Studio 42)
3.2 MODULE
DESCRIPTION
