Installation – Hawk Industries Spinner Manual 550 HYDRAULIC Serial Numbers 206 to 591 User Manual
Page 10

10
Installation
SC
SH
SH
S

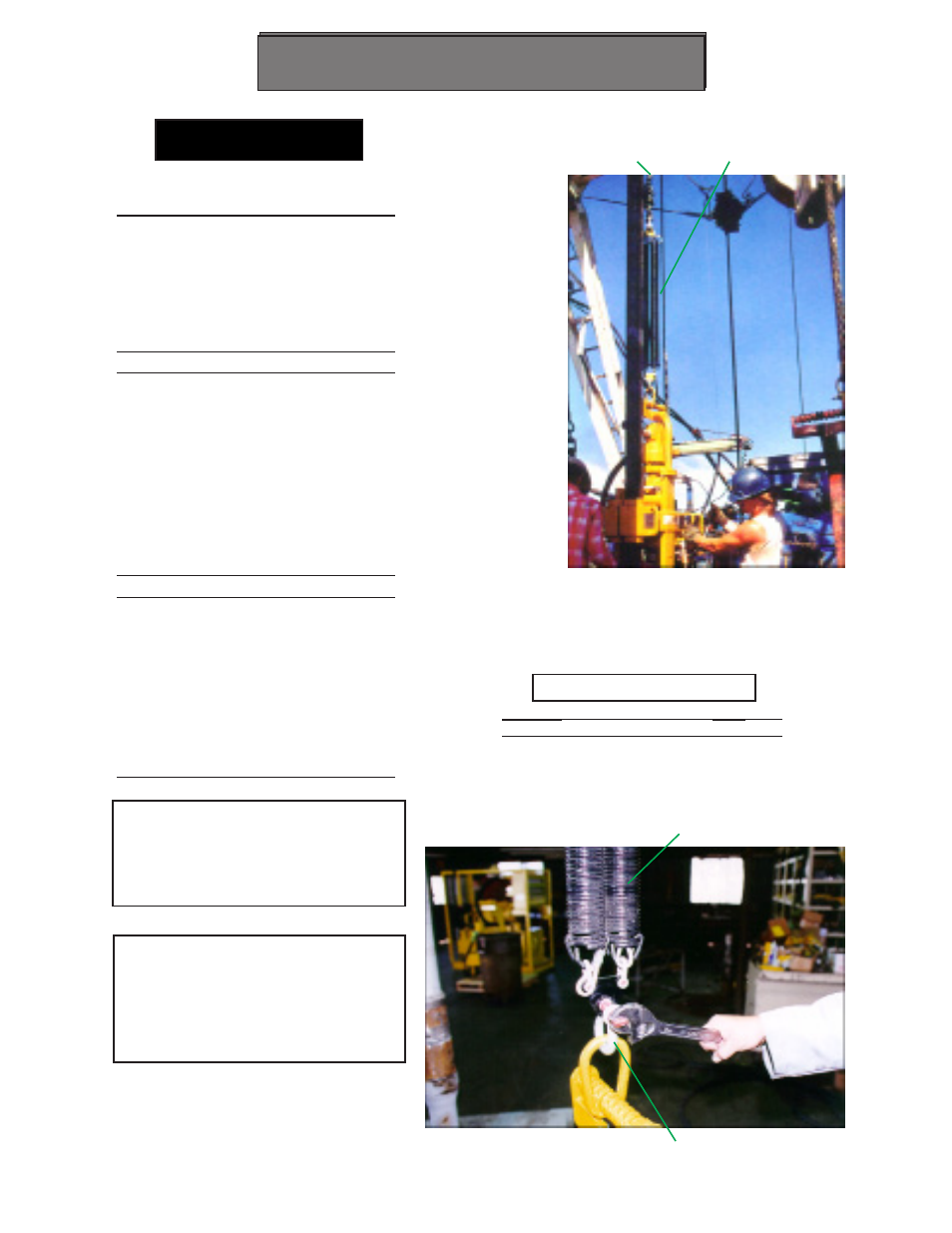

1. Connect the Spring Hanger
(SH) to at least a 3/8"diameter
Steel Cable (SC) suspended
from a high point (as near the
crown as possible) in the der-
rick no more than 5 ft. from the
center of the Rotary Table.
2. Connect the lower end of the
spring hanger (SH) to the Spin-
master as shown. Make sure
the shackles (S) are tightened
securely. Make sure that the
Spinmaster hangs in the derrick
at a level that assures no contact
with any part of the stabbed tool
joint (including the upset) when
gripped on tube.
3. Hook a backup line to the rear
of the Spinmaster securing the
other end to the derrick. Make
sure the backup line is horizon-
tal and leaves little slack when
the Spinmaster is gripped on the
pipe so that no kick-back can
occur when changing spinner
motor directions.
Suspension
Caution
Hooking up the back-up line on an
angle not level with the spinner can
cause damage to the spinner case.
Part Name
Part #
Spring Hanger Assy. (SH)
002-50274
Part Numbers
Warning
Failure to properly hook up back-
up line could cause bodily injury.
Installation
