Required Equipment T o perform all the steps in this tour , you must have the following
equipment:
4396B Network/Spectrum Analyzer
Measurement Device:
This tour assumes the device under test (DUT) is a 70 MHz
bandpass lter
THRU (BNC female-to-female connector)
Two BNC cables
T est Set (use either of the following)
Transmission/Re
ection (T/R) T est Set
Two N-to-BNC adapters
S-P arameter T est Set
Two APC7-to-N adapters
Two N-to-BNC adapters
HP DeskJet Printer
*
P arallel Interface Cable
*
* If you do not have an DeskJet printer and cable , skip step 5,
\Printing Out the Measurement Results".

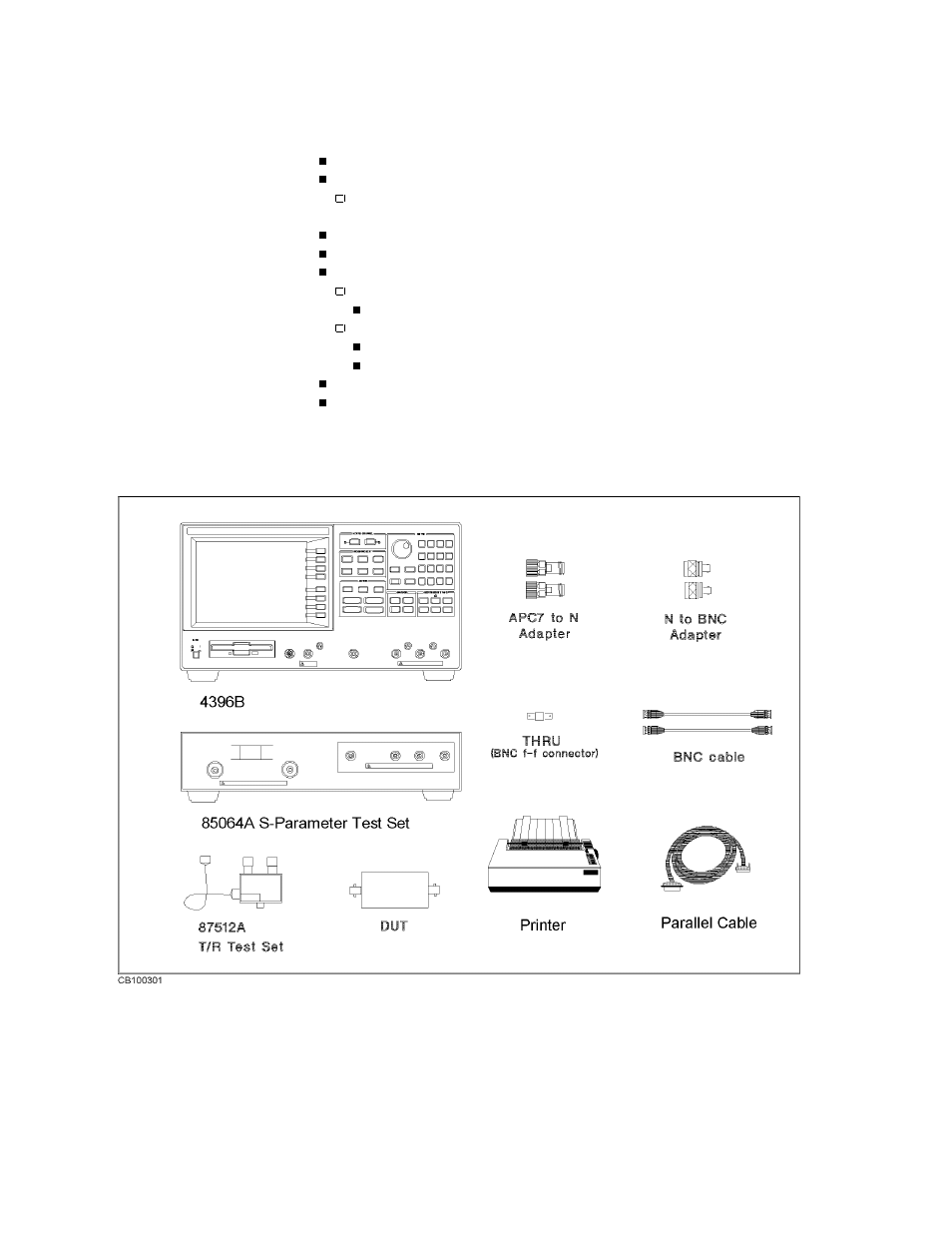

Figure 3-1. Required Equipment
3-2 Network Analyzer T our
