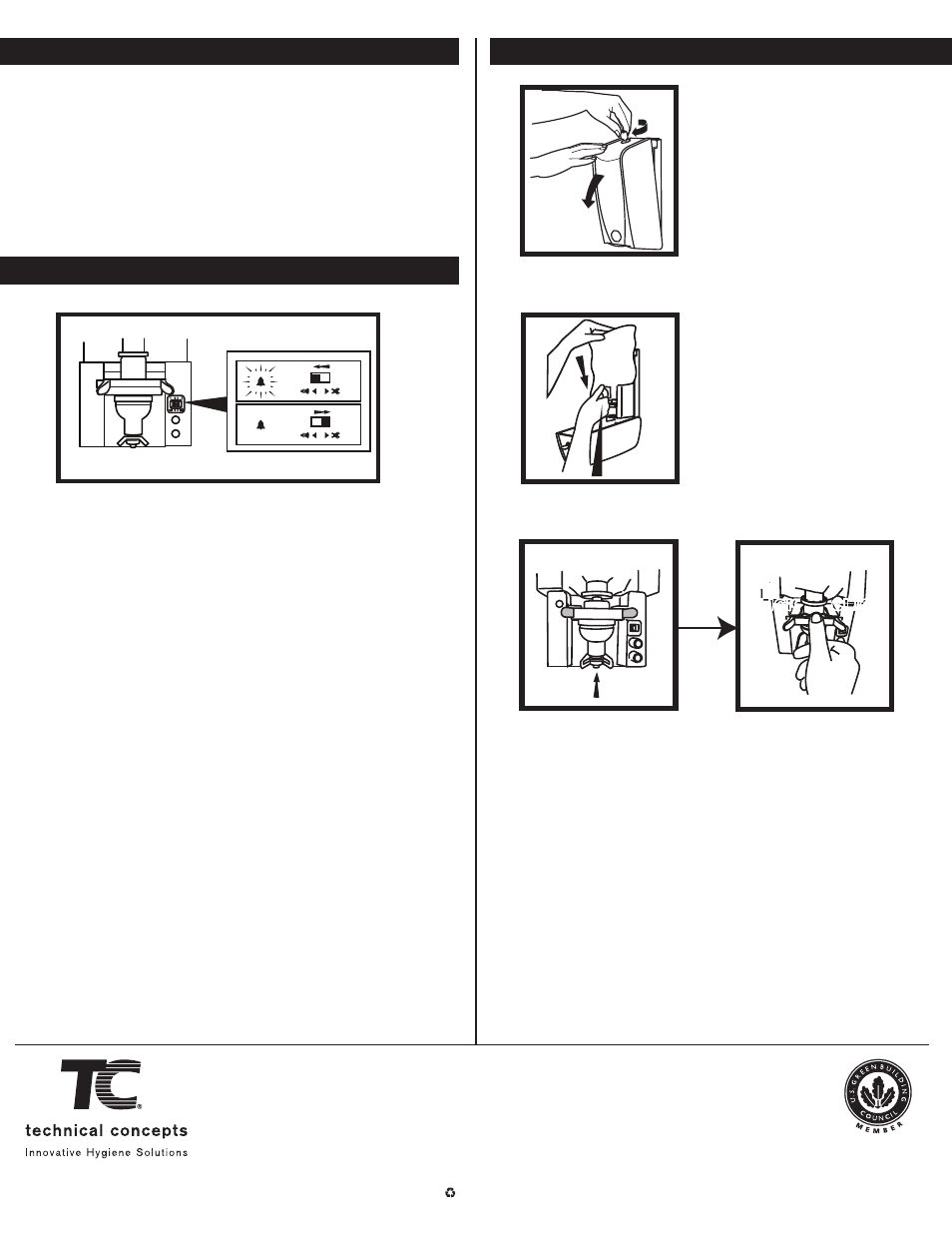

Dispenser Activation
LED/Tone Indicatiors
Refill Insertion
1
2
1
2
3
4
Open dispenser cover with a
dispenser cabinet key.
Close dispenser cover.
5
Test for proper operation, by dispensing soap into hand.
Snap the pouch fitment into the U-shaped bracket
insuring the nozzle fits into actuator lever. The pouch
fitment will snap into place once both brackets have snapped
over the fitment.
You will hear a long beep once the refill is properly
installed.
Remove the refill pouch from
the packaging box. Place the
refill pouch with the nozzle
pointing down into the pouch
holder. Remove and discard the
nozzle cap.
E000538 Rev 03
To activate dispenser, place hand under bottom of dispenser. If a
second dose is needed, remove hand, and then replace hand under
dispenser (when an object comes within 4 inches of the sensing
window the dispenser will activate).
The dispenser cover must be closed to activate.
Tone switch:
When switch is set to ON position there will be one beep.
When switch is set to OFF position there will be two beeps.
Note: Top “1-2” switch is not functional.
LED Indicators and Tone (IR sensor error indications):
Refill
After 2,650 doses a red LED flashes twice every 2 seconds along
with two beeps every 8 seconds indicating the refill needs to be
replaced. Be careful to not remove or dislodge the refill while
modifying any settings, as the dosing program will reset.
Batteries
When the batteries are low a yellow LED flashes once every 2
seconds, along with one beep every 16 seconds. 4 C-cell alkaline
batteries will last 120,000 hand washes or 3 years, whichever
comes first.
Object in Sensor Range (within 4 inches of sensor):
Refill in dispenser - If an object is in the sensor range more than
10 seconds then the green LED will flash once every second, one
beep every 1/2 second. Remove object and unit will operate
normally.
No refill in dispenser – If an object is in the sensor range then
the green LED blinks once every second and beeps every 1/2
second continuously as long as object remains in sensing range.
CLICK CLICK CLICK CLICK
NOTE: The dispenser and dose program resets
automatically each time a refill is installed. Sensor lens
should be cleaned after the refill is replaced.
