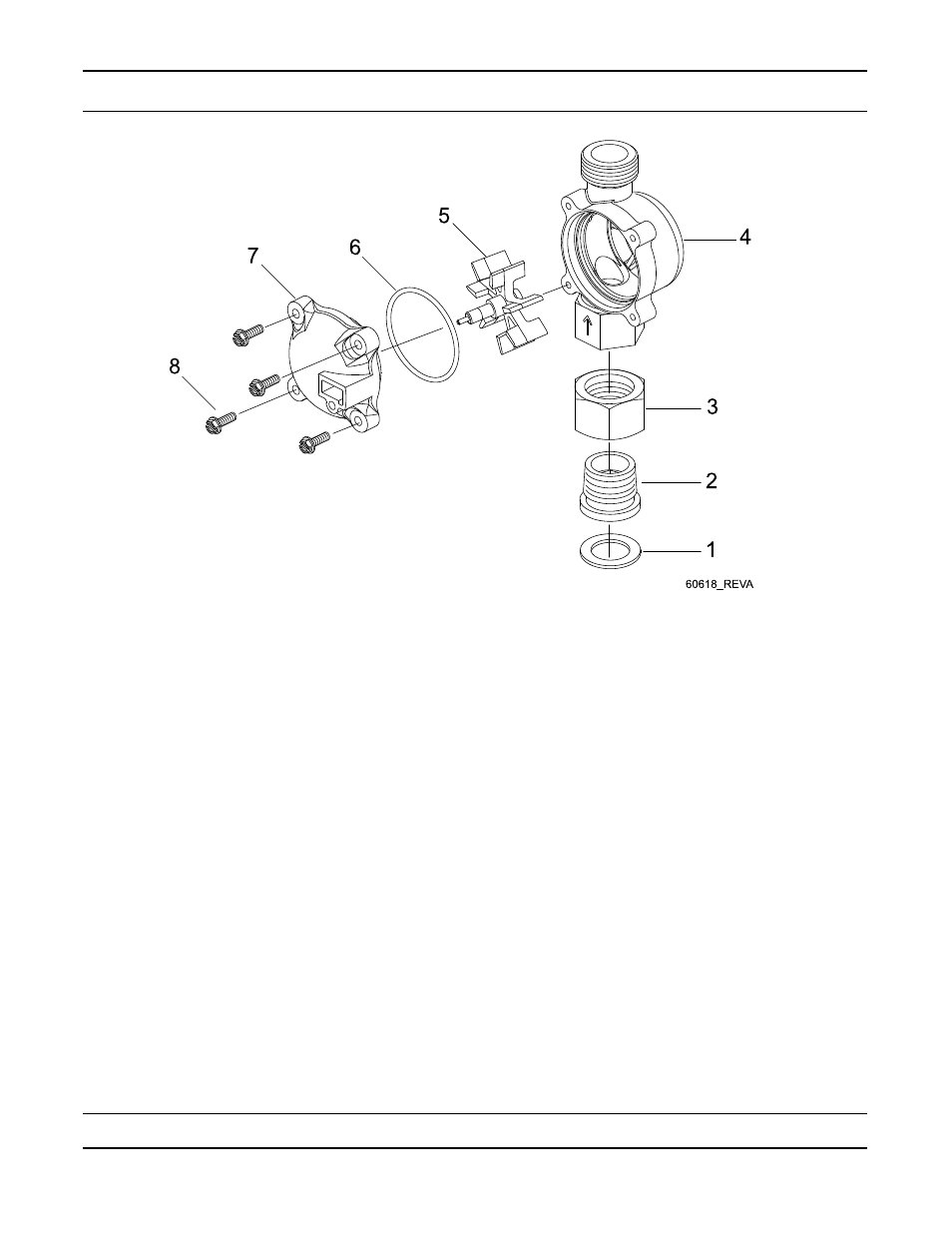

3/4” Brass Paddle Meter Assembly
Item No. Quantity Part No. Description
. 1.................... 1..................... 11206.......................
Gasket, Fitting
. 2.................... 1..................... 13942.......................
Retainer, Nut
. 3.................... 1..................... 11207.......................
Nut, Special, QC
. 4.................... 1..................... 13906.......................
Body, Meter, 3/4”
. 5.................... 1..................... 13509.......................
Impeller, Meter
13509-01..................Impeller, Celcon
. 6.................... 1..................... 13847.......................
O-ring, -137 Std/560CD, Meter
. 7.................... 1..................... 14716.......................
Meter Cap Assy, ET/NT
. 8.................... 1..................... 12473.......................
Screw, Hex Wsh, 10-24 x 5/8
Not Shown........................... 19121-08..................Meter Cable Assy, NT, 35” w/Connector
19121-09..................Meter Cable Assy, NT, 99.5” w/Connector
19121-10..................Meter Cable Assy, NT, 303.5” w/Connector
.
For Assembly Numbers, See the Back of this Manual
